Adaptor Plate 012
Installation & Operation Manual
Introduction

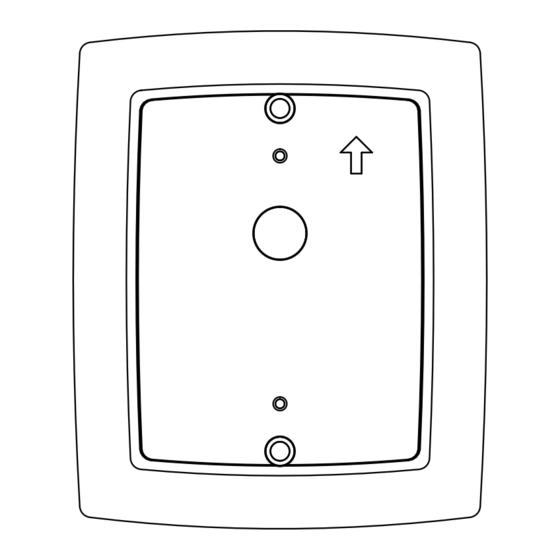

The Adaptor Plate 012 covers the paint
ring left behind when replacing other
thermostats, so that no patching or painting
the wall is required. The 012 also allows
a thermostat to be installed onto a single
gang electrical box. The 012 package
includes screws for mounting the adaptor
plate and the device that attaches to it.
A Watts Water Technologies Company
Features
•
Covers the paint ring left when
replacing common round
thermostats
•
Compatible with the following
tekmar products:
518, 519
1 of 4
012 _ D
Accessories
Replaces: New
© 2013
012_D - 03/13
03/13
