TR 252
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORTON clipper TR 252 and is the answer not in the manual?

Questions and answers

Summary of Contents for SAINT-GOBAIN NORTON clipper TR 252

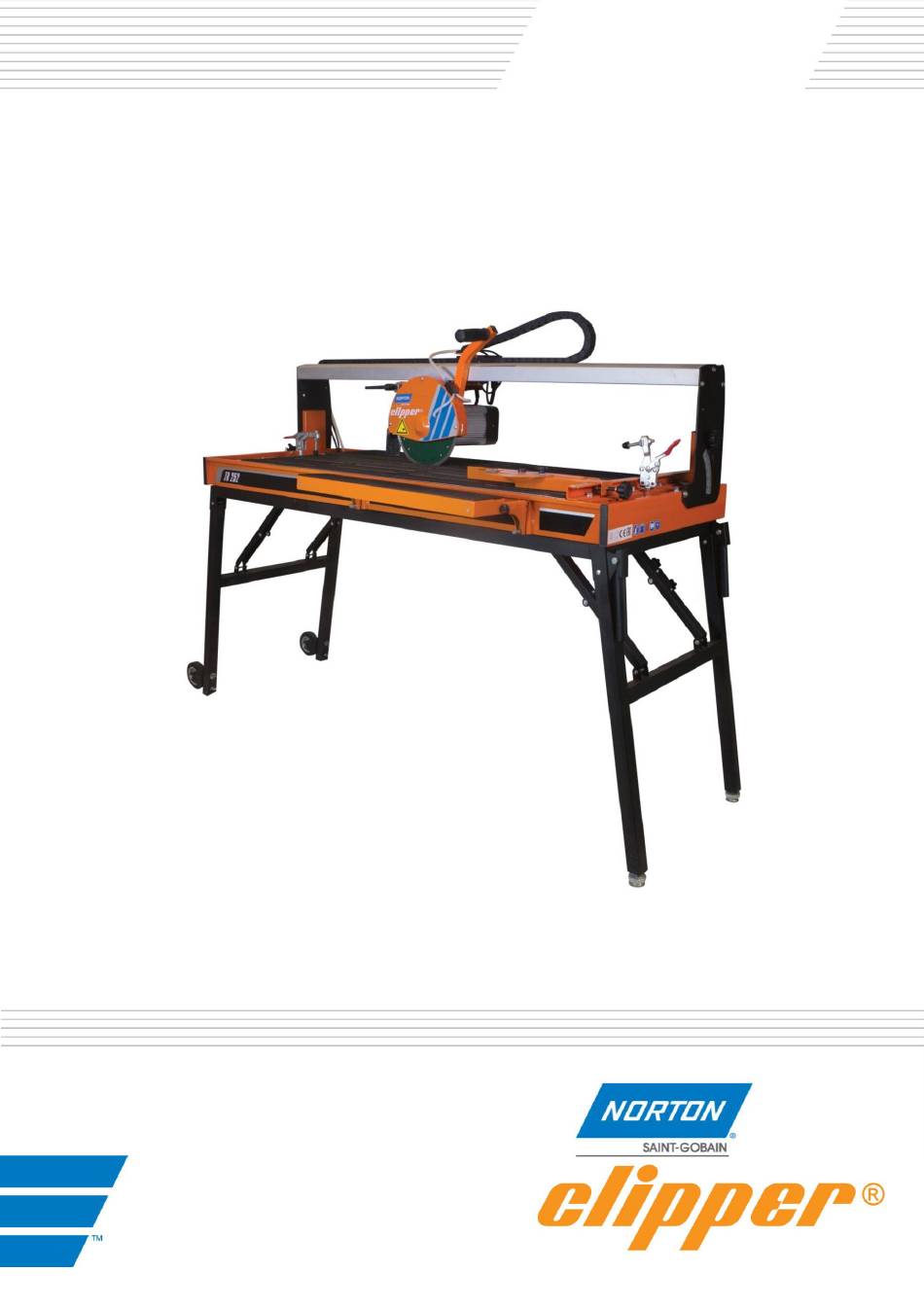

  • Page 1 TR 252 OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS. 2017.06.14 TR 252_MAN_EN...
  • Page 3 Valid for machines as of serial number: 1701xxxxxxx Storage site for the technical documents : Saint-Gobain Abrasives 190, Bd. J. F. Kennedy 4930 BASCHARAGE, LUXEMBOURG This declaration of conformity loses its validity when the product is converted or modified without agreement.
  • Page 4 VERS. 2017.06.14 TR 252_MAN_EN...
  • Page 5: Table Of Contents

    VERS. 2017.06.14 TR 252_MAN_EN TR 252 : OPERATING INSTRUCTIONS TABLE OF CONTENTS 1 BASIC SAFETY INSTRUCTIONS 1.1 Symbols 1.2 Machine plate 1.3 Safety instructions for particular operating phases 2 MACHINE DESCRIPTION 2.1 Short description 2.2 Purpose of use 2.3 Layout 2.4 Technical Data 2.5 Statement regarding the vibration emission 2.6 Statement regarding noise emission...
  • Page 6: Basic Safety Instructions

    VERS. 2017.06.14 TR 252_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The TR 252 is exclusively designed for the cutting of tiles with NORTON diamond disks mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations. The manufacturer shall not be held responsible for any resulting damage.
  • Page 7: Safety Instructions For Particular Operating Phases

    VERS. 2017.06.14 TR 252_MAN_EN 1.3 Safety instructions for particular operating phases Before commencing work  Before commencing work, make yourself familiar with the working environment at the place of use. The working environment includes: obstacles in the area of work and manoeuvre, the firmness of the floor, necessary protection at the site relating to public thoroughfares and the availability of help in the event of accidents.
  • Page 8: Machine Description

    2 MACHINE DESCRIPTION Any modification, which could lead to a change in the original characteristics of the machine, may be done only by Saint-Gobain Abrasives who shall confirm that the machine is still in conformity with the safety regulations. 2.1 Short description The TR 252 Saw is designed for durability and high performance for onsite wet cutting operations of a wide range of tiles.
  • Page 9 VERS. 2017.06.14 TR 252_MAN_EN Frame (1) The frame is made of aluminium and steel to ensure robustness and durability. The folding stand with 4 legs ensures stability while cutting. The head is pendular for passing cuts. Cutting head (2) Aluminium console guided with precision. This console supports the electric motor, the guides and the blade guard.
  • Page 10: Technical Data

    VERS. 2017.06.14 TR 252_MAN_EN 2.4 Technical Data TR 252 701846 94289 Item number Electric motor 1.5 kW Supply voltage 230 V 230V, 50 Hz, IP54 Rating protection Blade diameter 250 mm 25.4 mm Bore −1 Rotation speed of the blade 2950 min Maximum clearance between table and blade 80 mm...
  • Page 11: Statement Regarding The Vibration Emission

    VERS. 2017.06.14 TR 252_MAN_EN 2.5 Statement regarding the vibration emission Declared value of vibration emission following EN 12096. Machine Measured value of vibration Uncertainty K Tool used Model / code emission at m/s Model / code 70184694289 <2.5 Clipper Super Gres XT ...
  • Page 12: Statement Regarding Noise Emission

    VERS. 2017.06.14 TR 252_MAN_EN 2.6 Statement regarding noise emission Declared value of noise emission following EN ISO 11201 and NF EN ISO 3744. Sound Uncertainty K Sound power Uncertainty K Machine Pressure level (Sound level (Sound power level Model / code Pressure level EN ISO 11201 NF EN ISO 3744...
  • Page 13: Assembly And Commissioning

    VERS. 2017.06.14 TR 252_MAN_EN 3 ASSEMBLY AND COMMISSIONING The TR 252 is delivered fully equipped. It is ready for operation after assembly of the diamond blade and after connection to the appropriate power supply. 3.1 Assembly of the legs  Lift up one side of the saw and unfold the legs without wheels.
  • Page 14: Assembly Of The Cooling System

    VERS. 2017.06.14 TR 252_MAN_EN  To be able to use your machine, you must release the head of cut. For that unscrew the knurled button which maintains the head on the right amount during transport. 3.3 Assembly of the cooling system ...
  • Page 15: Transport Wheels

    VERS. 2017.06.14 TR 252_MAN_EN 3.4 Transport wheels  To be able to move your machine easily, assemble the wheels to the bottom of the feet located on the side opposite of the handles, using the screws butterflies. 3.5 Longitudinal guide assembly Insert 2 threaded and pined shafts Rotate both shafts by 90°...
  • Page 16: Side Extension Assembly

    VERS. 2017.06.14 TR 252_MAN_EN 3.6 Side extension assembly Insert both pined shafts Rotate both shafts by 90° to lock side extension 3.7 Installation of the handle for the cut in angle...
  • Page 17: Installation Of The Material Holding System

    VERS. 2017.06.14 TR 252_MAN_EN 3.8 Installation of the material holding system  In order to ensure an optimal material holding during the cut, use the grasshoppers envisaged for this purpose. 3.9 Tool assembly Only NORTON blades with a diameter of 250 mm can be used with the TR 252. All tools used must be selected with regard to their maximum permitted cutting speed for the machine’s maximum permitted rotation speed.
  • Page 18: Electrical Connections

    VERS. 2017.06.14 TR 252_MAN_EN 3.10 Electrical connections Check that:  The voltage/phase supply corresponds to the information indicated on the motor plate.  Available power supply must have ground connection in conformity with safety regulations.  The connecting cables should have at least a 2.5mm -section per phase.
  • Page 19: Transport And Storing

    VERS. 2017.06.14 TR 252_MAN_EN 4 TRANSPORT AND STORING Please follow the following instructions to transport and store the TR252 in a safe way. 4.1 Securing for transport Before transporting the machine, always remove the blade and empty the water pan. Secure the cutting head on the rail by using the knob.
  • Page 20: Operating The Machine

    VERS. 2017.06.14 TR 252_MAN_EN 5 OPERATING THE MACHINE You will find in this chapter of the advices to use the machine in a safe way. 5.1 Site of work 5.1.1 Siting the machine  Remove from the site anything, which might hinder the working procedure! ...
  • Page 21: Maintenance And Servicing

    VERS. 2017.06.14 TR 252_MAN_EN 6 MAINTENANCE AND SERVICING To ensure a long-term quality from the cutting with the TR 252, please follow the maintenance plan below: Visual control (general aspect, water tightness) Whole machine Clean Flange and blade fixing Clean devices Motor cooling fans Clean...
  • Page 22: Faults: Causes And Cures

    VERS. 2017.06.14 TR 252_MAN_EN FAULTS: CAUSES AND CURES Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician.
  • Page 23: Circuit Diagram

    Spare parts for the motor can be ordered with the manufacturer of the motor or with their dealer, which is often quicker and cheaper. This machine has been manufactured for Saint-Gobain Abrasives S.A. 190, Bd J.F.Kennedy L- 4930 BASCHARAGE Grand-Duché de Luxembourg.
  • Page 24 +39 02 44 78 266 FAX: +40 261 839 709 TEL: SAINT-GOBAIN ABRASIVES, S.R.O. +40 261 839 710 FAX: SAINT-GOBAIN ABRASIVES S.A. 190 RUE J.F. VINOHRADSKÁ 184 KENNEDY 130 52 PRAHA 3 SG HPM RUS L-4930 BASCHARAGE CZECH REPUBLIC 58, F. ENGELS STR.

This manual is also suitable for:

70184694289
