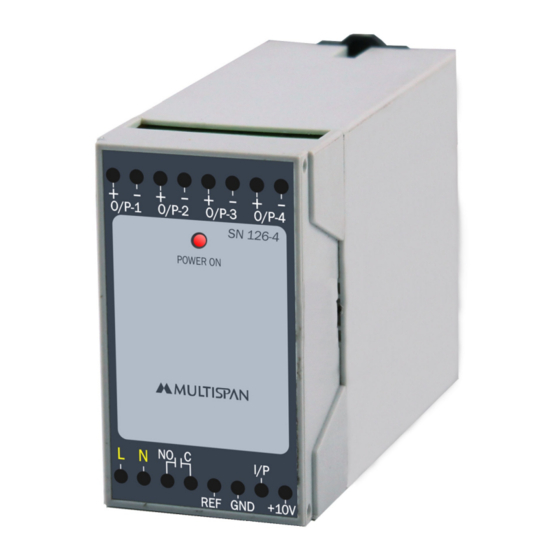

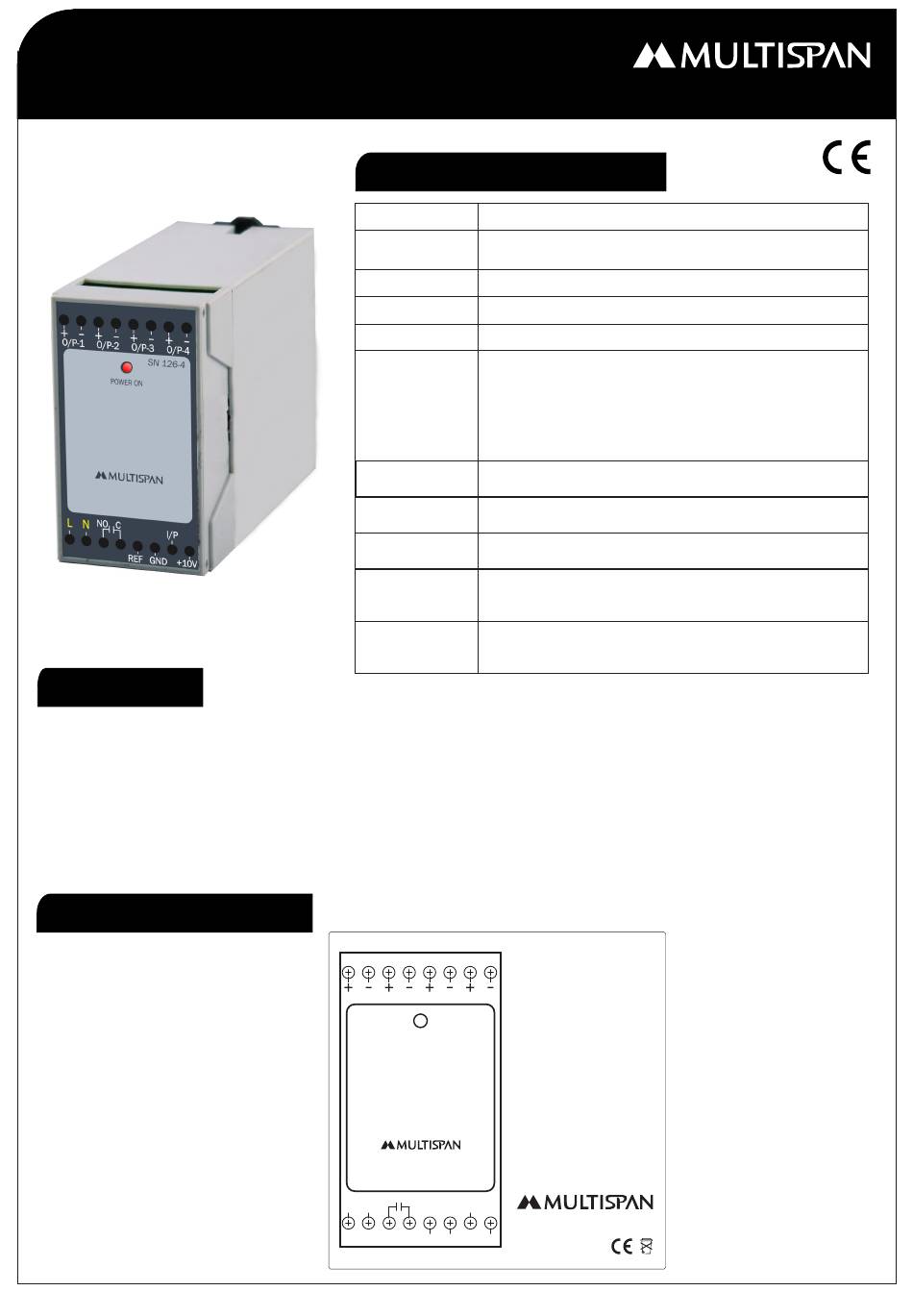

MULTISPAN SN-126-4 Operating Manual

OPERATING MANUAL
Synchronizer With Zero Speed Protection
SN-126-4

Application

1) Resistance to Voltage Converter : Can be used as resistance (3W/POT) to
Voltage (0 To 10V DC) Convertor.
2) Four channel output : Can be used to drive Four different instruments with input
specification ( 0 to 10V DC) by connecting them to different output channels.

Connection Diagram

SN-126-4

Technical Specification

Model
Size (mm)
Mounting
Features
Input
Output1
Output2
Accuracy
Power Supply
Operating
Temperature
Relative
Humidity
Model: SN 126-4
O/P-1 O/P-2 O/P-3 O/P-4
Input
SN 126-4
0 To 10K E POT
POWER ON
(3 Wire)
Output-4 Channel
0 To 10V DC
Supply
230V AC
NO C
L N
I/P
REF GND +10V
Page
-
1
SN-126-4
75 (H) x 45 (W) x 117 (D) mm
Din Rail Mounting
Resistance to Voltage conversion
10KE POT/3W
Frist channel : 0 To 10V DC
Second channel: 0 To 10V DC
Third channel : 0 To 10V DC
Four channel : 0 To 10V DC
1Relay (NO-C)
±1%FSD
230V AC
0°C To 55°C
Up to 95% RH Non Condensing
