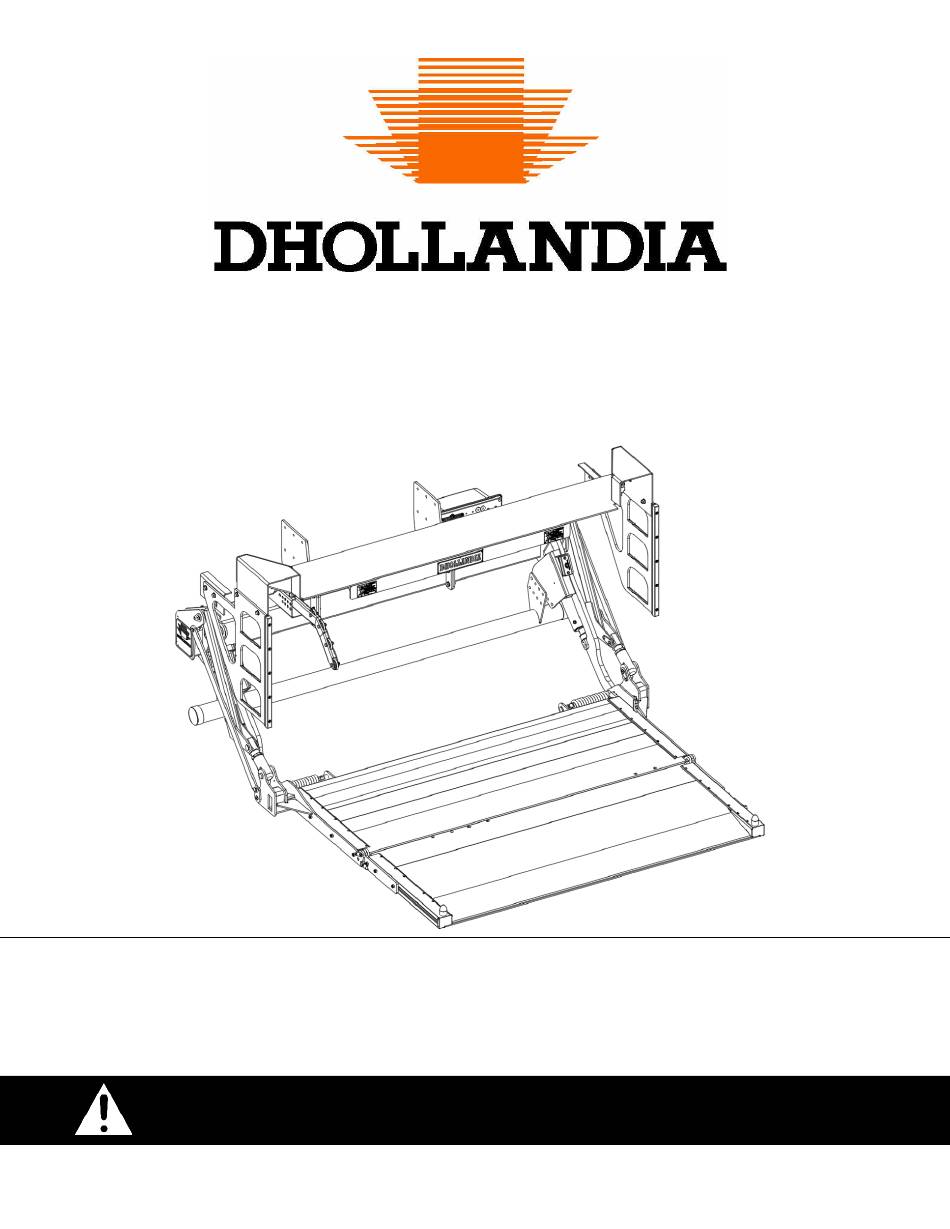

DH-RK 33 / 44 / 55
INSTALLATION MANUAL
Manufacturer:
DHOLLANDIA US, L.L.C.
E-mail : Technical.US@dhollandia.com
270 Southridge Parkway
Bessemer City North Carolina, 28016
website : www.dhollandia.com
Read the manual in its entirety before operating the liftgate
Keep this manual in the vehicle cab, as reference for the driver and liftgate operator
Order ref : xxx Doc: FIT_US installation manual RK_US EN_2023 Rev: 0 Date: APRIL 12, 2023
