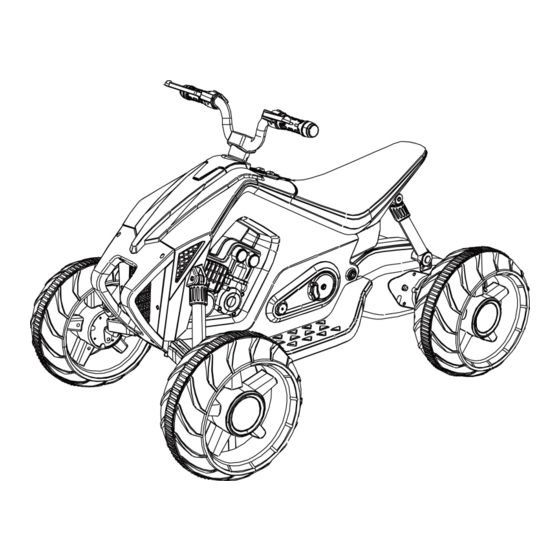

- Page 1 Ride On ATV Team 7 (12V) (45W Motor) / Ride On ATV Team 7 (24V) (55W Motor) w/EVA Tire item number: 060-ROT-08/060-ROT-08V2...
-
Page 2: Safety Instruction
Safety Instruction When using electrical product, basic safety precaution should always be followed including the following Read all Instruction before use • To Protect against electrical shock, do not immerse cord, charger, transformer, battery, or the product in water or other liquid. •... - Page 3 Parts and Feature Handlebar Assembly Hub Cap Seat Back Wheel Hub Cap Front Trim Coupling Body Rear Axle Front Wheel Front Safety Cover Coupling Steering Rod Front Wheel Back Wheel Hub Cap Hub Cap Ø4x12 mm M8 Nut M8 Washer M10 Washer Motor Charger...
-
Page 4: Assembly Instruction
Assembly Instruction Unfold the front axle. Unscrew the nut on the steering bearing and take out the screw. Turn the car body upside down and unscrew the nut on the steering bearing and take out the screw. Unfold the front axle. Steering Rod Insert the steering rod to the car body, assemble the two steering bearing to the iron plate on the far end of the steering rod with the screw and nut. - Page 5 Assembly Instruction Insert rear axle from the right side. Assemble the coupling on the rear wheel and secure with 4 screws. M8 Gasket M10 Gasket Insert rear axle to the car body from the right side. Then assemble the coupling on the rear wheel with 4 screws.
- Page 6 Assembly Instruction Battery Connection Charging Port Remove the seat by unscrewing the screw. Connect the battery to the terminal of the car, then replace the seat. The car is equipped with a thermal break protector. In case of a overload or improper use, the protector automatically turn off the power.
-
Page 7: User Instruction
User Instruction Control the vehicle 1. Start Switch Turn the product on and off . 2. Forward / Reverse Switch Press the switch to control the vehicle to move forward / reverse. ⚠Do not charge the speed or direction until the vehicle comes to a complete stop. 3. - Page 8 User Instruction (Multifunction Player) A. Previous Track / Decrease Volume Press the button once to play the previous track. Press and hold to decrease volume. B. Play / Pause Press the button to pause / play. C. Next Track / Increase Volume ress the button once to play the next track.
- Page 9 User Instruction (Charging) Battery Connection Charging Port ⚠WARNING! The battery should only be charged by an adult. Charging the battery 1. Insert the charging cable to the charging port located below the vehicle seat. 2. Insert the charger plug into a wall outlet. •...
-
Page 10: Care And Maintenance
Care and Maintenance • Check the product regularly and make sure there is no missing or loose parts. Re-tighten any loose parts if necessary. • Make sure there is no cracked or broken plastic parts. • When not using store the product away from heat source, cover it with a tarp and away from wet weather. - Page 11 Troubleshooting Problem Possible Reason Solution Check if the battery connectors are firmly connected. Poor wire connection Contact Customer service if Vehicle needs a push to go necessary forward “Dead spot” on motor Contact customer service Loud grinding sound or clicking Damaged motor or gear box Contact customer service sound from the motor or gear box...
- Page 12 2. Any product modifications by dealer, any circumstances. It is the retailer’s responsibility consumer, or other parties not authorized by to contact KIDZONE with a claim. We will not KIDZONE will void this warranty. handle claims from consumers directly; all 3.
