Summary of Contents for CAGO Infant-Sling-Mount

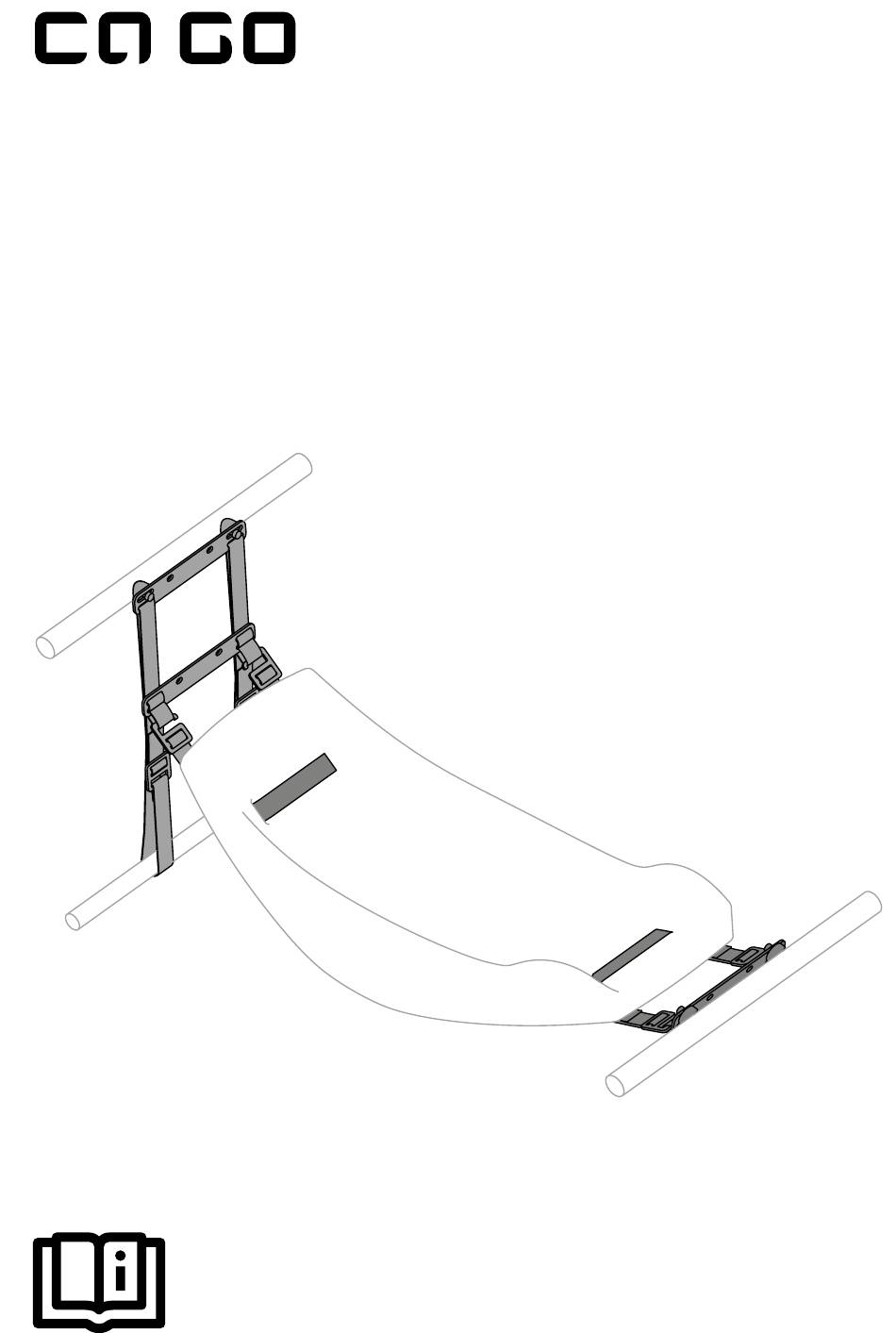

- Page 1 Infant-Sling-Mount Assembly instructions...
-
Page 2: Table Of Contents
Contents Safety notices ........................ 3 General information ..................... 4 Intended use ........................5 Scope of delivery ......................6 Installation ........................8 General notes on care ....................13 Statutory warranty / guarantee ................14 Service ........................... 14 The present assembly instructions is the translation of the original assembly instructions. -
Page 3: Safety Notices
Safety notices This user manual contains various types of notice. The notices are designed as follows: Danger Notice Potential hazards for your health Provides information about how and the health of your co-riders and to handle the product or refers to other road users if you fail to observe a passage in the user manual that the respective instructions or do not... -
Page 4: General Information
General information Fig. 1 The Infant-Sling-Mount enables the safe installation of an Infant-Sling in the FS200 Life. It makes it possible to transport infants aged 0 to 9 months and weighing up to 9 kg in the FS200 Life. If the Infant-Sling-Mount is placed... -
Page 5: Intended Use
Infant-Sling-Mount in the central position. The Infant-Sling-Mount is designed for infants aged 0 to 9 months The Infant-Sling-Mount can be hung and weighing up to 9 kg. Beyond into the transport box either in the this specification, the operating direction of travel or against it. -
Page 6: Scope Of Delivery
Scope of delivery Fig. 3... - Page 7 Adapter discs 4 pieces Cylinder head screw, M6 x 25 4 pieces O-rings 4 pieces Washers 4 pieces G-hook, left 2 pieces G-hook, right 2 pieces Connector plate without loops (type B) 1 piece Connector plate with loops (type A) 2 pieces Connecting strap 2 pieces...
-
Page 8: Installation
Installation Top rear transport box rail Bottom rear transport box rail Fig. 4 Against the direction of travel (recommended) Top front transport box rail Bottom front transport box rail Fig. 5 In the direction of travel To install the set, install one connector plate to the bolting points in the top transport box rails at the front and rear (Figs. 4 and 5). - Page 9 Installation on one side, against the direction of travel Fig. 6 Installation on one side, head area Fig. 7 Installation on one side, foot area of the hung-in Infant-Sling-Mount. of the hung-in Infant-Sling-Mount. Installation in the centre, against the direction of travel Fig. 8 Installation in the centre, head area...
- Page 10 Each screw shaft receives one adapter plate behind the connector plate, with the concave side facing the rail. Secure the screw thus inserted with an O-ring . Now secure the connector plates at the front and rear to the top rails (5 mm Allen key, 5–8 Nm tightening torque) (Figs. 6, 7, 8 and 9).
- Page 11 Height adjustment and hanging in the Infant-Sling-Mount Fig. 13 Thread the connecting straps into the Infant-Sling-Mount, then place one right G-hook and one left G-hook ) at the ends (Fig. 13). Fig. 12 The height of the connector plate can be set to one of three levels according to preference.
- Page 12 Fig. 15 Hanging in, front Fig. 16 Tightening the belt straps In the same way, hook the G-hooks As a final step, pull the belt straps into the closed loops at the head tight (Fig. 16). (Fig. 15). Before every ride, ensure that all G-hooks are hooked in properly and all belts pulled tight, since the Infant- Sling-Mount might unhook itself...
-
Page 13: General Notes On Care
General notes on care The components of the Infant-Sling-Mount should be cleaned only with water and mild detergents, such as soap. Never use aggressive cleaning The components of the Infant-Sling- agents, acids or solvents to clean the Mount must be checked for damage set. -
Page 14: Statutory Warranty / Guarantee
Statutory warranty / guarantee The legal statutory warranty applies. You can find more details on the warranty on our website: www.cagobike.com/en/warranty Export to the USA and Canada is not permitted (product liability)! Service If you have questions concerning this user manual, please contact your Ca Go dealer or your Ca Go service team. - Page 16 Published by: Ca Go Bike GmbH Am Autobahnkreuz 7 56072 Koblenz Germany +49 261 914090-600 info@cagobike.com www.cagobike.com Managing directors: Franc Arnold Company register Court of record: District Court Koblenz / register no.: HRB 26998 / VAT Id no. DE326206636 Responsible for distribution and marketing of the user manual: Ingo Kahnt Ca Go Bike GmbH reserves the right to change product specifications without prior notice.
