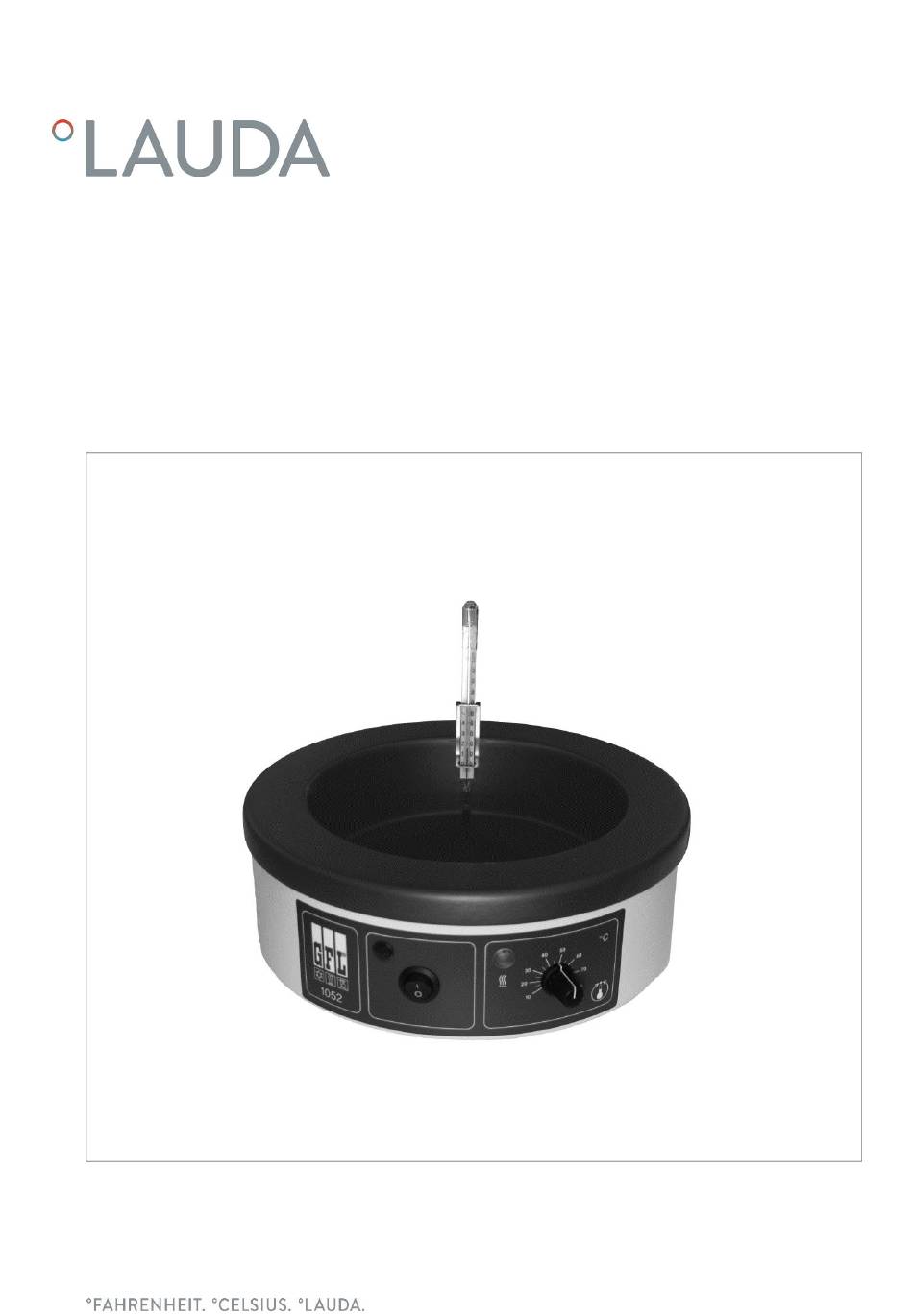

Page 1: Operating Instructions
Operating Instructions Hydro Tissue Float Bath H 2 P... - Page 2 2 / 20 Hydro Tissue Float Bath 09/2020...
- Page 3 The LAUDA Hydro Tissue Float Bath H 2 P is a special bath for histological, pathological, clinical and bacteriological labora- tories, for stretching and drying of cut tissue samples. The outer housing is made of powder-coated aluminium, the bath body as well as the rims of the bath to dry the cut tissues are made of black anodised aluminium.
- Page 4 4 / 20 Hydro Tissue Float Bath 09/2020...
-
Page 5: Table Of Contents
Contents Operating Instructions ................................... 1 Use of the Tissue Float Bath ..............................7 Intended Use ....................................7 Improper Use ....................................7 Warranty ....................................7 Before installation .................................. 8 Set-Up and Location of the Tissue Float Bath ........................8 Operating Voltage ................................. 8 Thermometer .................................. - Page 6 6 / 20 Hydro Tissue Float Bath 09/2020...
-
Page 7: Use Of The Tissue Float Bath
Intended Use LAUDA Hydro Tissue Float Baths are used to heat up distilled or desalinated water in a temperature range of 5 K above ambient to approx. 80 °C, in order to flatten cut tissues to prepare them for further studies, to transfer them to micro- scope slides and to dry them on the indirectly heated rim of the bath. -
Page 8: Before Installation
Before installation The information given in the present manual must by all means be carefully read and observed. Only then can a perfect functioning of the Evaporation Water Bath be guaranteed. Safety precautions are additionally marked with the following symbols. Read and observe the operating instructions Warning of hot liquids... -
Page 9: Thermometer
Thermometer Fix the thermometer holder to the bath rim, opposite the control panel, and place the glass thermometer into the holder. The thermometer must not touch the bottom of the bath. Filling Water into the Tissue Float Bath Before initiation, fill either distilled or desalinated water up to approx. 1 - 2 cm beneath the rim of the bath. -
Page 10: Maintenance, Support And Repair
LAUDA-GFL will take responsibility, within the scope of the legal directives, for an environmentally sound handling and disposal of all used LAUDA-GFL units as of the production year 1995 that are returned to us free of charge and will have them materially recycled. -
Page 11: Technical Data
Technical Data Exterior dimensions (diameter / height) 280 mm / 100 mm Interior dimensions (diameter / height) 200 mm / 60 mm Usable bath height 50 mm max. filling quantity (in litres) 1.6 l Temperature range approx. 5 K above ambient to +80 °C Temperature control Capillary thermostat Temperature setting... -
Page 12: Circuit Diagram
Circuit diagram Socket for unit Heating element 300 W Over-temperature cut-out > 130 °C LED Pilot lamp operation, yellow LED Pilot lamp mains, green Main switch Temperature regulator 12 / 20 Hydro Tissue Float Bath 09/2020... -
Page 13: Examples For Connection To The Mains Supply
14.1 Electrical fuses Model Power Power consumption at mains voltage * Mains fuse (F4, F5) H 2 P 0,3 kW 1,3 A at 230 V 10 A / Amp (max. 16 A / Amp.) 09/2020 Hydro Tissue Float Bath... -
Page 14: Examples For Connection To The Mains
Das verk nüpfte Bild kann nicht angezeigt werden. Möglicherweise wurde die Datei verschoben, umbenannt oder gelöscht. Stellen Sie sicher, dass die Verk nüpfung auf die korrek te Datei und den korrek ten Speicherort zeigt. H 2 P for 230 V with power supply 230 V / N / PE / 50/60 Hz, connected through 3-pole shock-proof (Schuko) plug system. -
Page 15: List Of Spare Parts
List of spare parts Pos. Art.-No. Article P4-817 Holder for thermometer 0012252 Heating plate 300 W, 230 V 0012278 Heating plate 300 W, 115 V 0012018 Over-temperature cut-out 0012440 Main switch 0014312 Stand 0012634 LED Pilot lamp, green 0012633 LED Pilot lamp, yellow 0014545 Turning knob 0014547... -
Page 16: Accessories
Accessories Lid, to cover the bath interior, made of black anodised aluminium, with ball handle. Order no: A000040 16 / 20 Hydro Tissue Float Bath 09/2020... - Page 17 09/2020 Hydro Tissue Float Bath 17 / 20...
- Page 18 18 / 20 Hydro Tissue Float Bath 09/2020...
- Page 19 09/2020 Hydro Tissue Float Bath 19 / 20...
- Page 20 LAUDA-GFL Gesellschaft für Labortechnik mbH Schulze-Delitzsch-Straße 4+5 ◦ 30938 Burgwedel ◦ Germany Tel.: +49 (0) 5139 9958-0 ◦ Fax +49 (0) 5139 9958-21 E-Mail: info@lauda-gfl.de ◦ Internet: www.GFL.de...
