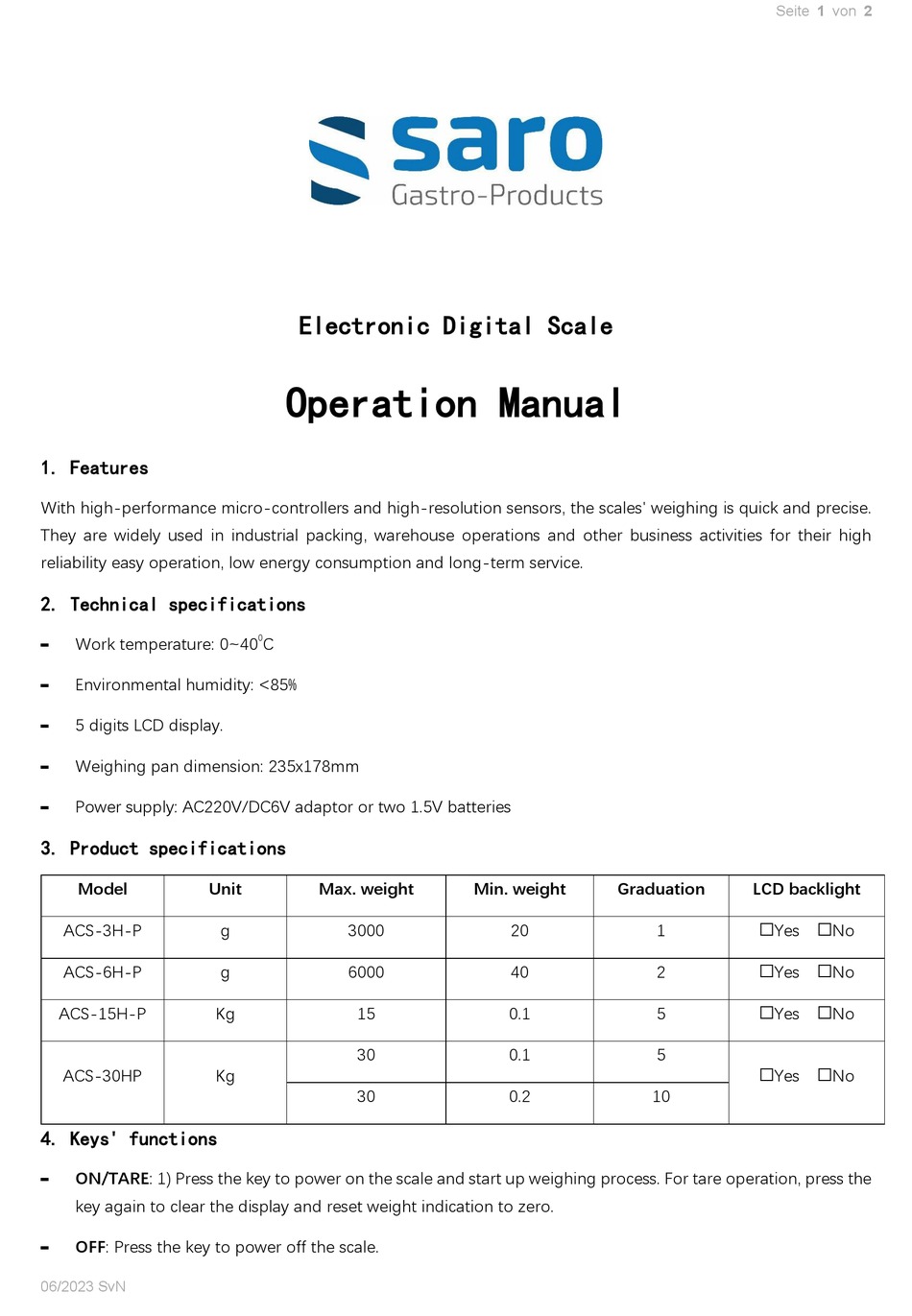

1. Features
With high-performance micro-controllers and high-resolution sensors, the scales' weighing is quick and precise.
They are widely used in industrial packing, warehouse operations and other business activities for their high
reliability easy operation, low energy consumption and long-term service.
2. Technical specifications
Work temperature: 0~40
-
Environmental humidity: <85%
-
-
5 digits LCD display.
Weighing pan dimension: 235x178mm
-
-
Power supply: AC220V/DC6V adaptor or two 1.5V batteries
3. Product specifications
Model
Unit
ACS-3H-P
ACS-6H-P
ACS-15H-P
ACS-30HP
4. Keys' functions
-
ON/TARE: 1) Press the key to power on the scale and start up weighing process. For tare operation, press the
key again to clear the display and reset weight indication to zero.
-
OFF: Press the key to power off the scale.
06/2023 SvN
Electronic Digital Scale
Operation Manual
0
C
Max. weight
g
3000
g
6000
Kg
15
30
Kg
30
Min. weight
Graduation
20
40
0.1
0.1
0.2
Seite 1 von 2
LCD backlight
Yes No
1
Yes No
2
Yes No
5
5
Yes No
10
Advertisement
Table of Contents
Summary of Contents for saro ACS-3H-P
- Page 1 Weighing pan dimension: 235x178mm Power supply: AC220V/DC6V adaptor or two 1.5V batteries 3. Product specifications Model Unit Max. weight Min. weight Graduation LCD backlight Yes No ACS-3H-P 3000 Yes No ACS-6H-P 6000 Yes No ACS-15H-P Yes No ACS-30HP 4. Keys' functions ON/TARE: 1) Press the key to power on the scale and start up weighing process.
- Page 2 MODE: 1) Weighing units exchange key. Press the key to select catty, lb and kg sequentially while it is unlocked. 2) Hold ’MODE’ for 8 seconds to lock (‘off’) and unlock (‘on’) MODE key. 5. Operation Adjust 4 bottom screws to achieve a good level according to a small spheral gradienter on top of the scale. Plug the power core or install the batteries, press ’ON/TARE’...
