Megatron CARDANO MT67030 Instruction Manual

LED Surface Downlight –
Instruction Manual

TECHNICAL SPECIFICATION:

Series Name
Model Number MT67030
Color
Lamp Holder
Incl. Light Source
Light Source Wattage 7W
Beam Angle
Total Luminous Flux 500lm
Energy Efficiency Class
Light Source <X>
Voltage
Frequency
IP Rating
CAUTIONS:
∙
Read the entire manual carefully before installation and operation.
∙
Installation or replacement should be performed only by licensed and qualified electricians.
∙
DO NOT disassemble the inner part of the luminaire. Doing so may result in luminaire damage or malfunction.
∙
Switch OFF the power source before installation, replacement and cleaning!
∙
Wearing gloves during installation is recommended to ensure the luminaire is kept in the best condition.
∙
Before replacement of the lamp or luminaire, turn it off and allow it to cool down. Heat-resistant gloves are mandatory when handling the luminaire.
∙
The manufacturer accepts no liability for any damage resulting from the misuse of the luminaire or from when it is used with inappropriate equipment.
∙
Important warning for ground drilling and drilling in walls: before drilling, make sure that there are no gas and water pipes or power lines behind or near the drilling
spots. Drilling and mounting should be performed only by qualified personnel. Be sure to pay attention to the condition and material of the ground and walls, as the
supplied mounting material is not suitable for all ground and wall types. Please inquire about recommended screws and raw plugs for your ground or wall type and
condition. The manufacturer accepts no liability for improper wall raw plug mounting and the herefrom resulting damages.
∙
This product contains a light source of energy efficiency class <X>.
∙
Consult your dealer if you have any enquiries.
ATTENTION:
∙
Instant start is allowed.
∙
The luminaire may only be used with GX53 LED lamps!
∙
The operating temperature of the luminaire is -20°C to +40°C.

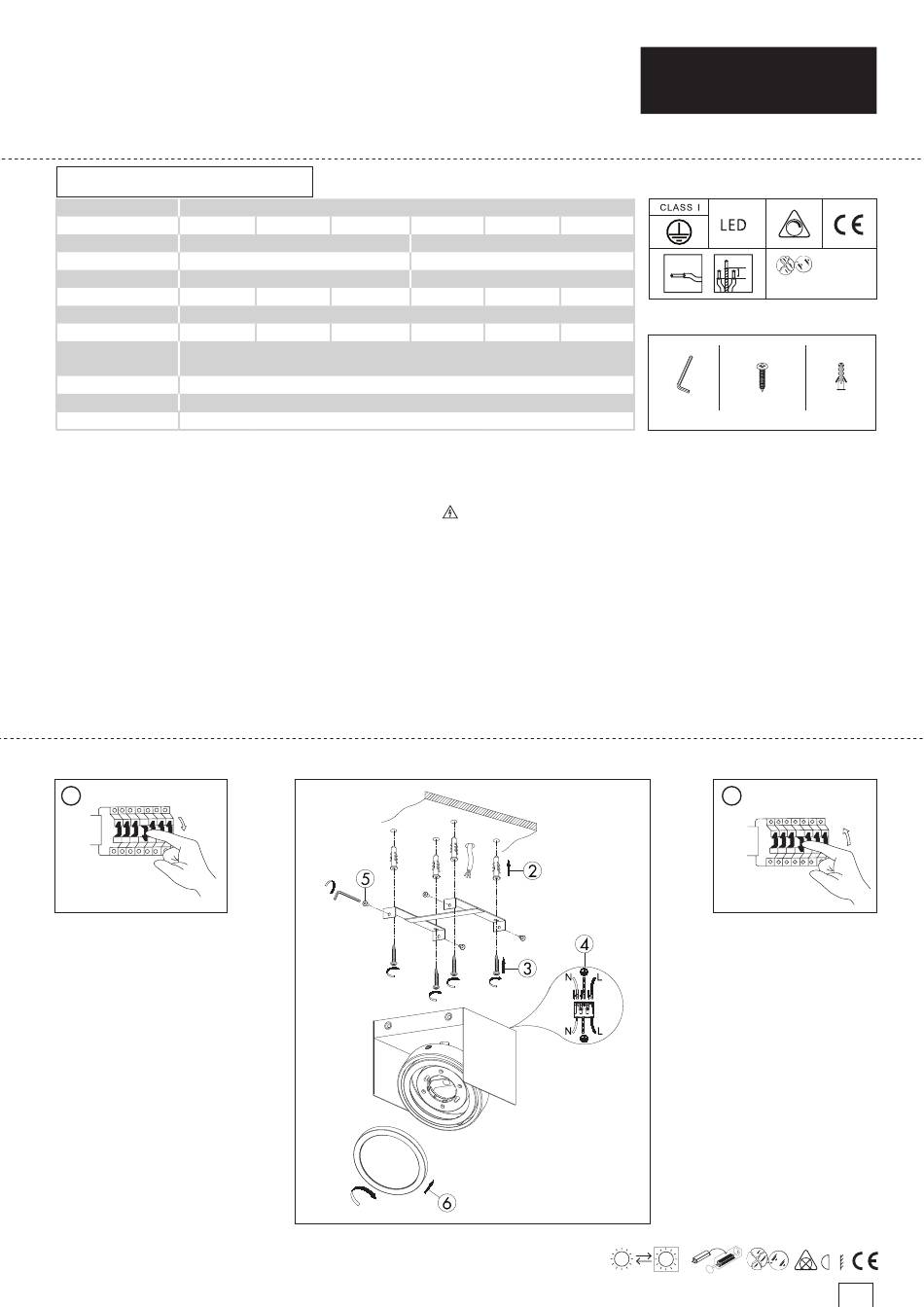

INSTALLATION:
MT67030 and MT67033
1
OFF
1. Turn OFF the power.
2.
Drill the holes and plug the dowels into
the drill holes.
3.
Screw the luminaire holder on the wall
or ceiling.
4.
Connect the cable to the terminal
block.
5. Place the luminaire in the holder and
tighten the side screws in order to fix.
6.
Insert the light source MT67081/
MT67082 into the lamp holder.
7.
Turn ON the power.
IDV GmbH | Birkenweiherstraße 2 | D-63505 Langenselbold | Germany | www.megatron-licht.eu
CARDANO
MEGATRON Ambiente
®
MT67031 MT67032 MT67033
Black
GX53
MT67081
2 x 7W 3 x 7W 7W
90°
2 x 500lm 3 x 500lm 500lm
G
220–240V~
50/60 Hz
IP20
MEGATRON
MT67034 MT67035
White
GX53 Approx.
8mm
MT67082
2 x 7W 3 x 7W

INCLUDED PARTS:

2 x 500lm 3 x 500lm
1 pcs.
LED LED
®
>5cm
Replace any cracked
protective shield.
4 pcs. 4 pcs.
7
ON
0,2m
----
GB
