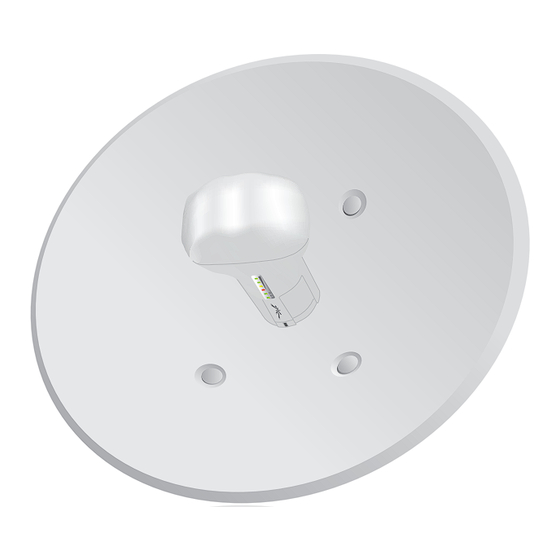

Ubiquiti NB-5G22 Quick Start Manual

Hide thumbs Also See for NB-5G22:
Table of Contents

Advertisement

Quick Links

Model:
NB-5G22

Advertisement

Table of Contents
loading

Related Manuals for Ubiquiti NB-5G22

Summary of Contents for Ubiquiti NB-5G22

  • Page 1 Model: NB-5G22...

  • Page 3: Package Contents

    Introduction Introduction Thank you for purchasing the Ubiquiti NanoBridge . This Quick ™ Start Guide is designed to guide you through the installation of the NanoBridgeM5, model: NB‑5G22, and show you how to access the airOS Configuration Interface. ™ Package Contents...

  • Page 4: Application Examples

    Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial‑grade shielded Ethernet cable from Ubiquiti Networks . For more details, visit www.ubnt.com/toughcable ™...

  • Page 5: Installation

    Installation Installation 1. Install the Feed Support to the Dish Bracket using the four M6 Bolt with Lock Washer Assemblies. 2. Install the Dish Bracket to the Dish Reflector using the four M6x12 Carriage Bolts and four M6 Serrated Flange Nuts.
  • Page 6 NanoBridge M5 Quick Start Guide ™ 3. Route the Ethernet cable through the bottom hole of the Feed Support and connect it to the Ethernet port on the back of the Antenna Feed. 4. Insert the Antenna Feed into the Feed Support using the orientation shown below.
  • Page 7 Installation 5. Wrap the Feed Support Bushing around the Ethernet cable and then push it into place in the Feed Support. 6. Attach the dish assembly to the pole using the M6 U-Bolt, Pole Bracket Clamp, and two M6 Serrated Flange Nuts. Note: The mounting assembly can accommodate a Ø...
  • Page 8 NanoBridge M5 Quick Start Guide ™ 7. Connect the other end of the Ethernet cable from the NanoBridge to the Ethernet port labeled POE on the PoE Adapter. 8. Connect an Ethernet cable from your LAN or computer to the Ethernet port labeled LAN on the PoE Adapter. 9.
  • Page 9 Accessing airOS Accessing airOS Connect to the airOS Configuration Interface. 1. Make sure that your host machine is connected to the LAN that is connected to the device. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet (e.g., 192.168.1.100). 3.
  • Page 10 M5 Quick Start Guide ™ Ubiquiti Networks Wiki and Forum Ubiquiti Networks has an online Wiki with Manuals, Guides, and Information. It is located at wiki.ubnt.com. Another great resource is the Ubiquiti Networks Forum. You can post and view comments, questions, and answers with other...

  • Page 11: General Warranty

    Repair or replacement in the manner provided herein shall be the sole and exclusive remedy of Buyer for breach of warranty and shall constitute fulfillment of all liabilities of UBIQUITI NETWORKS with respect to the quality and performance of the Products. UBIQUITI NETWORKS reserves the right to inspect all defective Products (which must be returned by Buyer to UBIQUITI NETWORKS factory freight prepaid).

  • Page 12: Safety Notices

    NanoBridge M5 Quick Start Guide ™ Returns In the unlikely event a defect occurs, please work through the dealer or distributor from which this product was purchased. Safety Notices 1. Read, follow, and keep these instructions. 2. Heed all warnings. 3.

  • Page 13: Industry Canada

    Compliance Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.

  • Page 14: Rf Exposure Warning

    NanoBridge M5 Quick Start Guide ™ Cet appareil est conforme à la norme RSS Industrie Canada exempts de licence norme(s). Son fonctionnement est soumis aux deux conditions suivantes: 1. Cet appareil ne peut pas provoquer d’interférences et 2. Cet appareil doit accepter toute interférence, y compris les interférences qui peuvent causer un mauvais fonctionnement du dispositif.

  • Page 15: Rohs/Weee Compliance Statement

    Compliance RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 16 NanoBridge M5 Quick Start Guide ™ Français La directive européenne 2002/96/CE exige que l’équipement sur lequel est apposé ce symbole sur le produit et/ou son emballage ne soit pas jeté avec les autres ordures ménagères. Ce symbole indique que le produit doit être éliminé...

  • Page 17: Declaration Of Conformity

    UBIQUITI NETWORKS device, megfelel a vonatkozó alapvetõ [Hungarian] követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak. Íslenska Hér me l sir UBIQUITI NETWORKS yfir ví a UBIQUITI NETWORKS device, er í samræmi vi grunnkröfur og a rar kröfur, sem ger ar eru í [Icelandic] tilskipun 1999/5/EC.
  • Page 18 NanoBridge M5 Quick Start Guide ™ Latviski Ar o UBIQUITI NETWORKS deklar , ka UBIQUITI NETWORKS device, atbilst Direkt vas 1999/5/EK b tiskaj m pras b m un citiem ar to saist [Latvian] tajiem noteikumiem. Lietuviškai UBIQUITI NETWORKS deklaruoja, kad šis UBIQUITI NETWORKS įrenginys atitinka esminius reikalavimus ir kitas 1999/5/EB...

  • Page 20: Ubiquiti Networks Support

    Email: support@ubnt.com Phone (9 a.m. ‑ 5 p.m. PST): 408-942-1153 Online Resources Wiki Page: wiki.ubnt.com Support Forum: forum.ubnt.com Downloads: downloads.ubnt.com w w w . u b n t . c o m © 2012 Ubiquiti Networks, Inc. All rights reserved.
