Polar Ware Stoelting IntelliTec E111 Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
E111/F111
IntelliTec Models
OWNER'S MANUAL
Manual No. 513532-5
Jan. 2006, Rev. 0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stoelting IntelliTec E111 and is the answer not in the manual?

Questions and answers

Related Manuals for Polar Ware Stoelting IntelliTec E111

Summary of Contents for Polar Ware Stoelting IntelliTec E111

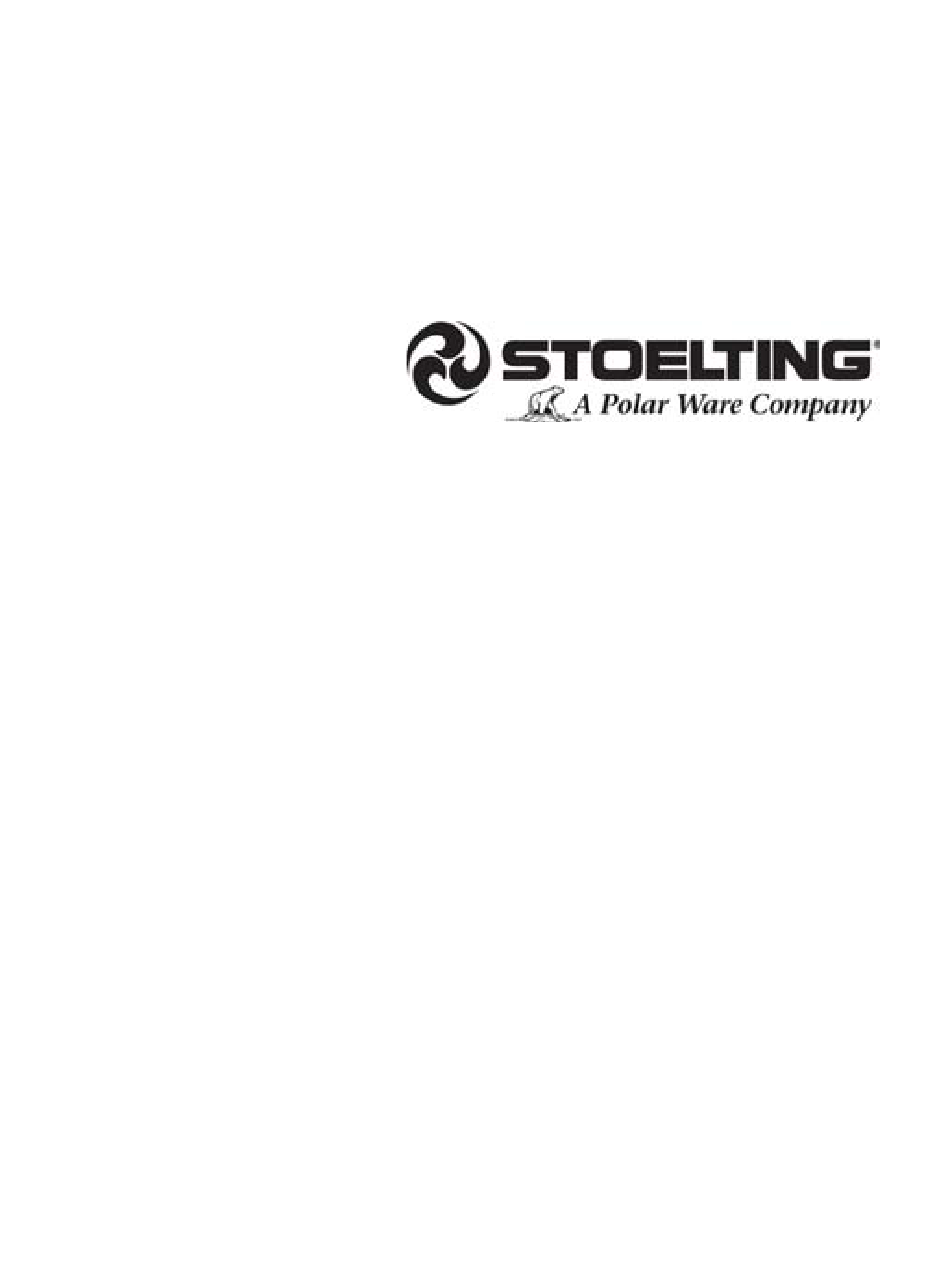

  • Page 1 E111/F111 IntelliTec Models OWNER'S MANUAL Manual No. 513532-5 Jan. 2006, Rev. 0...
  • Page 3 Need Parts or Service? We stock the parts you need. Our Technicians are factory trained and are certified in the Stoelting Technicare program. CALL Distributor: _________________________ Phone No.: _________________________ (fill in or affix label) Model No.: _______________________ Serial No.: _______________________ Purchase Date: ____________________ Start-Up Date:____________________...
  • Page 5 Owner's Manual For Endura E111 and Futura F1 11 Stoelting Counter Model Gravity Freezer Soft Serve This manual provides basic information about the freezer. Instructions and suggestions are given covering its operation and care. The illustrations and specifications are not binding in detail. We reserve the right to make changes to the freezer without notice, and without incurrring any obligation to modify or provide new parts for freezers built prior to date of change.
  • Page 6 A Few Words About Safety Safety Information Safety Alert Symbol: Read and understand the entire manual before This symbol Indicates danger, warning or caution. operating or maintaining Stoelting equipment. Attention is required in order to avoid serious personal injury. The message that follows the symbol contains This Owner's Manual provides the operator with important information about safety.

  • Page 7: Table Of Contents

    TABLE OF CONTENTS SECTION DESCRIPTION PAGE 1. INTRODUCTION 1.1 Description......................1.2 Specifications ......................2. INSTALLATION INSTRUCTIONS 2.1 Safety Precautions ....................2.2 Shipment and Transit....................2.3 Freezer Installation ....................3. INITIAL SET-UP AND OPERATION 3.1 Operator's Safety Precautions ................3.2 Operating Controls and Indicators................3.3 Sanitizing .......................
  • Page 8 LIST OF ILLUSTRATIONS FIGURE TITLE PAGE Model E111 & F111 Freezer .................. 1 Freezer Specifications ................... 1 Warning Label Locations ..................3 Leveling ......................... 4 Space and Ventilation Requirements ..............4 Electrical Plug ....................... 4 Freezer Controls ....................5 IntelliTec Control ....................7 Mix Inlet Regulator ....................

  • Page 9: Description

    SECTION 1 DESCRIPTION AND SPECIFICATIONS 1.1 DESCRIPTION The Stoelting Endura/Futura 111 counter freezers are gravity fed. The freezers are equipped with fully automatic controls to provide a uniform product. The freezers are designed to operate with almost any type of commercial soft serve or non-dairy mix available, including ice milk, ice cream, yogurt, and frozen dietary desserts.
  • Page 10 MODEL ENDURA/FUTURA 111 COUNTER MODEL GRAVITY FREEZER DIMENSIONS: Freezer: 15" (38 cm) wide x 28.6" (72 cm) deep x 35.6" (90 cm) high Crated: 19.5" (50 cm) wide x 33" (84 cm) deep x 40" (102 cm) high WEIGHT: Freezer: 230 lbs. (140 kg) Crated: 275 lbs.

  • Page 11: Installation Instructions

    SECTION 2 INSTALLATION INSTRUCTIONS 2.1 SAFETY PRECAUTIONS If danger, warning or caution labels are needed, indicate the part number, type of label, location of label, and quantity Do not attempt to operate the freezer until the safety required along with your address and mail to: precautions and operating instructions in this manual are read completely and are thoroughly understood.

  • Page 12: Shipment And Transit

    2.2 SHIPMENT AND TRANSIT The freezer has been assembled, operated and inspected at the factory. Upon arrival at the final destination, the complete freezer must be checked for any damage which may have occurred during transit. With the method of packaging used, the freezer should arrive in excellent condition.

  • Page 13: Initial Setup And Operation

    SECTION 3 INITIAL SETUP AND OPERATION 3.1 OPERATOR’S SAFETY PRECAUTIONS Do not operate under unsafe operating conditions. Never operate the freezer if unusual or excessive SAFE OPERATION IS NO ACCIDENT; observe these noise or vibration occurs. rules: Know the freezer. Read and understand the 3.2 OPERATING CONTROLS AND INDICATORS Operating Instructions.
  • Page 14 Spigot Switch Mix Low Light Indicator The spigot switch will automatically actuate the The MIX LOW message will appear on the LCD auger drive and refrigeration systems when the display to alert the operator to a low mix condition. spigot is opened to dispense product. When the The message will display when there is spigot is closed, the drive motor and compressor approximately one gallon of mix left in the hopper.

  • Page 15: Sanitizing

    Push to Freeze When sanitizing the freezer, refer to local sanitary regula- tions for applicable codes and recommended sanitizing products and procedures. The frequency of sanitizing Green Light must comply with local health regulations. Amber Light Mix sanitizer according to manufacturer’s instructions to provide a 100 parts per million strength solution.

  • Page 16: Freeze Down And Operation

    With spigot open, pour approximately 1 gallon (3.8 liters) of fully thawed mix into the hopper. Allow the mix to flush out about 8 ounces (0.23 liters) of sanitizing solution and liquid mix. Close the spigot. Fill hopper with approximately 3 gallons (11.4 liters) of pre-chilled (40°F or 4°C) mix.

  • Page 17: Mix Information

    Proper product serving temperature varies from one NOTE manufacturer’s mix to another. Soft serve mixes generally Refrigeration is automatically activated when the provide satisfactory product from 18° to 20°F (-7° to -6°C), spigot is opened. Close the spigot completely af t er shake mixes 24°...
  • Page 18 Open the spigot to drain the water. Remember to place a bucket or container under the spigot to catch the water. When the water has drained, turn the OFF-ON switch to the OFF position. Allow the freezer barrel to drain completely. Repeat Steps A through D using a mild detergent solution and warm water.

  • Page 19: Cleaning The Freezer Parts

    3.10 SANITIZE FREEZER AND FREEZER PARTS Use a sanitizing solution mixed according to manufacturer's instructions to provide 100 parts per million strength solution. Mix sanitizer in quantities of no less than 2 gallons (7.5 liters) of 120°F water. Allow the sanitizer to contact the surfaces to be sanitized for 5 minutes.

  • Page 20: Routine Cleaning

    Install the front door on the freezer. Install the circular knobs on the freezer studs. CAUTION Overtightening or uneven tensioning of circular knobs may cause damage to front door and cause leaking. Hand tighten circular knobs evenly. Look for the proper seal between the freezer barrel, o-ring, and front door.
  • Page 21 In addition to food safety, milkstone can cause premature SANITIZING – After the machine has been cleaned wear to machine parts which can add to costs for replace- and contains no milkstone, the machine is ment parts or possibly more expensive repairs if worn reassembled.

  • Page 22: Extended Storage

    There are two main factors that contribute to falling chlo- Remove the Phillips head screw from the bottom rine concentrations in a sanitizing solution. of the right side panel, and then slide the panels down and out. PRODUCT USE – As the chlorine in the solution is being used, chlorine concentrations fall.

  • Page 23: Product Consistency Adjustment

    3.15 PRODUCT CONSISTENCY ADJUSTMENT 3.16 LOCKING OUT CONTROL PANEL The IntelliTec control monitors the consistency (firmness) The IntelliTec control has a tamper proof mode to prevent of the product (mix) in the freezing cylinder by monitoring unauthorized use. When set, all buttons on the control the drive motor amp draw.

  • Page 25: Error Codes

    SECTION 4 TROUBLESHOOTING 4.1 ERROR CODES Error Code 3 - Run Time The Run Time Error (E3) occurs when the When the freezer experiences a problem, one of the compressor runs continuously for 20 minutes following error codes will be displayed on the control panel. without the product reaching consistency in “Serve Each error code directs you to the system location of the Mode”...
  • Page 26 Error Code 5 - Freezing Cylinder Sensor Error Code 11 - Low Temperature The Freezing Cylinder Sensor Error (E5) indicates The Low Temperature Error (E11) occurs when a failure of the barrel sensor or an extreme out of the temperature of the gas refrigerant at the barrel range condition (<...

  • Page 27: Troubleshooting Charts

    4.3 Troubleshooting Charts PROBLEM POSSIBLE CAUSE REMEDY 1. Power to freezer is off. 1. Supply power to freezer. Freezer does not run. 2. Fuse or circuit if blown or tripped. 2. Replace or reset. 3. Freeze-up (auger will not turn). 3.
  • Page 28 4.3 Troubleshooting Charts - continued PROBLEM POSSIBLE CAUSE REMEDY 1. Worn drive belt. 1. Replace drive belt. Drive belt slipping or 2. Freeze-up (Auger will not turn). 2. Turn OFF-ON switch to OFF for 15 min., squealing. then restart. Low overrun. 1.

  • Page 29: Replacement Parts

    SECTION 5 REPLACEMENT PARTS 5.1 HOW TO ORDER PARTS Serial number of model, stamped on nameplate Part number, part name and quantity needed. To assure receipt of the proper replacement parts, supply Common part names and numbers are listed in your dealer or distributor with the following information: this manual.
  • Page 30 E111 & F111 REPLACEMENT PARTS...
  • Page 31 E111 & F111 REPLACEMENT PARTS Ref # Part Description Qty in E111 Qty in F111 314452 Hopper Cover 2149238 Mix Inlet Regulator 624677 O-Ring - Mix Inlet Regulator 744283 Drip Tray 744284 Drip Tray Insert 744262 Drain Tray 3159696 Spigot 624598 O-Ring - Spigot Top &...
  • Page 33 WARRANTY SOFT SERVE / SHAKE FREEZERS 1. Scope: Stoelting, LLC warrants to the first user (the “Buyer”) that the freezer cylinders, hoppers, compressors, drive motors, speed reducers, auger and auger flights of Stoelting soft serve / shake freezers will be free from defects in materials and workmanship under normal use and proper maintenance appearing within five (5) years, and that all other components of such equipment manufactured by Stoelting will be free from defects in material and workmanship under normal use and proper maintenance appearing within twelve...
