SunJoe MJ402E - Electric Lawn Mower 16-INCH | 12-AMP Manual

Safety Instructions

All Operators Must Read These Instructions Before Use
Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death.

General Safety WARNINGS!
When using this electric lawn mower, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These precautions include:

Do not operate without the entire grass collection bag, discharge guard, rear flap, or other safety protective devices in place and in proper working order.

The use of any other accessory or attachment might increase the risk of injury.

To reduce the risk of injury, inspect the grass collection bag frequently and replace with recommended replacement if there are signs of wear or deterioration.
Before using the lawn mower, take the time to familiarize yourself with the controls, especially how to stop the lawn mower in an emergency. The only individuals who should use the lawn mower are those who have a thorough understanding of the instructions and who know how to operate the machine. Children should never be allowed access to the lawn mower.
Retain this manual for future reference and reread it at the start of each mowing season.

FOR DOUBLE-INSULATED LAWN MOWERS

1. Replacement parts – When servicing this unit, use only identical replacement parts. Replace or repair damaged cords immediately.
2. Polarized plug – Polarized appliance connections reduce the risk of electric shock. This lawn mower has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. There is only one way the lawn mower's plug will fit into a polarized extension cord. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. There is only one way the plug will fit into a polarized wall outlet. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug in any way.

Contact with moving parts may cause entanglement, dismemberment, or other serious bodily injury. Always keep body parts (i.e. hands, feet) a safe distance away from moving parts. Ensure all covers and guards are securely in place before use.
Hot surfaces (i.e. the motor) may ignite flammable or combustible items and cause a fire or explosion, which can result in serious bodily injury. Keep the lawn mower a safe distance away from flammable or combustible items until surfaces that are hot have completely cooled. Do not store the lawn mower near flammable or combustible items.
A damaged blade or worn blade nut may break off the lawn mower assembly and cause serious injury. Replace the damaged blade or blade nut before using the lawn mower.

FOR ALL LAWN MOWERS

1. Avoid dangerous conditions – Do not use the lawn mower in the rain or when the grass is damp or wet.
2. Keep children, bystanders, and pets away – Always keep children and spectators a safe distance away from the lawn mower during operation and as the machine cools.
3. Dress properly – Always wear personal safety gear (i.e. glasses, rubber gloves, protective footwear, and dust masks) and proper clothing when using the lawn mower. Loose clothing, long hair, or jewelry may get caught in the moving parts. Wear a protective covering to contain long hair.
4. Use the right appliance – Do not use the lawn mower for any applications other than those for which it was intended.
5. Do not force the lawn mower – It will perform better with less likelihood of personal or mechanical injury if it is used at the rate for which it was designed.
6. Do not overreach – Keep proper footing and balance at all times.
7. Stay alert – Always be alert and watch what you are doing. Use common sense. Do not operate the lawn mower when you are tired or under the influence of alcohol or drugs.
8. Disconnect the lawn mower – Disconnect the lawn mower from the power supply when it is not in use, before servicing, when changing accessories, and when performing any other maintenance task.
9. Store idle lawn mower indoors – When not in use, the lawn mower should be stored indoors in a dry, locked place out of the reach of children.
10. Maintain the lawn mower with care – Keep cutting edges sharp and clean for best and safest performance.
    Inspect the lawn mower cord periodically and if damage is found have it repaired by an authorized service facility. Extension cords should also be inspected periodically and immediately replaced if damaged. Keep handles dry, clean, and free from oil and grease.

Electrical Safety

1. Ground fault circuit interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the lawn mower. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
2. To prevent electric shock, use only with an extension cord suitable for outdoor use, such as SW, SOW, STW, STOW, SJTW, or SJTOW.
   Before use, check that the extension cord is in good condition. When using an extension cord, make sure to use one heavy enough to carry the current your product will draw. For lengths less than 50 feet, a No. 14 AWG extension cord should be used. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

   Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:
   • Do not allow any part of the lawn mower to make contact with water while it is in operation. If the appliance becomes wet while turned off, wipe dry before starting.
   • Use only a UL-rated extension cord for outdoor, all-weather use. Do not use an extension cord over 100 ft (30 m).
   • Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.
     EXTENSION CORD CHART

     Cord Length:	50 ft (15 m)	100 ft (30 m)
     Min. Wire Gauge (A.W.G.):	14	12



3. To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). Use this appliance only with a polarized, UL-listed (CSA certified in Canada) extension cord recommended for outdoor use. The appliance plug will fit into a polarized extension cord only one way.
   If the appliance plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. The extension cord plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, extension cord receptacle, or extension cord plug in any way.
4. To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.
   Table 1. Method of Securing Extension Cord

5. Do not abuse the cord. Never pull the lawn mower by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.

Double-Insulated Appliances
In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means are provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a doubleinsulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe^® + Sun Joe^® dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words "Double Insulation" or "Double Insulated." The symbol (square within a square) may also be marked on the appliance.

DOUBLE-INSULATED: GROUNDING NOT REQUIRED. WHEN SERVICING, USE ONLY IDENTICAL REPLACEMENT PARTS.
This electric lawm mower is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions before servicing double-insulated appliances. Use this lawn mower only as described in this manual.

Safety Instructions for Walk-Behind Mowers

General Operation

• Read, understand, and follow all instructions on the machine and in the manual(s) before starting.
• Do not put hands or feet near or under the machine. Always stay clear of the discharge opening.
• Keep guards in place and in proper working order.
• Only responsible adults who are familiar with the instructions should be allowed to operate this machine.
• Clear the mowing area of foreign objects such as rocks, wire, toys, and other miscellaneous articles, which could be picked up and thrown by the blade. Stay behind the handle when the engine (motor) is running.
• Make sure that the mowing area is clear of bystanders before starting the machine. Stop the machine if anyone enters the area.
• Do not operate the machine while barefoot or while wearing sandals. Always wear substantial footwear.
• Always look down and behind before and while moving backward with the lawn mower.
• Never direct discharged material toward anyone. Avoid discharging material against a wall or other obstruction.
• Never leave a running machine unattended.
• Stop the engine (motor) and wait until the blade comes to a complete stop before cleaning the machine, removing the grass collection bag, changing accessories, or unclogging the discharge guard.
• Operate the machine only in daylight or in good artificial light.
• Do not operate the machine when you are tired or under the influence of alcohol or drugs.
• Never operate the lawn mower in wet grass. Always be sure of your footing; walk, never run, with the lawn mower.
• If the machine should start to vibrate abnormally, stop the engine (motor) and immediately check the machine to ascertain the cause. Vibration is generally a signal of trouble.
• Keep blades sharp.

• Keep hands and feet away from the cutting area.
• Always wear eye protection when operating the machine.
• Objects struck by the lawn mower blade can cause severe injuries. The mowing area should always be carefully examined and cleared of all objects prior to each mowing.
• If the lawn mower strikes a foreign object, follow these steps:

1. Stop the lawn mower by releasing the ON/OFF switch lever.
2. Unplug the power cord.
3. Inspect for damage.
4. Repair any damage before restarting and operating the lawn mower.

Slope Operation
Slopes are major factors related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not mow it.

• Mow across the face of slopes; never mow slopes following an up and down traverse. Exercise extreme caution when changing direction on a slope.
• Watch for holes, ruts, bumps, rocks, or other hidden objects. These may cause an unexpected slip or fall.
• Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident.
• Do not mow near drop offs, ditches, or embankments.
  You could lose your footing or balance.

Children
Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful care of a responsible adult other than the operator.
• Stay alert and turn the lawn mower off if a child enters the area.
• Never let children operate the machine.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of a child.

Service

• Keep all nuts and bolts tight.
• Never tamper with safety devices. Regularly check to ensure these devices are in place and in proper working order.
• Keep the lawn mower free from grass, leaves, or other debris buildup.
• Never make any adjustments or repairs with the engine (motor) running. Always unplug electric lawn mowers before adjusting, cleaning, or repairing.
• Check the grass bag components and the discharge guard frequently and replace with manufacturer's recommended parts when necessary.
• Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.
• Maintain or replace safety and instruction labels, as necessary.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Symbols	Descriptions	Symbols	Descriptions
	CPSC danger label.		Keep bystanders and children a safe distance away.
	Safety alert. Caution.		To reduce the risk of injury, user must read instruction manual.
	Wear eye and hearing protection. For protection against injury, wear ear defenders and safety goggles.		Do not expose the unit to the rain.
	Disconnect the mains plug if the cord is damaged or entangled.		Turn the machine OFF and disconnect it from the power supply before inspecting, cleaning, changing accessories, or conducting any other maintenance task.
	Thrown objects and rotating blade can cause severe injury.		Slip on slope hazard – Use extra caution when mowing on slopes to prevent slip and fall accidents.
	Severing of toes or fingers by rotary mower blade.		Keep extension cord away from cutting blades.
	Blades continue to rotate after machine is switched off.		Double Insulation.

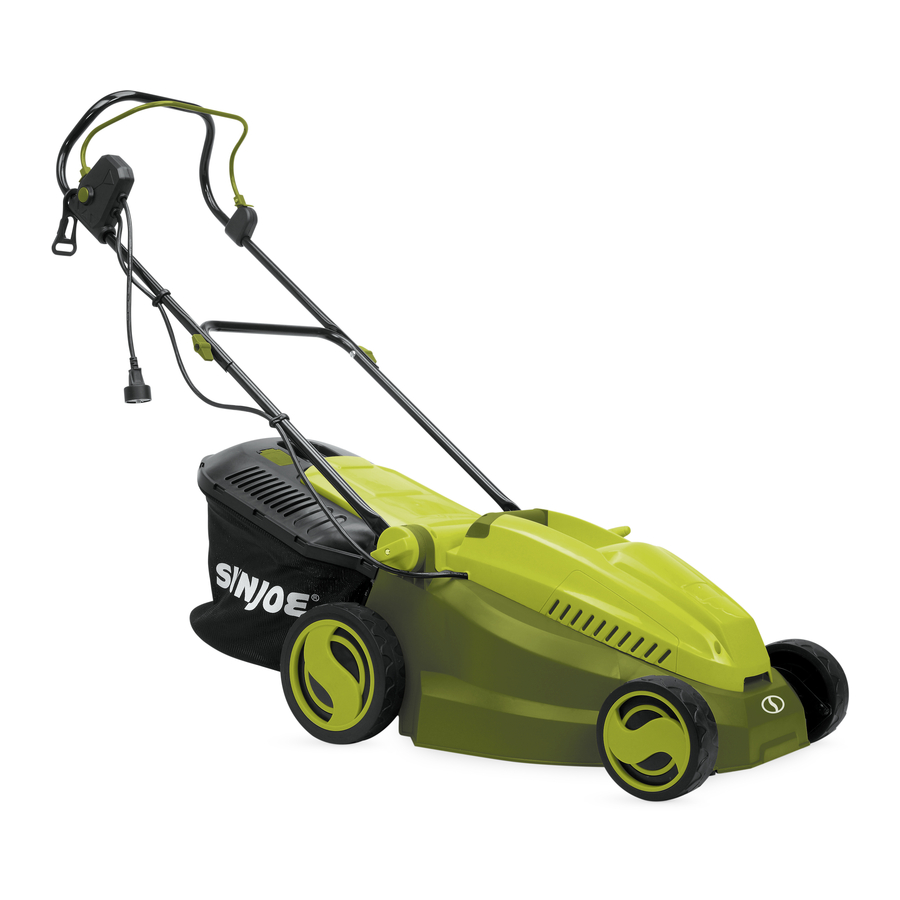

Know Your Electric Lawn Mower

Read the owner's manual and safety instructions carefully before operating the lawn mower. Compare the illustration below to the lawn mower in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

Technical Data

Unpacking

Carton Contents

• Electric lawn mower
• Upper handle
• Lower handle
• Upper handle knobs and bolts (2)
• Cord clips (2)
• Grass collection bag
• Manual and registration card

1. Carefully remove the lawn mower and check to see that all of the above items are supplied.
2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe^® + Sun Joe^® customer service department at 1-866-SNOWJOE (1-866-766-9563).
   NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new electric lawn mower. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Assembly

Do not connect to the power supply until assembly is complete. Failure to comply could result in accidental starting and serious personal injury.

Before performing any maintenance, make sure the tool is unplugged from the power supply. Failure to heed this warning could result in serious personal injury.

The product must be fully assembled before operation. Do not use a product that is only partially assembled or assembled with damaged parts. NOTE: Before using the lawn mower, follow these instructions to assemble the handle and the grass collection bag.

Handle Assembly

1. Unscrew the quick adjustment knobs on both sides of the unit. Fit each side of the lower handle over the threaded ends on the unit (Fig. 1).

2. Adjust the lower handle to the correct position for comfortable height by aligning the line on the mower body with one of the three lines on the end of the lower handle. Fit the quick adjustment knobs in place over the threaded ends, and tighten (Figs. 2 – 3).


   The line on the mower body must be aligned with one of the lines on the lower handle. And, the same line must be used for both sides of the unit.

3. Place the upper handle over the upper ends of the lower handle. Align the holes. Use the two sets of upper handle knobs and bolts to secure (Fig. 4).


4. Secure the power cable to the lawn mower using the two cord clips (Fig. 5).


3. Place the bulk of the extension cord on the lawn closest to the starting point.
4. Before starting the lawn mower, hold the handle assembly with both hands and tilt the handle downward to slightly raise the front of the lawn mower. This will reduce the risk of lawn damage during start-up (Fig. 11).


5. To start the lawn mower, press and hold the safety lock button while pulling the switch bar lever toward you. Once the machine powers on, release the safety lock button (Fig. 12).


Grass Collection Bag Volume Indicator

1. If the grass collection bag is empty or is not completely full with grass, the grass indicator window will remain open (due to the flow of air) or will flutter open and close as the grass accumulates in the bag (Fig. 14).
2. When the grass bag reaches its maximum capacity, the grass indicator window will remain closed (due to the restricted air flow). This signals that it is time to empty the bag (Fig. 14).


Mowing Tips

Inspect the area prior to mowing and remove all the stones, sticks, wires, and other debris that might be thrown by the rotating blade.
NOTE: A sharp blade will greatly enhance the performance of the lawn mower, especially when cutting tall blades of grass.

• Be sure to check the blade periodically for signs of wear and sharpen it at least once per year, as described in the maintenance section.
• In order to prevent electric shock, do not operate the lawn mower in damp or wet conditions.
• Do not mow in a circle. Travel back and forth across the lawn following the path outlined below (Fig. 15).
• When cutting thick grass, reduce your walking speed in order to allow for a more effective cut and a proper discharge of the clippings. For a healthy lawn, always cut off one-third or less from the total length of the grass. The average lawn should be approximately 1.5 to 2 in.
  (3.8 cm to 5 cm) long during cool months, and more than 2 in. (5 cm) long during hot months. If there is growth, the lawn should be cut in the fall.

• While mowing, make sure that the electric cable is always behind you and resting on the area of grass already cut.
• The lawn will look better if it is always cut to the same height and in alternate directions.
• When crossing any graveled area, release the switch bar lever to turn off the lawn mower. The stones can be picked up and thrown by the rotating blade.
• Set the lawn mower to the highest cutting height when mowing on uneven ground or in tall weeds.

  If you strike a foreign object, stop the motor and disconnect the power cord. Thoroughly inspect the lawn mower for any damage. Repair any damage before operating the lawn mower.

Overload Protection
The lawn mower has an internal cut off switch which will stop the operation of the motor temporarily if overloaded. This cut off switch will suddenly stop the motor from operating should the motor become too hot during the operation of the lawn mower.

1. Disconnect the lawn mower from the power supply and inspect blade for any obstructions.
2. Wait up to 2 minutes, or longer depending on ambient temperature and the operation being performed, before switching on the lawn mower and resuming normal operation.

   The mower blade will continue to rotate for a brief period after the unit has been switched off. Do not tilt or carry the unit while the motor is still running and do not touch the blade while it is still rotating. Failure to comply could result in severe personal injury.

Maintenance

Before cleaning, repairing, or inspecting the lawn mower, disconnect the power supply to the unit and verify that all moving parts have come to a complete stop.

General

• Always keep the lawn mower clean and free of grass, dirt, or other debris.
• Keep the handles dry, clean, and free of oil and grease.
• After each cutting session, remove accumulated grass clippings and debris using either a dry cloth or handbrush. You may also clean the equipment with a damp cloth and some soft, non-abrasive soap. Do not use cleaning agents or harsh solvents as they may damage the equipment's plastic components. Make sure that no water penetrates the equipment's interior as intake of water can destroy the switch/plug mechanism and the electric motor.
• Do not clean the lawn mower with running water, particularly with high-pressure water.
• Check all nuts, bolts, and screws for proper tightness before each use.
• Frequently inspect the grass collection bag for signs of wear and replace immediately with a genuine Snow Joe^® + Sun Joe^® part if damage is found.
• Replace excessively worn or damaged parts immediately.
• To maximize your lawn mower's longevity, all screwed parts, including the wheels and axles, should be cleaned and lubricated. There are no parts inside the equipment which require additional maintenance or lubrication.

Blade Maintenance

The mower blade is sharp and can cause severe personal injury if handled incorrectly. Wrap the blade or wear protective gloves, and use extra caution when handling.
The steel blade is designed to provide a fine cut in long or tough grass. Deterioration in the quality of cut indicates blade wear or damage. Follow these steps to determine if the blade needs to be resharpened or replaced:

1. Disconnect the electrical supply to the lawn mower.
2. Turn the lawn mower on its side to expose the underside of the blade housing.
3. Check the blade.
   1. If the blade is blunt or has minor wear, then resharpen. Please call Snow Joe^® + Sun Joe^® customer service for assistance at 1-866-SNOWJOE (1-866-766-9563).
   2. If the blade shows signs of major wear or damage (i.e. gouged, bent), then replace. Please call Snow Joe^® + Sun Joe^® customer service for assistance at 1-866-SNOWJOE (1-866-766-9563).

      An excessively vibrating lawn mower indicates that the blade is not properly balanced or has become deformed from striking an object. In this case, the blade must be repaired or replaced. Please follow the proper maintenance procedures for blade care or call the Snow Joe^® + Sun Joe^® customer service center for assistance at 1-866-SNOWJOE (1-866-766-9563).

Blade Replacement

Only use original replacement parts specified for this lawn mower.
You can purchase a replacement blade (Model iON16LM-BLD) and other genuine replacement parts by ordering online at snowjoe.com or, to order by phone, contact Snow Joe^® + Sun Joe^® customer service at 1-866-SNOWJOE (1-866-766-9563). The use of parts that do not meet the original equipment specifications may lead to improper performance of the lawn mower, may compromise operator safety, and will void the manufacturer's warranty.

1. Disconnect the electrical supply to the lawn mower.
2. Turn the lawn mower on its side to expose the underside of the blade housing.
3. Wear heavy-duty gloves, or use a cloth to grip the blade.
4. To remove the blade bolt, hold the blade firmly by one hand, and use a spanner (not supplied) loosen the blade bolt by turning it counterclockwise (Fig. 16).

5. Fit the new blade, the washer and the bolt back on following the same steps in reverse order (Fig. 17).


Storage

Follow the steps below to prepare the lawn mower for storage:

1. Disconnect the power supply to the lawn mower.
2. Clean the lawn mower with a damp cloth or hand brush.
3. Inspect the lawn mower carefully for worn, loose, or damaged parts. Check connections and screws and tighten if necessary. Pay special attention to the mower blade and replace/sharpen if it shows signs of wear. Refer to the Maintenance section.
4. Store the lawn mower indoors in a dry, clean, and cool area out of the reach of children. Do not store the unit next to corrosive materials, such as fertilizer and rock salt.
5. Wipe the extension cord to remove any foreign substances, such as oil or stains. Replace the extension cord immediately if it is cut or damaged in any way.
6. Wind the cord in a series of equal loops to prevent it from tangling.
7. Do not cover the lawn mower with a solid plastic sheet. Plastic coverings trap moisture around the lawn mower, which can damage the unit.

Service + Support

If your Sun Joe^® MJ402E electric lawn mower requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product. These are found on the decal affixed to the housing or handle of your lawn mower. Copy these numbers into the space provided below.

Troubleshooting

Only a company specialist may be able to correct faults that cannot be rectified with the aid of this table. Please call the Snow Joe^® + Sun Joe^® customer service center at 1-866-SNOWJOE (1-866-766-9563).
