PL002

Portable Heavy Duty

Power Wheelchair

Owner's Manual

Table of Contents

Need help?

Do you have a question about the PL002 and is the answer not in the manual?

Questions and answers

Summary of Contents for FOXTR PL002

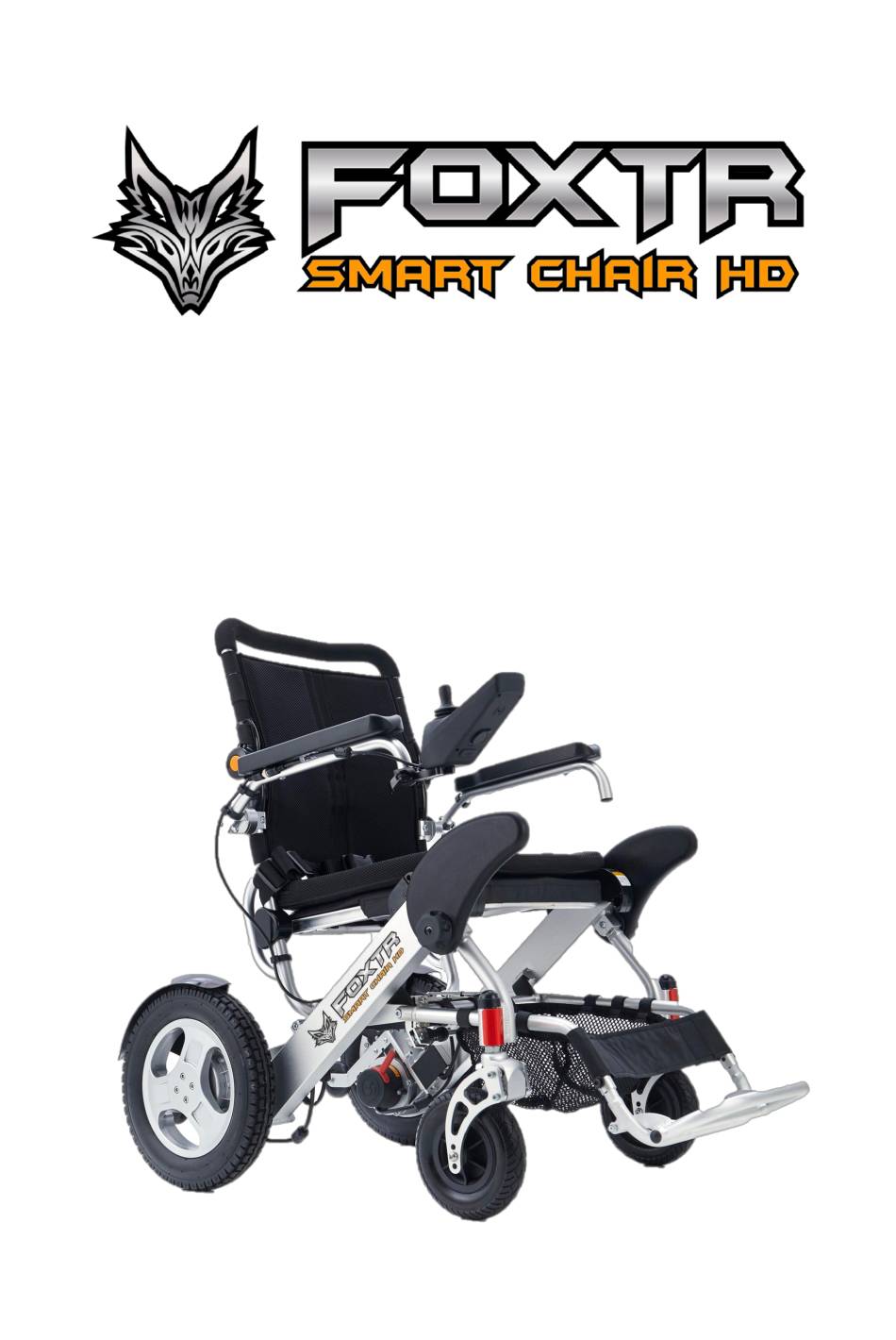

Page 1 PL002 Portable Heavy Duty Power Wheelchair Owner’s Manual...
Page 2: Table Of Contents
Contents …………………………………………………………………………2 I. INTRODUCTION II. GUIDANCE FOR USE ……………………………………………………………………3 III. PRODUCT SAFETY SYMBOLS ……………………………………………………..4 IV. TECHNICAL SPECIFICATIONS ……………………………………………………….5 V. FEATURES ………………………………………………………………………………...6 VI. ELECTROMAGNETIC INTERFERENCE WARNING ……………………………...8 VII. SAFETY …………………………………………………………………………………...9 VIII. INSTALLATION GUIDE ……………………………………………………………..16 IX. OPERATION GUIDE ……………………………………………………………………18 X. BRAKING …………………………………………………………………………………21 XI.
Page 3: Introduction
FOXTR Mobility is not liable for any property damage or bodily injury which may occur as a result of improper use of this power wheelchair or failing to follow the instructions in this owner’s manual.
Page 4: Guidance For Use
Ⅱ.Guidance for Use This manual must be read and understood completely before your first use. If you have difficulty in understanding the warnings, notes and instructions in this owner’s manual, or require additional assistance, please contact your authorized provider or distributor to obtain professional guidance and help.
Page 5: Product Safety Symbols
Ⅲ.Product Safety Symbols The following symbols are used to identify warnings, mandatory actions and prohibited actions. It is essential that you fully understand and completely familiarize yourself with these symbols before operating Smart Chair for the first time. Read and follow the instructions provided in this manual. Safety warning sign or an indication of a dangerous operation that may endanger your safety or the safety of others.
Page 6: Technical Specifications
Ⅳ.Technical Specifications General Dimensions (Unfolded): L x W x H 43.3x24.4 x 37in / 1100x 620 x 940 mm Dimensions (Folded): L x W x H 15.74x 24.4x 30.7 in / 400x 620x 780 mm Suggested User Weight Max: 330lbs (150kgs) Weight 66.7lbs (30.3kgs) with battery /61.38lbs (27.9kgs) without battery...
Page 7: Features
Ⅴ.Features 1. Upper Backrest 5. Joystick 9. Leg Guard 13.Footrest 2. Back Cushion 6. Lithium Battery 10. Frame 14. Front Wheel 3. Backrest joint 7. Safety belt 11. Splash Guard 15.Storage Basket 4.Armrest 8. Seat Base 12. Motor Wheel...
Page 8 Ⅴ.Features 16. Folding Release Lever 19. Control Panel Cable Clip 17. Anti-Tipping Wheels 20. Kick Stand 18.Electromagnetic Brake Levers...
Page 9: Electromagnetic Interference Warning
Ⅵ.Electromagnetic Interference Warning The power wheelchair may be affected by electromagnetic interference (EMI), which may cause damage or interruption to the operation of the chair. It is important for you to understand the instructions which can help you take protective measures against the risk of interference. The sources of electromagnetic waves come from broadcasting stations, TV stations, radio transmitters, two-way radios (such as walkie-talkies), cellular phones and computers.
Page 10: Safety
VII.Safety Usage Safety Guidelines • Check all electrical and control connections to ensure they are secured safely and firmly. • Check battery levels regularly and ensure the battery is charged immediately when needed. • Keep tools and any metal objects away from the negative and positive poles of the battery. Short-circuits or electric shock may occur when the two poles are accidentally contacted.
Page 11 VII.Safety Static Position When the chair is inactive even for a moment; the power must be off (Fig. A2). This will: • Prevent the control panel from being activated by accidental touch which may cause the chair to move unintentionally. •...
Page 12 VII.Safety Note: When the chair is wet, immediately pull out the battery and allow it to dry naturally. Put the battery back after the chair is completely dried. When operating on wet or frictionless ground surfaces, please carefully move at a slow speed and follow the safety guidelines below: •...
Page 13 VII.Safety Vehicle Transport Please be aware that it is at your own risk and is not advisable to sit on the Smart Chair when taking any forms of transportation such as cars, buses, trains, planes or ships. If you must take such forms of transportation while remaining in the chair, it is extremely important that you secure your positioning waist belt and power off the chair and push the brake lever to “Drive”...
Page 14 VII.Safety Getting On/Off Whenever moving your body, it is recommended to have a supporting point that is higher than the seat cushion. To avoid and reduce the chance of falling, please be aware of the following: • Before getting on and off the chair, ensure that you lift up the armrest and lower the leg guard. •...
Page 15 VII.Safety Stationary Obstacles Navigating over obstacles such as ramps, slopes, curbs, raised or uneven surfaces, pot holes and rough roads can be hazardous. Extreme caution is needed to avoid tipping the chair over. It is important to climb or descend an obstacle slowly, cautiously and perpendicularly. Failing to do so may result in damage to the chair or causing bodily harm.
Page 16 VII.Safety Load Limit • Max Load of the chair: 330lbs (150kg) • Do not exceed. • The safe load of the backrest: 165lbs (74.8kg) • Do not press down or lift up the backrest. • Under no circumstances should the user do weight training while using the chair. •...
Page 17: Installation Guide
VIII.Installation Guide Positioning Waist Belt The positioning waist belt is for holding your hips properly against the back of the seat and must be strapped 45° over your hips (Fig. C) to prevent the user from falling off the chair. Please wear the waist belt at all times while seated.
Page 18 VIII.Installation Guide Mounting the Control Panel The control panel can be mounted on the right or left armrest. As shown in Fig. D1, put the quick release clamp of the control panel onto the metal grab bar and lock the quick release handle tightly and securely.
Page 19: Operation Guide
IX.Operation Guide Control Panels The Control Panel comprises of the following: Function: Description Time The current time is displayed by LCD, Beijing time is displayed by default. If the time display is different from your time zone, you can modify the time in the setting menu. Electric quantity The use of color LCD display shows the remaining battery display...
Page 20 IX.Operation Guide When the LED light flashes intermittently, it indicates specific diagnostic troubles referred in the table below: 1. If the battery widget displays a red colour, please charge as soon as possible, reduce the use of driving function, change to the push model. If you fail to comply with this condition, you may be unable to leave a potentially unsafe location like a road.
Page 21 IX.Operation Guide Movement Control lever operation Forward Push the control lever forward Backward Pull the control lever backward Right Push the control lever to the right Left Push the control lever to the left Release the control lever gradually (the chair Stop will slow down to stop safely) Forward...
Page 22: Braking
Ⅹ. Braking After any adjustment, repair or maintenance, check all components and parts for tightness before use to avoid damage or injury. Free wheel Electromagnetic Brake Lever Drive Electromagnetic Brake System The chair has 2 braking modes which can be selected by pushing the brake levers to “Drive”” or “Free wheel”...
Page 23: Battery
XI.Battery Do not use batteries with different amp-hour (Ah) capacities. Do not mix use of old and new batteries. Always replace both batteries at the same time. Keep tools and other metal objects away from battery terminals. If contacted, short- circuit or electric shock may occur and cause injury.
Page 24 XI.Battery Battery Maintenance The battery’s life and performance may be affected by temperature, condition of the battery, and the weight of the user. It is recommended that you charge the battery, when the lowest level of the LED light on the control panel flashes. Not charging it at that point may damage the battery and reduce it's service life.
Page 25 XI.Battery Mounting the battery: 1. Hold the battery grip and plug in the battery with the battery bottom aligned to the mouth of the battery holder (Fig. E3). When a click sound is heard, the battery has been mounted firmly. Charging the Battery The battery can be charged with normal AC power (AC 110-220 V, 50-60 Hz).
Page 26 XI.Battery Over-discharge Protector The lithium battery will be permanently damaged if the battery’s capacity has been completely discharged. Therefore, Smart Chair is equipped with an over-discharge protector. When the lithium battery is running out, the protector will cut off the circuit automatically and the controller will stop working.
Page 27: Unfolding And Folding
XII.Unfolding and Folding After any adjustment, repair or maintenance, ensure all components are securely tightened. When lifting the chair, it is strongly recommended to get the user off the chair before lifting or handling the chair. If absolutely necessary to handle the chair and yourself together, please exercise extreme caution and have at least two attendants to assist in lifting the chair.
Page 28 XII.Unfolding and Folding 4. As shown in Fig. F4, press the backrest adjusting button and turn the back rest in the direction shown in the figure until a click sound is heard. 5. Mount the control panel and plug in the 4 –pin control cable in accordance with Fig.
Page 29 XII.Unfolding and Folding Folding 1. Remove the control panel. (Fig. F8) 2. Press the backrest adjusting button (Fig. F9) and turn the back rest in the direction as shown in Fig. F10 4.Rotate the armrest as shown in Fig. F11. 5.
Page 30 XII.Unfoiding and Folding 6. Hold the folding lever (Fig. F13) and push the backrest forward (Fig. F14). 7. Press the chair tightly as shown in Fig. F15 until it is fully closed as shown in Fig. F16. Anti-Tipping Wheel 1. As shown in Fig. G1, press the anti-tipping wheel button. push out the anti-tipping wheel to the position of the hole for it to lock.
Page 31: Troubleshooting
XIII.Troubleshooting The control panel will display a number of possible trouble alerts by means of the LED light. When the LED light is green, the chair is trouble-free. When a problem occurs, the LED light will flash. When a “Trouble” LED light flashes, turn off the power of the chair and turn it on again. If the flashing “Trouble”...
Page 32 XIII.Troubleshooting The fifth level LED light flashes: Push the electromagnetic brake lever The electromagnetic brake is in to “Drive” position, please refer to “Free wheel” Position and the chair instructions on Page 20 will not move When the power is off, and the Electromagnetic electromagnetic brake lever is in Contact the customer service to...
Page 33: Warranty
Invoice and warranty card are required for service within the warranty period, otherwise all repair costs will be charged. FOXTR will repair or replace at our option to the original purchaser, free of charge, any of the warranty included items being examined by an authorized representative of FOXTR and found defective in material and/or workmanship.
Page 34 Disclaimer Thank you for purchasing the FOXTR Smart Chair HD. FOXTR disclaims all responsibility for any personal injury or property damage as a result of improper or unsafe use of this chair. If you have any questions about Smart Chair and its safe operation, please feel free to contact your...
Page 35: Packing List
XV.Packing List Name Remark Main wheelchair frame Lithium battery Joystick control panel Charger Instruction manual Storage basket Certificate of inspection/warranty card...
Page 36 FOXTR Mobility Scooters Address: 130 Bass Pro Mills Dr, Unit 62, Concord, Ontario L4K 5X2, Canada Phone Number: +1-905-532-9494 E-Mail: info@vitalmobility.ca...
