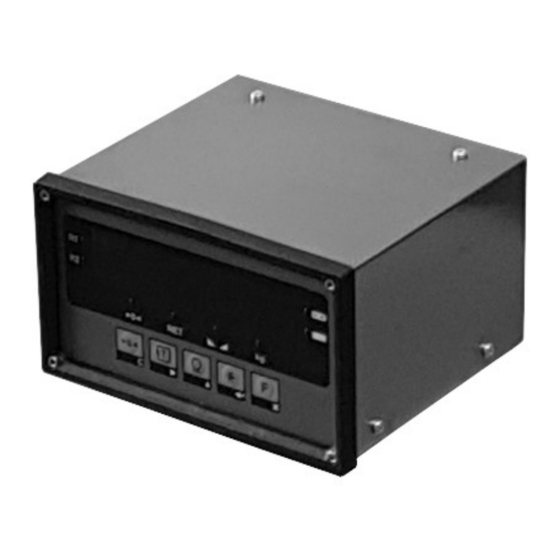

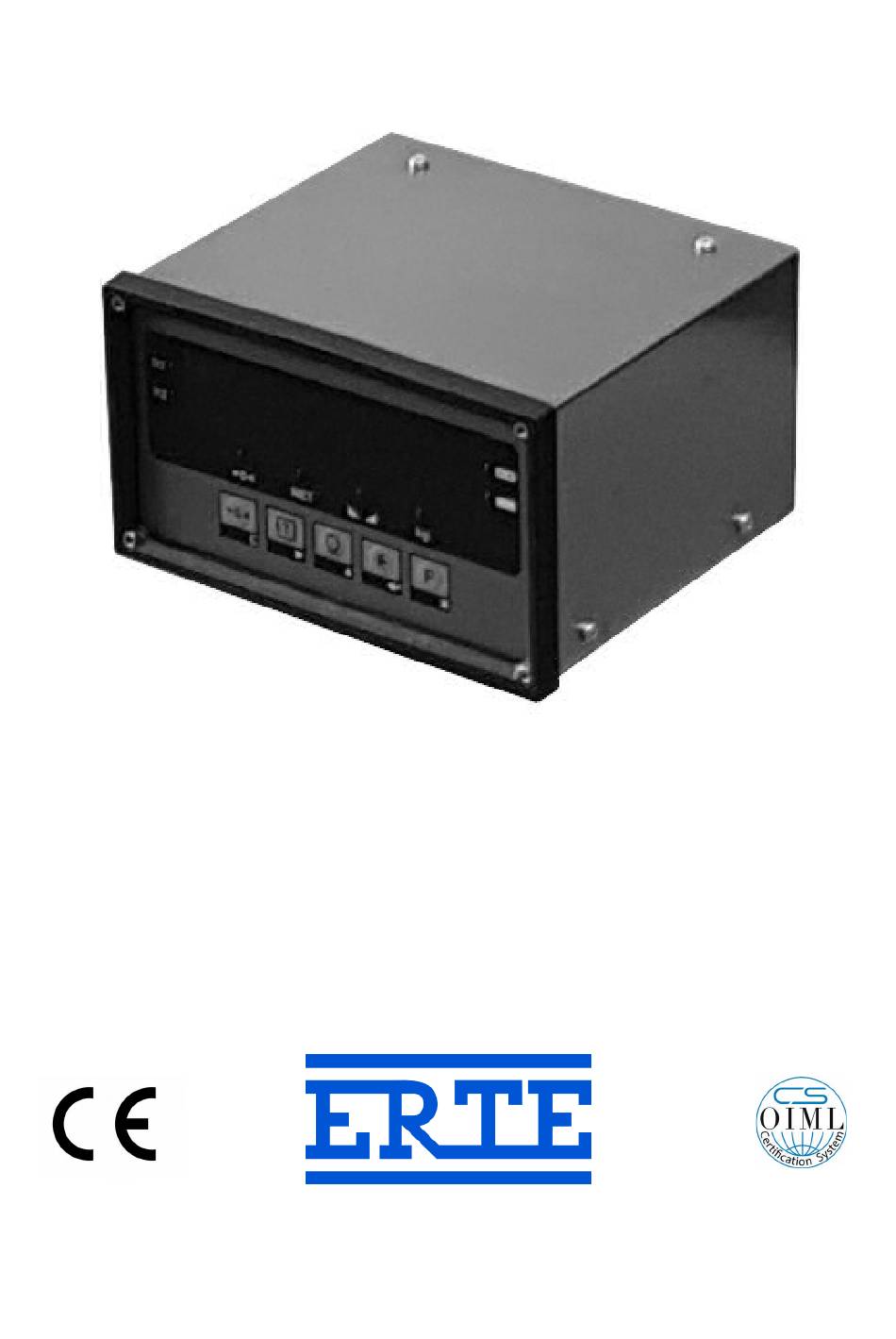

- Page 1 B3 INDICATOR Version P.31 DE-19-NAWID-PTB006 R76/2006-A-DE1-2019.06 www.erte.com.tr...
- Page 2 ERTE® Endustriyel Elektronik Sanayi ve Ticaret Limited Sirketi Address IZMIR / TURKEY Telephone +90 232 259 7400 +90 232 259 3960 E-mail info@erte.com.tr Web site www.erte.com.tr...
-
Page 3: Table Of Contents
Contents 1. MATTERS TO CONSIDER........................... 2 2. INTRODUCTION............................3 Interface............................... 3 Keys and Functions..........................3 Signs and Meanings..........................4 Connection Diagram............................ 5 Notes..............................6 Dimensions..............................7 3. WEIGHING PARAMETERS AND ADJUSTMENT..................8 Weighing Parameters..........................9 Adjustment..............................10 4. SER MENU (SER2, SER3)......................... 11 5. -
Page 4: Matters To Consider
1. MATTERS TO CONSIDER The device must be operated from an earthed socket. ● It should not be connected to the same power line with powerful electrical ● machines and should not be operated near Make sure that the electrical connection is cut before the cover of the ●... -
Page 5: Introduction
2. INTRODUCTION Interface * Display digit height is 25 mm Keys and Functions APPLICATION MENU NUMERIC INPUT SELECT FROM EXPLANATION FUNCTION FUNCTION FUNCTION LIST FUNCTION Select 0 if it is in Zero Key Zero weight Exit Menu Reset value the list Tare Key Show Previous Go to the next... -
Page 6: Signs And Meanings
Signs and Meanings Range indicator: If configured as a multi range instrument, indicates the current weighing R1, R2 range. Center-of-zero indicator: Indicates the deviation from zero is not more than ±0.25 e. Net indicator: Indicates that a tare device is in operation and the displayed weight value is a net weight. -
Page 7: Connection Diagram
ERTE Remote Display Connection 1, 2, 3 Not connected Not connected Remote Display 4, 5, 6, 7, 8, 9 Value PC Connection RS-232 USB PC Connection Note: USB driver must be downloaded and installed from www.erte.com.tr before the cable is connected. -
Page 8: Notes
Notes In this position the calibration is OFF / LOCKED • In this position the calibration is ON / UNLOCKED. • 3. Optional RS-232 output must be connected from Op1 • Relay option must be connected from Op2 •... -
Page 9: Dimensions
Dimensions... -
Page 10: Weighing Parameters And Adjustment
3. WEIGHING PARAMETERS AND ADJUSTMENT In order to setup weighing properties, follow these steps: • Switch off the device and disconnect the power cable. • Dismount the front panel and put the adjustment switch in UNLOCKED position. • Mount the front panel and switch on the device. •... -
Page 11: Weighing Parameters
Weighing Parameters With on display press key. Weighing parameters are edited one at a time. After that each press of key moves to the next parameter. Edit the values using the keys. cAP_1 In single range instruments, this is the maximum capacity. Capacity 1 (Max 1) In multi (two) range instruments, this is the maximum capacity of the first range (smaller range). -
Page 12: Adjustment
Adjustment AdJuSt Press key while is displayed. There are 3 options for adjustment: This option may be used when only dead load (zero point) adjustment is needed. Zr_cAL Dead load adjustment While this message is displayed, unload the platform and press key. -
Page 13: Ser Menu (Ser2, Ser3)
4. SER MENU (SER2, SER3) SEr2 To change the RS-232 related parameters, use the menu; Use the menu to change the USB related parameters . See b3-serial_communication.pdf for detailed information . SEr2 SEr3 Press key to enter the menu. (also applies to Select the serial port function and press key. -
Page 14: Alibi Menu
5. ALIBI MENU Use this menu to view alibi memory records on the device. Alibi memory capacity is 9999. When the memory is full, the oldest recording is deleted while a new recording is made. It is not possible to delete records from Alibi memory. ALıbı... -
Page 15: Language And Information Menus
Information Menu Use this menu for information about firmware. ınFo Press key to enter menu. Press key to move on to the next information. ErtE Manufacturer Model 1.00 Software version trAd. 1 Compatibility mode (1:OIML, 0:Industrial) P.30 Build information After the last information is displayed, the menu is exited. -
Page 16: Error And Warning Messages
7. ERROR AND WARNING MESSAGES Message Meaning Solution Err 1 No adjustment found Make adjustment Err 2 Fault in the measuring circuit Call service The load cell is not connected or the Err 3 Check load cell connection connection is faulty If the platform is full, empty it, turn Err 4 Failed to zero at power-on...
