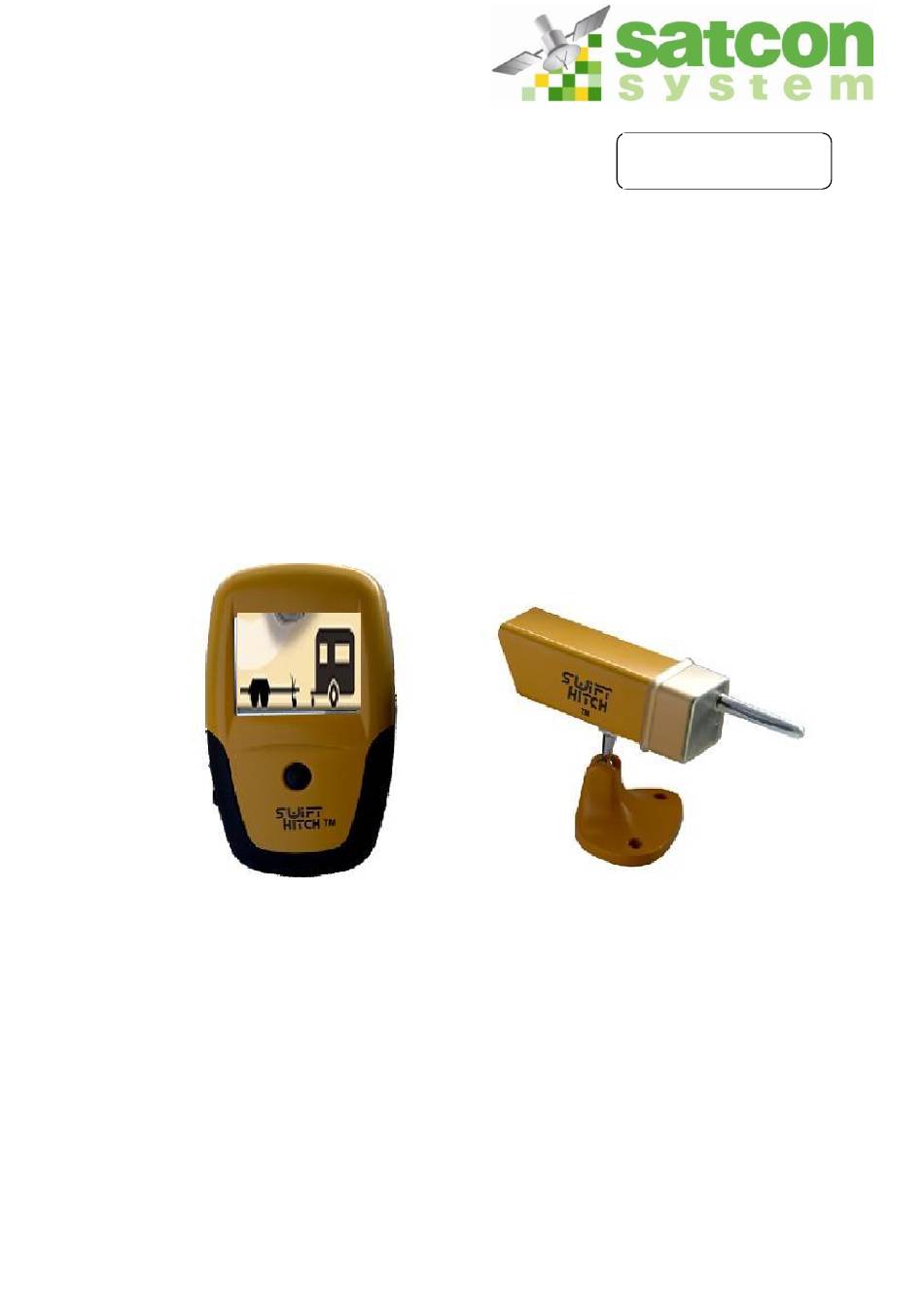

- Page 1 English Swift Hitch User’s Manual Portable Wireless Camera System With Infrared Night Vision Model: SH01 Please read this manual carefully und thoroughly before any attempt to operate this product and retain it for your future reference. Copyright, 2010, satconsystem...
-
Page 2: Table Of Contents
TABLE OF CONTENTS INTRODUCTION Notice Warranty Restrictions Maintenance PRODUCT Package Contents Feature Locations FIRST TIME USAGE 7-10 Charging the Camera and Receiver Using the Camera Night Vision SPECIFICATIONS TROUBLESHOOTING IMPRINT Copyright, 2010, satconsystem... -
Page 3: Introduction
INTRODUCTION Thank you for purchasind this wireless camera kit. This product works at ISM-2.4GHz frequency band which could be legally used worldwide without permission. We feel confident that you will be pleased with the quality and features of this product.The camera features image sensor and a transmitting module to capture the image and transmit them wirelessly. -
Page 4: Restrictions
Restrictions 1. DO NOT use this product to violate one's privacy. Monitoring one's activities without consent is illegal and this product is not designed and manufactured for such purpose; 2. DO NOT put this product near any medical equipment. Radio waves might potentially cause breakdown of electrical medical equipment. -
Page 5: Product
PRODUCT Package Contents This package comes with the following items. Please check whether they are all included in the packaging box, if one or some is missing, contact the retailer for replacement. 1) 2,4 GHz wireless camera (1x) 2) Weatherproof cover for camera (1x) 3) 2,4 GHz wireless receiver (1x) -
Page 6: Feature Locations
Feature Locations 1. Camera 2. Receiver Copyright, 2010, satconsystem... -
Page 7: First Time Usage
FIRST TIME USAGE Charging the Camera and Receiver 1. Load a Li-battery to the battery compartment with its polarities matched. 2. Connect the camera/receiver with auto cigarette lighter by the "Y" shaped charging cable. Your camera and receiver are being charged. A full charge will take about 2.5 hours for camera and for receiver respectively. -
Page 8: Using The Camera
Pressing POWER ON/OFF button momentarily can switch between reverse and non reverse image.. Notes for camera: If the battery is exhausted, please recharge it with the charging cable. Always keep weatherproof cover fitted regardless of conditions. CAMERA LED INDICATOR STATUS Red on Charging when Power off... -
Page 9: Night Vision
2. Mount hte Magnetic Camera on your tailgate, and then adjust it to a suitable angle 3. Watching the back view of the car via the LCD display. Hitch your ride. Note: einem The Velcro supplied for those customers who desire to attach the display to vehicle dashboard Night Vision The built-in Infra-red lights in camera provide night vision for low light conditions. -
Page 10: Specifications
Specifications ITEMS VALUE 1/3“ CMOS Imaging Sensor CMOS 628 x 582 (PAL); 510 x 492 (NTSC) View Angle 55° Minimum Illumination 5 Lux/F1.2 & 0Lux (IR ON) ISM 2.400 GHz – 2.483 GHz Transmission Frequency Transmission Power 10mW/CE Modulation Type Bandwidth 18MHz Power Supply... -
Page 11: Troubleshooting
TROUBLESHOOTING When you experience the operation problems, please check and try the following yourself before claimin that it is the defective product or consulting the experienced technician. Copyright & Imprint This Manual is the Property of Satconsystem. Excerpts, copies and/or changes require written authorization from Satconsystem.
