E-Z UP SKYFUZE LED BALLOON LIGHT User Manual

Before Using Your SKYFUZE LED Balloon Light Please Read All Instructions:
WARNING: When using portable luminaires outdoors, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and personal injury, including
the following:
a) Use only 120V NEMA 5-15 three-wire outdoor extension cords that have three-
prong grounding plugs and grounding receptacles that accept the appliance's plug.
b) Ground Fault Circuit Interrupter (GFCI) protection is to be provided on the
circuit(s) or outlet(s) to be used for the portable luminaire. Receptacles are available
having built-in GFCI protection and are able to be used for this measure of safety.
c) Use only with an extension cord for outdoor use, such as an extension cord of
cord type SEW, SEOW, SEOOW, SOW, SOOW, STW, STOW, STOOW, SJEW, SJEOW,
SJEOOW, SJW, SJOW, SJOOW, SJTW, SJTOW, or SJTOOW
SAVE THESE INSTRUCTIONS!
1.0 SAFETY INFORMATION
WARNING – Electrical Shock
• Always disconnect the Light unit from the power source when not in use and
prior to moving, failure to do so may result in electrical shock, injury or death.
• The light is rated at IP42 and can be used in damp locations when mounted on
the tripod.
• DO NOT touch the light with wet hands to avoid the risk of electrical shock.
• ONLY use 120V NEMA 5-15 three-wire outdoor extension cords that have three-
prong grounding plugs and grounding receptacles that accept the appliance's plug.
WARNING – Weather and Environmental Conditions
• DO NOT operate in direct rain or snow.
• DO NOT operate when mounted on the tripod in winds that EXCEED 25 MPH,
for use in winds exceeding 15 MPH the tripod must be staked or weighted with
sandbags to anchor to the ground.
• Always use in a well-ventilated area.
3.0 OPERATION (Continued)
Tripod set-up and operation (Optional Accessory)
• Always Set up the tripod on a flat level
the RED limit line this could cause the
surface, ensure the tripod legs are fully
tripod to be unstable and cause damage or
extended and the screw knob on the hub
injury, securely tighten the locking knob,
slide connecting the legs to the center tube
repeat for the second section.
is tightened so the legs do not move.
• To Retract the tripod, grip the section to be
• Remove the tripod from its carry bag, stand
retracted, hold it firmly whilst loosening the
the tripod in its upright position with the
locking knob, keep a firm grip otherwise
legs downward and the light mount
the section will drop rapidly, a pinch point
receptacle at the top.
may occur that could cause hand injury.
• Loosen the bottom knob on the sliding
• Once the section is retracted tighten the
center hub, slightly open the legs and then
locking knob repeat for the second section.
slide the hub downward until the 3 legs are
• To fold and store, if the light is fitted, power
fully extended, tighten the hub knob to
off the light fixture and unplug, remove the
secure the legs in place.
light fixture and aside.
• Mount the light fixture with the tripod
mount adapter fitted as per diagram,
loosen the light clamp screw at the top of
the tripod, insert the mount into the tripod
receptacle and tighten the tripod clamp
locking screw.
• To extend the tripod, loosen the two knobs
that secure the sliding sections, extend one
section at a time, once one section is at the
desired height, do not extend further than

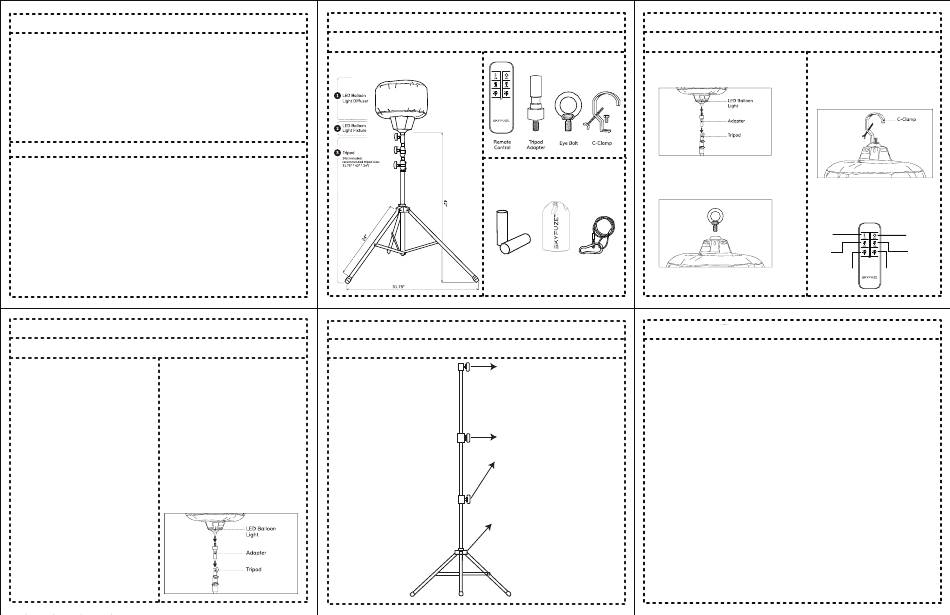

2.0 PRODUCT DESCRIPTION
The LED Light kit consists of:
.
3.0 OPERATION (Continued)
Tripod set-up and operation (Optional Accessory)
Loosen the knob on the
sliding hub and slide
upwards ensuring the three
legs fully closed back to the
storage position, tighten the
leg hub knob the lock the
legs in position, when closing
the legs take care to avoid
pinching or injuring hands.
Place the tripod in the carry
bag for safe storage and
transportation.
WARNING
Do not extend past the red lines
3.0 OPERATION
Mount the light securely using one of the mounting accessories:
Tripod Mount – Screw the adapter into the base of
the light fixture, ensure the mount is tightly fitted,
before fitting to the tripod ensure the tripod is
securely located as described in section 1.3.
Eye Bolt – Screw the Eye Bolt into the base of the
Also included are a Light carry case, AAA
light fixture ensuring the Eye Bolt is fully
Batteries for RC and safety cable to anchor to an
tightened, ensure the intended mounting
adjacent infrastructure fitting when hanging, the
location is fixed, stable and can support the
6ft Tripod is available separately.
weight of the fixture.
AAA Batteries Carry Case Safety Cable
Light Power and Operation - The light is powered
Always use Safety Cable when hanging or mounting
on/off by plugging or unplugging the light into a
the Light with C-Clamp and Eye Bolt accessories.
standard US 120v NEMA 5-15 3 pin socket.
4.0 WARRANTY INFORMATION
3-YEAR LIMITED WARRANTY
The LED Balloon Light and associated parts purchased in the United States from an
Loosen and tighten the
authorized dealer will be warrantied free from manufacturing and material defects for a
light clamp to secure period of three years for leisure and non-commercial applications from the date of
purchase, subject to exclusions detailed below.
the light into the tripod.
The LED Balloon Light will be warrantied free from manufacturing and material defects for
a period of one year for rental and commercial applications from the date of purchase,
subject to exclusions detailed below.
Loosen and tighten the
To claim warranty all products must be registered within 90 days of purchase, please retain
shaft extension screws to proof of purchase.
extend and retract the
The product part number and serial numbers can be found on the side of the fixture,
please retain these numbers and quote when ordering parts, require assistance or claiming
tripod.
warranty
During the Warranty period any authorized dealer will, free of charge repair or replace at
the manufacturers option any product or part deemed defective due to manufacturing
workmanship or material defects as supplied.
Loosen and tighten the
Any replacement parts will be covered for the balance of the products warranty period
sliding hub screw to
extend and retract the
WARRANTY EXCLUSIONS
tripod legs.
• Failures other than defects due to manufacturing workmanship or material defects which
are the result of misuse and abuse are not covered by this warranty.
• Failures due to the use of parts that are not genuine approved parts will not be covered
by this warranty.
• The Balloon Diffuser is considered a consumable item and as such is not covered by this
warranty.
• Any Modifications or non-approved parts are excluded from the warranty.
C-Clamp – Locate the C-Clamp onto
the Base of the light fixture, ensuring
the anti-turn flange is located in the
base slot, insert the bolt into the
screw thread and tighten using the
included wrench
.
The C-clamp should only
be used on a pole with a
2in outside diameter,
ensure the intended
mounting location is
fixed, stable and can
support the weight of
the fixture.
RF Remote Control - Used to switch
the light on/off, pre-set brightness
settings and continuous dimming from
10% to 100% brightness.
ON
OFF
50% 100%
Decrease Brightness
Increase brightness
