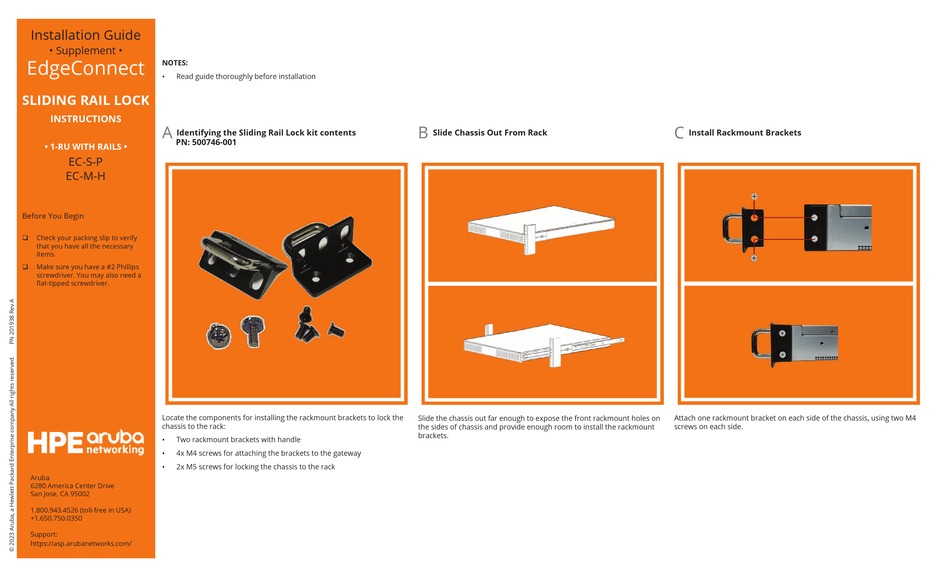

Installation Guide
• Supplement •
EdgeConnect
NOTES:
•
Read guide thoroughly before installation
SLIDING RAIL LOCK
INSTRUCTIONS
A
Identifying the Sliding Rail Lock kit contents
PN: 500746-001
• 1-RU WITH RAILS •
EC-S-P
EC-M-H
Before You Begin
Check your packing slip to verify
that you have all the necessary
items.
Make sure you have a #2 Phillips
screwdriver. You may also need a
fl at-tipped screwdriver.
Locate the components for installing the rackmount brackets to lock the
chassis to the rack:
•
Two rackmount brackets with handle
•
4x M4 screws for attaching the brackets to the gateway
•
2x M5 screws for locking the chassis to the rack
Aruba
6280 America Center Drive
San Jose, CA 95002
1.800.943.4526 (toll-free in USA)
+1.650.750.0350
Support:
https://asp.arubanetworks.com/
B
Slide Chassis Out From Rack
Slide the chassis out far enough to expose the front rackmount holes on
the sides of chassis and provide enough room to install the rackmount
brackets.
C
Install Rackmount Brackets
Attach one rackmount bracket on each side of the chassis, using two M4
screws on each side.
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for HPE EdgeConnect EC-S-P
- Page 1 Installation Guide • Supplement • EdgeConnect NOTES: • Read guide thoroughly before installation SLIDING RAIL LOCK INSTRUCTIONS Identifying the Sliding Rail Lock kit contents Slide Chassis Out From Rack Install Rackmount Brackets PN: 500746-001 • 1-RU WITH RAILS • EC-S-P EC-M-H Before You Begin Check your packing slip to verify...
- Page 2 Installation Guide • Supplement • EdgeConnect SLIDING RAIL LOCK Slide Chassis Back onto Rack Lock Chassis onto Rack INSTRUCTIONS • 1-RU WITH RAILS • EC-S-P EC-M-H Slide the chassis back to where it can be attached to the rack. Lock the chassis onto rack on each side with the provided M5 screw through the center hole of the rackmount bracket Aruba 6280 America Center Drive...
