MCU-PUSH Radio iwireless interface for devices with dimmable input push dim INDEX 1 - PRODUCT FEATURES 1.1 - TECHNICAL DATA 1.2 - DESCRIPTION 2 - ELECTRICAL CONNECTIONS 2.1 - SCHEMA DI COLLEGAMENTO 2.2 - INSTALLATION EXAMPLE 3 - USE OF THE CONTROL UNIT 3.1 - USE VIA RADIO...
Page 2
WARNINGS - Installation must be carried out only by qualified technicians in compliance with the electrical and safety standards in force. - All connections must be made with the power turned off. - Use suitable cables. - Do not cut through the aerial (see figure 1.1b) - A suitably sized disconnection device must be set up on the electric power line that supplies the product.
Page 3

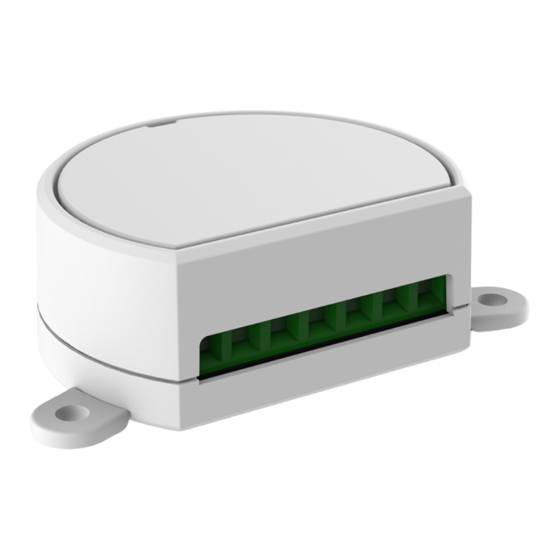

DESCRIPTION MCU-PUSH is a miniaturised electronic control unit for managing a device via radio and wire. The ISM (industrial, scientific and medical) radio frequency band guarantees a long range, even through walls and ceilings. Simple programming with dip-switches, reduced dimensions with breakable tabs (fig. 1.1c) for fixing with screws (fig.
Page 4
2 ELECTRICAL CONNECTION CONNECTION DIAGRAM The following connection lets you control device with potential-free dimmable contact Fig.2.1 1 2 3 4 5 6 7 P1 P2 Potential-free contact (max 5A) push dim WARNING: P1=P2 More loads can be connected by using parallel cabling...
Page 5
ATTENTION: see the manual of the driver in order to verify the compatibility with standard push button for dimming. mcu-push control unit must be connected instead of the wired button, connecting the wires on terminals 6 and 7 EXAMPLE OF CONNECTION DRIVER TYPE 1...
Page 6
3 USE OF THE CONTROL UNIT USE VIA RADIO To control the loads via radio you must have compatible transmitters and therefore must carry out the association procedure, see paragraph 4. If the transmitter is of a generic type, its operation is: Button of the Action of the transmitter...
Page 7
4 - RADIO PROGRAMMING RADIO PROGRAMMING OF MULTIFUNCTIONAL AND GENERIC TRANSMITTERS This procedure lets you programme only compatible multifunctional transmitters (see table 4.1a) or generic (see table 4.1b) transmitters. Tab. 4.1a COMPATIBLE MULTIFUNCTIONAL TRANSMITTERS HB70-SLCT, HB70-SPCT, HB80-1C, HB80-1DIM, HB80-2L, HB80-30D, HB80-30RGBW, HB80-4C, HB80-4DIM, HB80-4L, HB90-6LT, ROUND-1SP SENSA-M, SENSA-P, SENSA-R35M, SENSA-R35P, SENSA-R35T, SENSA-T,...
Page 8
Nexta Tech company brand of Team srl via G.Oberdan 90, 33074 Fontanafredda (PN) - Italy Ph. +39 0434 998682 Email: info@nexta-tech.com Web: www.nexta-tech.com...
