Summary of Contents for Lekolar Lekhus Truls

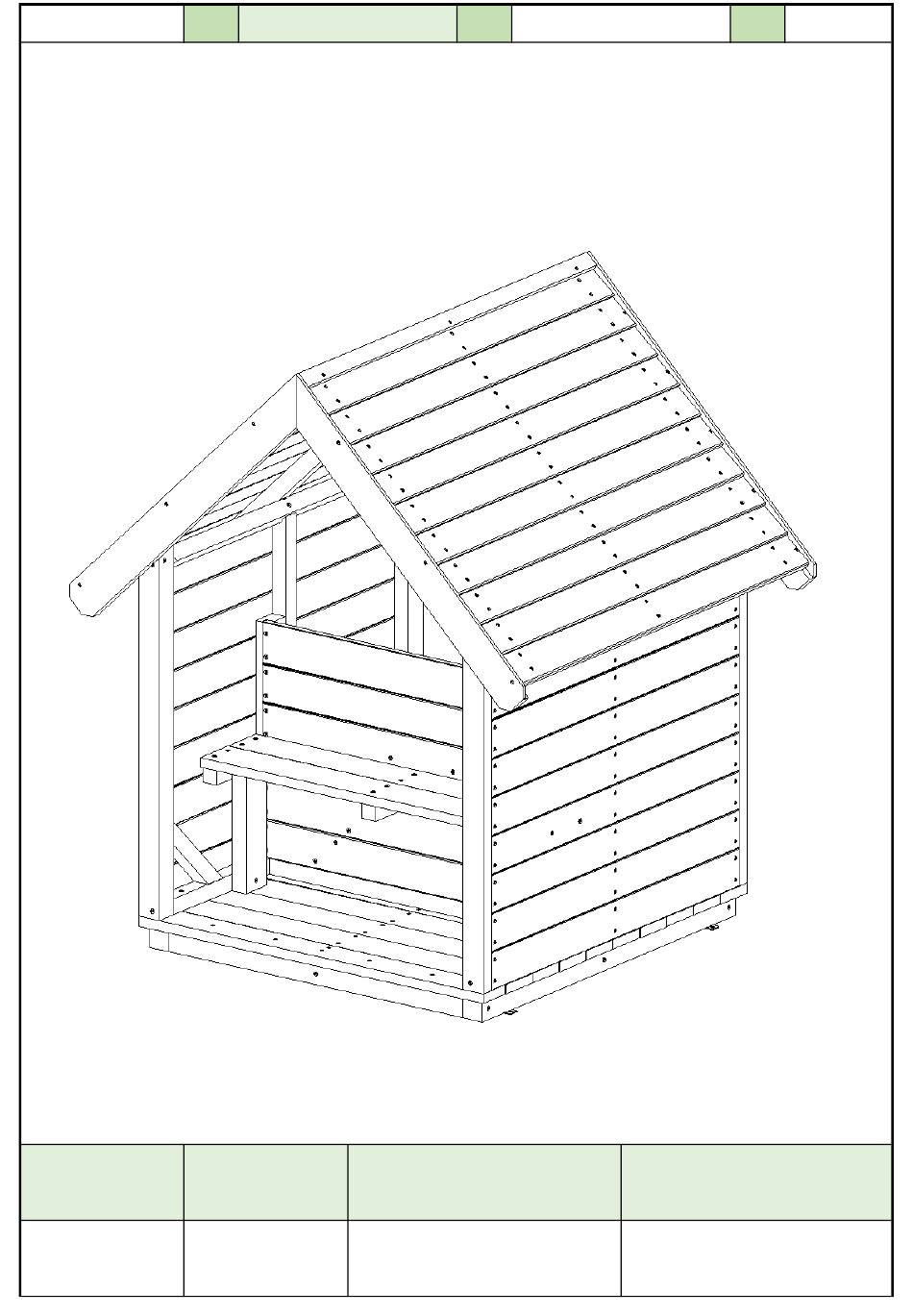

- Page 1 139268 ASSEMBLY INSTRUCTIONS Product Lekhus Truls Cat. no. 139268 Age of users Number of users Purpose of device In accordance with the standard 0 - 7 PN-EN 1176-1:2017 for outdoor playing...
-
Page 2: Safety Zone
Safety zone 139268 Installation in accordance with the land development plan. Safe surface Zone Max. fall height Surface area Perimeter security zone 0,78 m 17,00 m² 15,00 m... - Page 3 Safe surface 139268 Material Min. layer thicknesses Concrete h<0,6 m Bituminous surfacing Topsoil h<1 m Turf Bark 20÷80 mm Wood chips 5÷30 mm h<2 m Sand 0,25÷8 mm Gravel Bark 20÷80 mm Wood chips 5÷30 mm h<3 m Sand 0,25÷8 mm Gravel h<3 m Synthetic granulates...
- Page 4 Dimensions 139268 134 kg 0 kg 1,45x1,28x1,72 (AxBxH) [m] (AxBxH) [m]...
- Page 5 The kit 139268 Spare parts available from the manufacturer. Use thread glue in screw connections. Kotwa 3366 L3300_001 Krawędziak 45x45x1260 Q_3369_011 Krawędziak 45x45x1220 Q_3369_010 Krawędziak 105x27x950 DSK_3370_001P Krawędziak 105x27x1050 DSK_3370_001L Wkręt stożkowy Torx 6x90 8905_161 Wkręt stożkowy do drewna Torx 6x80 8905_157_A2 Wkręt stożkowy do drewna Torx 6x60_A2 8905_156...
- Page 6 Tools 139268 30 m 2,5 m 60 cm 100 cm 7 mm 13 mm 17 mm 19 mm 24 mm 13 mm 17 mm 19 mm 24 mm 4 mm 5 mm 6 mm 8 mm...
- Page 7 Installation 139268 Attention Before assembling the walls, the house platform should be anchored...
- Page 8 Installation 139268...
- Page 9 Installation 139268...
- Page 10 Installation 139268...
- Page 11 Installation 139268...
- Page 12 Installation 139268...
- Page 13 Installation 139268...
- Page 14 Installation 139268...
