CLEANING
WARNING: 1. Use soft damp cloth to clean machine, then wipe with dry cloth.
2. Do not wet the motor and inner electric box during cleaning.
3. Do not use harmful cleaners to paints or plastics.
4. Do not bend the blades.
5. The motor bearings are permanently sealed and do not require additional
lubrication.
IMPORTANT: Surges in electrical power or excessive heat may cause the fan to
turn off. Wait approximately 15 minutes for the fan to resume operation.

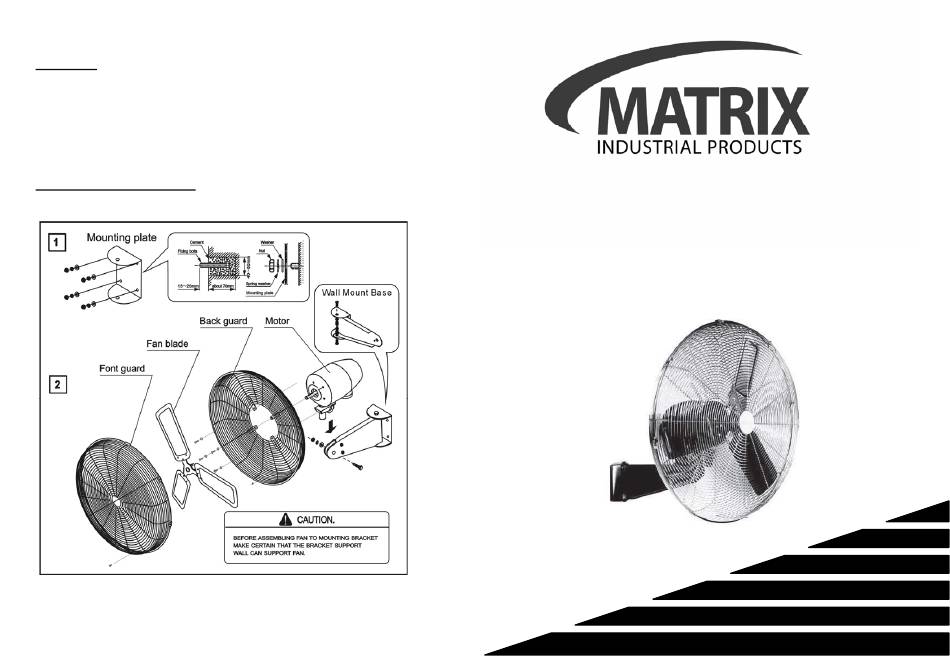

ASSEMBLY INSTRUCTIONS
The wall fan must be mounted by following the diagram on 12 inch (300mm) thick dry
and cement - grouted firm wall or on 4 by 5 inch wood studs / joists.
MODEL: FB2-65X(6)
ITEM: EA284
MODEL: FB2-75X(6)
ITEM: EA285
RATING: 120V~ 60Hz 150W
RATING: 120V~ 60Hz 220W
OWNER'S MANUAL

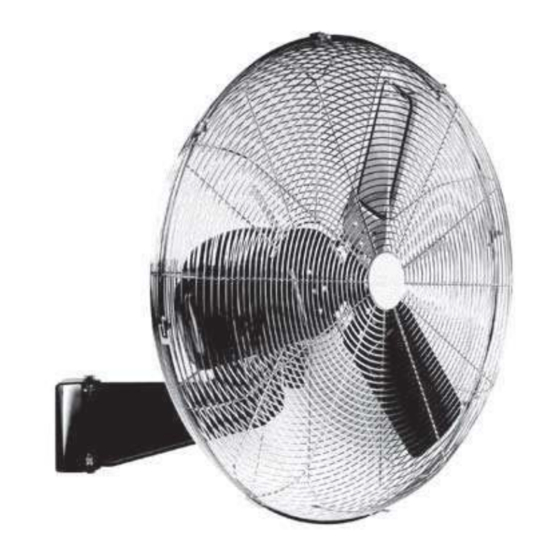

HIGH VELOCITY WALL FAN
MODEL: FB2-65X(6)
ITEM: EA284
MODEL: FB2-75X(6)
ITEM: EA285
Advertisement
Related Manuals for Matrix FB2-65X
Summary of Contents for Matrix FB2-65X
- Page 1 The wall fan must be mounted by following the diagram on 12 inch (300mm) thick dry and cement - grouted firm wall or on 4 by 5 inch wood studs / joists. HIGH VELOCITY WALL FAN MODEL: FB2-65X(6) ITEM: EA284 MODEL: FB2-75X(6)
- Page 2 INSTALLATION INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS The wall fan must be mounted by following the diagram on 12 inch (300mm) thick and dry, cement - grouted firm wall or on 4 by 5 inch wood studs / joists. CAUTION: Read and follow all instructions before operating fan. Do not use fan if any Use wall bracket of wall mount assembly as a template for locating the holes to be part is damaged or missing.
- Page 3 épaisseur de 300 mm (12 pouces) à paroi sèche et à coulis de ciment ou sur MANUEL D’UTILISATION des solives/colombages de 4 x 5 pouces. VENTILATEUR MURAL HAUTE VÉLOCITÉ MODÈLE: FB2-65X ARTICLE: EA284 MODÈLE: FB2-75X ARTICLE: EA285 MODÈLE: FB2-65X (6) ARTICLE: EA284 PUISSANCE: 120V~ 60Hz 150W MODÈLE: FB2-75X (6) ARTICLE: EA285 PUISSANCE: 120V~ 60Hz 220W...
- Page 4 Heating, la Refrigeration and Air Conditioning Engineers (ASHRAE) ainsi que les normes des LISEZ ET CONSERVEZ CES INSTRUCTIONS autorités locales. c) Lorsque vous coupez ou percez le mur ou le plafond, ne pas endommager le filage électrique et autres services qui pourraient y être dissimulés. ATTENTION: Lire et suivre toutes les instructions avant de faire fonctionner le ventilateur.
