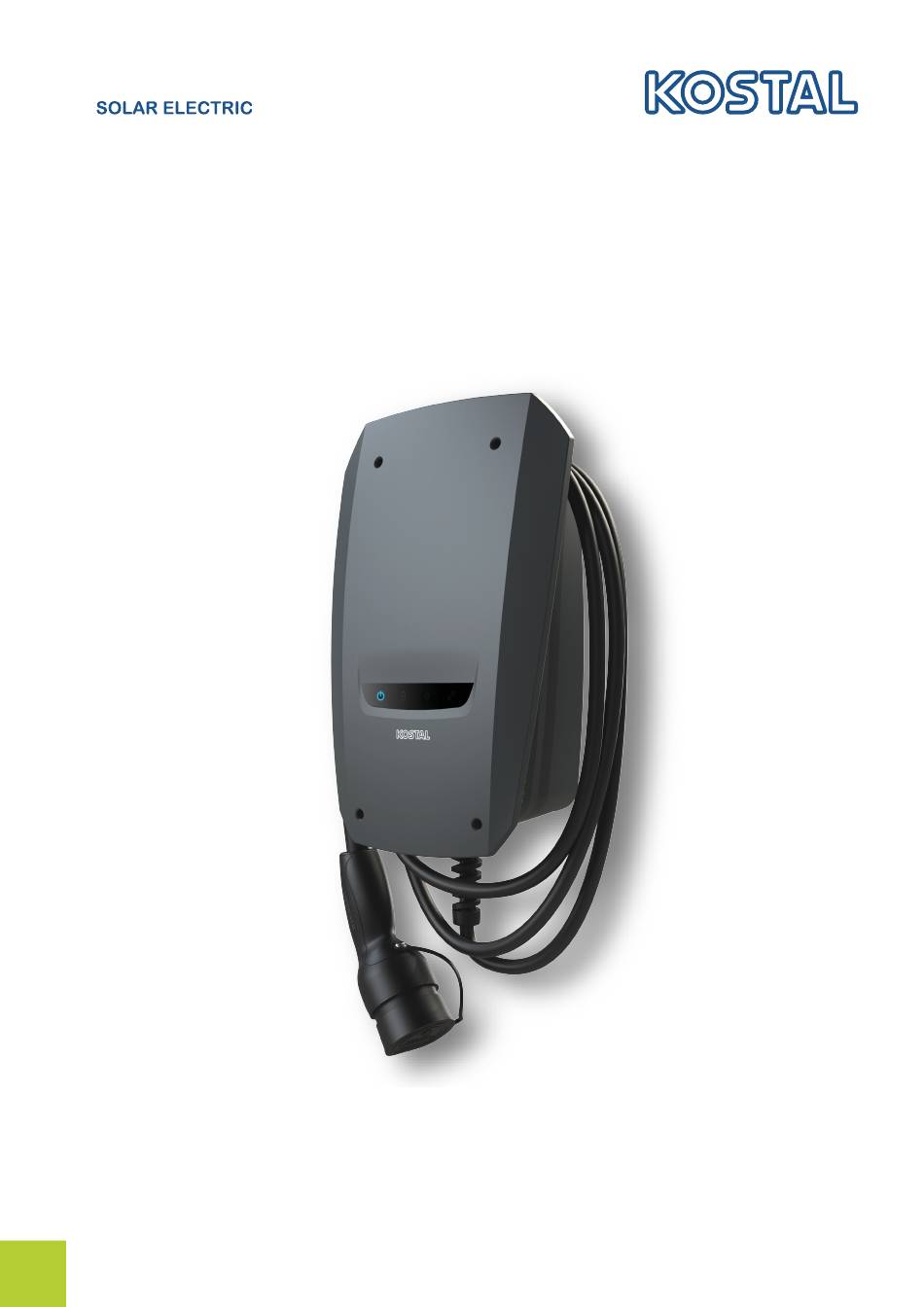

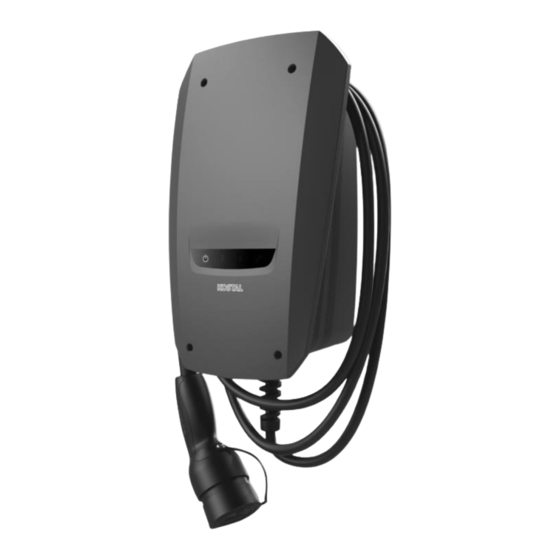

- Page 1 ENECTOR Configuration tool Operating manual...
- Page 2 All names, trademarks, product names and other designations used in this manual may be legally pro- tected even if not indicated as such (e.g. as a trademark). KOSTAL Solar Electric GmbH assumes no li- ability for their free usage. The illustrations and texts have been compiled with great care. However, the possibility of errors cannot be ruled out.
-
Page 3: Table Of Contents
Contents Contents General information......................About this manual ......................Target group ........................Updating firmware......................Installing the configuration tool..................... Operating the configuration tool................... Establishing a connection between the wallbox and PC ............Installing the firmware ......................© 2023 KOSTAL Solar Electric GmbH... -
Page 4: General Information
General information 1. General information Thank you for choosing a device from KOSTAL Solar Electric GmbH. Service If you have any questions about your device, please contact your relevant service partner or our service hotline: ■ Germany and other countries (language: German, English): +49 (0)761 477 44 - 222 ■... -
Page 5: About This Manual
This document is an addition to the wallbox operating manual. It contains information on how to configure wallbox using the configuration tool. KOSTAL Solar Electric GmbH assumes no liability for damages arising from the non-ob- servance of this manual. This document applies to the following charging stations: ■... -
Page 6: Target Group
■ Only carry out activities for which you have been qualified and instructed. ■ Observe the references to electricians in this manual. © 2023 KOSTAL Solar Electric GmbH... -
Page 7: Updating Firmware
To update the wallbox firmware, a CAN/USB cable, a terminal device (e.g. laptop) with Win- dows 10 or a later operating system and the configuration tool are required. The CAN/USB cable and configuration tool can be purchased from KOSTAL Service General information You can find the latest firmware in the download area for the product on our website at www.kostal-solar-electric.com... -
Page 8: Installing The Configuration Tool
Homepage Settings Overview DIP-Switches Product: ENECTOR AC 3.7/11 Firmware-Update Article-/serial number 1321101205.1321101205 Fehler-Log Firmware: Status: Fault message:: CP-State: maximum assigned charging current (A): Button for selecting the language Connection status Menu Explanations Parameter Setting/status © 2023 KOSTAL Solar Electric GmbH... -
Page 9: Operating The Configuration Tool
The operating manual describes the settings required for the respective use case. No settings can be configured in the Home and DIP switch menus. After saving the changes, the charging station is automatically restarted. © 2023 KOSTAL Solar Electric GmbH... -
Page 10: Establishing A Connection Between The Wallbox And Pc
Risk of death due to electrical shock and discharge! Device is live. Only work with protective equipment. Unscrew the housing cover. Fold down the housing cover. Plug the CAN/USB cable into the CAN interface in the wallbox and connect it to the © 2023 KOSTAL Solar Electric GmbH... -
Page 11: Installing The Firmware
The firmware update takes max. 3 minutes. The wallbox is then restarted. Disconnect the PC from the wallbox. Fold up the housing cover. Screw the housing cover and the lower part of the housing together. Torque: 1.2 Nm. ✔ The update has been completed. © 2023 KOSTAL Solar Electric GmbH... - Page 12 www.kostal-solar-electric.com...
