Ergo Furniture UL1-05 Installation Manual

Single motor standing desk

Advertisement

Quick Links

6
7
3
1

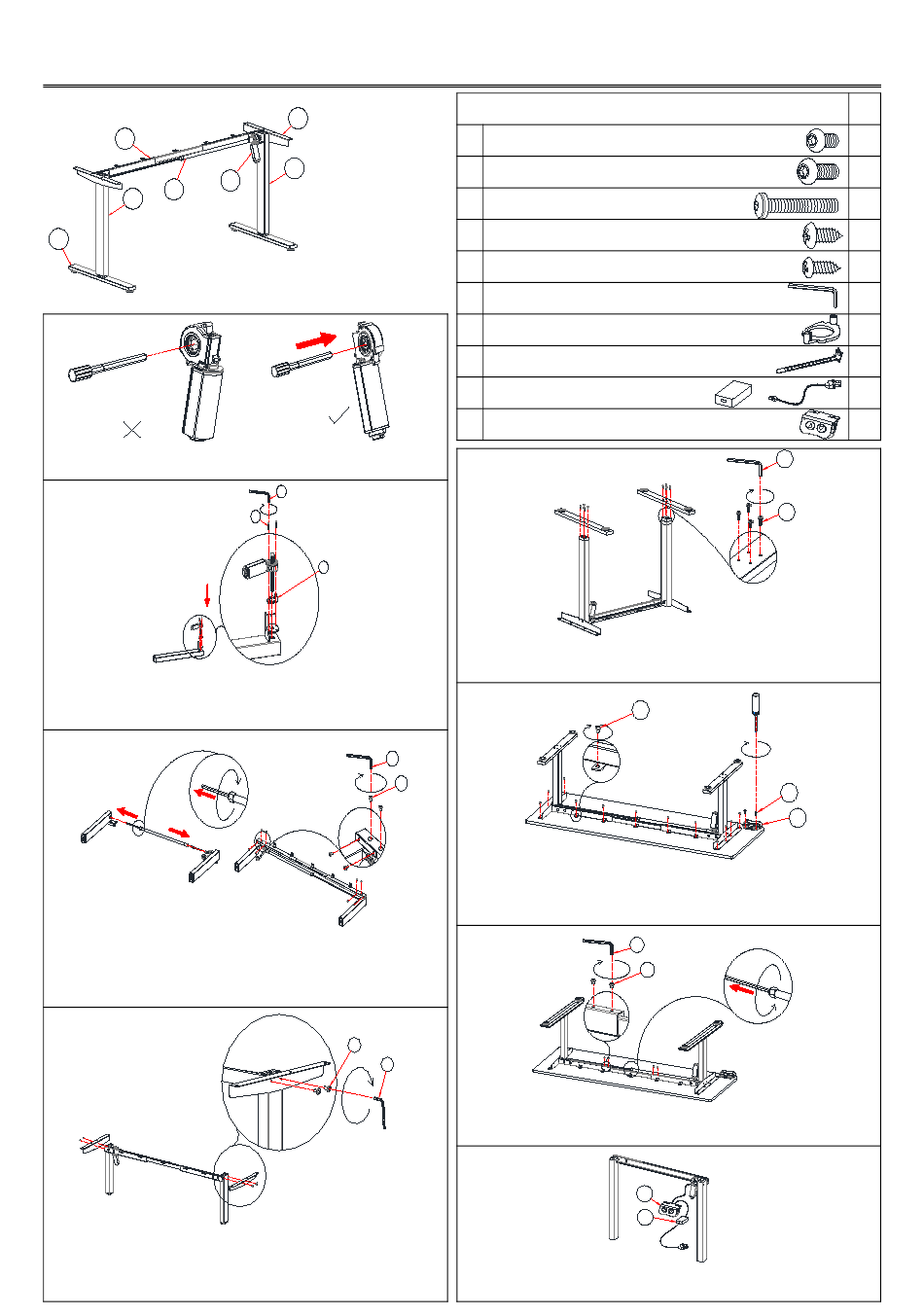

Step 1
1
As the picture 2 show: Pass the Hexagonal rod (part 7) through the
hexagonal hole of the Motor (part 5).
Step 2
Insert the Hexagonal rod assembled in Step 1 into the hexagonal
hole of the Right lifting leg (part 2) through the Motor Gasket (part
G), and tighten it with (part C) Screw M5x30.
Step 3
Insert the other side of the Hexagonal rod into the hexagonal hole
of the Left lifting leg (part 3) and Right lifting leg (part 2), and
attach the Crossbeam (part 6) to the Lifting leg (parts 2 and 3)
using (part A) Screw M6x10.
Step 4
Attach the Side bracket (part 4) to the Crossbeam (part 6) using
(part A) Screw M6x10.
Single Motor Standing Desk Installation Manual
①Foot
4
②Right lifting leg
2
③Left lifting leg
5
④Side bracket
⑤Motor
⑥Crossbeam
⑦Hexagonal rod
2
F
C
G
F
A
A
F
UL1-05
A Screw M6x10
B Screw M6x16
C Screw M5x30
D Wood screw ST4.8x16
E Wood screw ST4.2x16
F Allen wrench 4mm
G Motor Gasket
H Cable clip
I Power cable
J Handset
Step 5
Attach Foot (part 1) to the Lifting leg (parts 2 and 3) using (part B)
Screw M6x16.
Step 6
Adjust Crossbeams to the proper position to fit the desktop. Tighten
the (part D) Wood screw ST4.8x16 to lock. Attach the Handset (part J)
to the underside of the desktop using (part E) Wood screw ST4.2x16.
Step 7
Tighten Crossbeams (part 6) using (part A) Screw M6x10. Adjust the
Hexagonal rod (part 7) to the proper position and tighten the plastic
screw.
Step 8
Connect the Motor cable (part 5) and Power cable (part I) to the
Handset (part J).
Parts Included
F
B
D
E
F
A
J
I
Qty
16
8
2
13
2
1
1
5
1
1
J

Advertisement

loading
Need help?

Need help?

Do you have a question about the UL1-05 and is the answer not in the manual?

Questions and answers

Summary of Contents for Ergo Furniture UL1-05

  • Page 1 Single Motor Standing Desk Installation Manual UL1-05 ①Foot Parts Included ②Right lifting leg A Screw M6x10 ③Left lifting leg B Screw M6x16 ④Side bracket C Screw M5x30 ⑤Motor D Wood screw ST4.8x16 ⑥Crossbeam E Wood screw ST4.2x16 ⑦Hexagonal rod F Allen wrench 4mm...
  • Page 2 Specifications Input voltage: 100-240VAC, 50/60HZ, Max3A Output voltage: Max32VDC/Max6A Motor: 1 Duty cycle: Max.10% Ambiance temperature: -20℃— 50℃ Noise: ≤ 50 dB Instructions For Use IMPORTANT: You must reset the lifting column prior to use. Reset Procedure: 1. Press and hold the DOWN button on the handset until the column reaches its lowest height. 2.
