SELLEYS S33 AIRLESS SPRAYPACK

OPERATING MANUAL

Table of Contents

Need help?

Do you have a question about the SELLEYS S33 and is the answer not in the manual?

Questions and answers

Summary of Contents for Trusted Clean SELLEYS S33

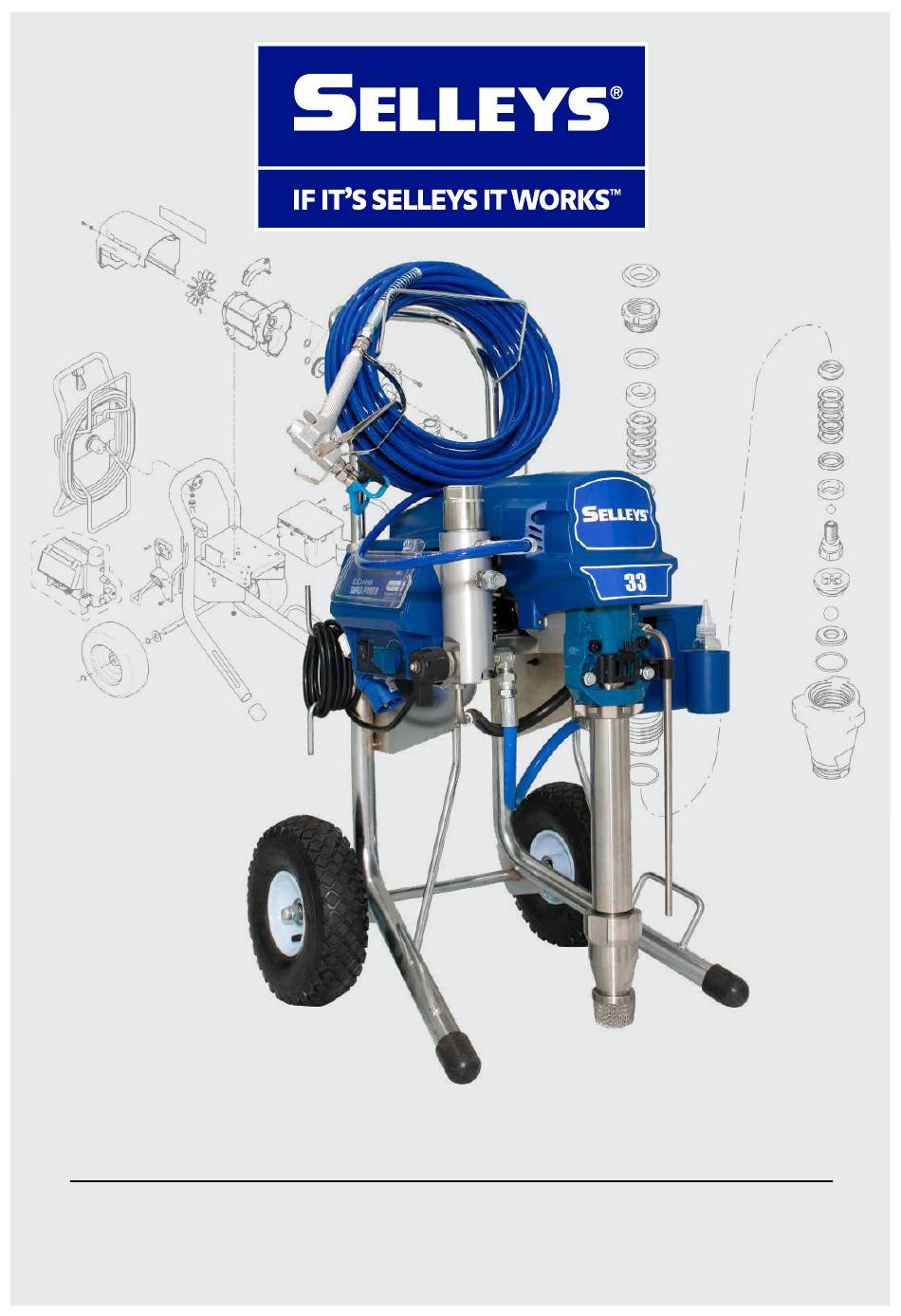

Page 1 SELLEYS S33 AIRLESS SPRAYPACK OPERATING MANUAL...
Page 2: Table Of Contents
CLEANING AND MAINTENANCE Cleaning and Shutting Down Cleaning the Airless Spray Gun Disassembly of the Gun Filter Assembly of the Gun Filter MALFUNCTIONS SERVICING AND REPAIRS Routine Checking Repairs to the Packings CONNECTION GUIDE PARTS AND ASSEMBLY OPERATING MANUAL – SELLEYS S33...
Page 3: Safety Information
SELLEYS equipment. Servicing should ONLY be carried out by SELLEYS or an authorised distributor of SELLEYS equipment. If these conditions are not met, the operator assumes all liability for injury and property damage arising from the use of this unit. OPERATING MANUAL – SELLEYS S33...
Page 4: 1.1 General Safety Precautions
Fully inform the medical team about the coatings or solvents involved, as some coatings are toxic when injected directly into the bloodstream. For serious injuries, a plastic surgeon or reconstructive hand surgeon should be consulted. OPERATING MANUAL – SELLEYS S33...
Page 5 Vapours from paints, solvents, insecticides, and other materials can be harmful in the event of inhalation or contact with any part of the body. Symptoms include severe nausea, fainting and poisoning. ALWAYS • use a respirator or mask • wear protective eyewear • wear protective clothing OPERATING MANUAL – SELLEYS S33...
Page 6: Earthing Instructions
• 2-component coating materials • latex paints • coatings containing solvents • dispersions Do not spray coatings other than those listed above without the prior approval of SELLEYS or the authorised distributor of this unit. OPERATING MANUAL – SELLEYS S33...
Page 7: Preparation Of Coating Materials
Max. tip size 0.033” Max. operating pressure 220 bar Voltage 220 – 240V, 50 – 60Hz Max. temperature of coating material 43°C Max. viscosity 25,000 mPa-s Max. sound pressure level 80dB High pressure hose DH 6mm, 15m OPERATING MANUAL – SELLEYS S33...
Page 8: Main Components
Spacer ring Fluid outlet Spacer ring SHCS SHCS Toolbox Spacer ring SHCS Hex nut SHCS Fixed spring Oil reservoir Screw Suction filter Front cover Frame assembly Shelf SCHS Fixed nut Seal Rear cover Spacer ring OPERATING MANUAL – SELLEYS S33...
Page 9: Component Identification
COMPONENT IDENTIFICATION DESC-Control display Gun trigger lock ON/OFF switch Return hose Pressure control knob Suction tube Relief valve OPERATING MANUAL – SELLEYS S33...
Page 10: Operating Instructions
Startup to flush out storage oil shipped in sprayer. Use water to flush water-based paint and appropriate solvent to flush oil-based paint and storage oil. Fill throat packing nuts with separating oil to prevent premature packing wear. Do this each time you spray. OPERATING MANUAL – SELLEYS S33...
Page 11: Startup
Wait until the cleaning agent discharges from the return hose Turn the relief valve and set to "SPRAY" position Pull the trigger of the spray gun Spray the cleaning agent from the unit into a container OPERATING MANUAL – SELLEYS S33...
Page 12: Installation Of Spray Tip
Trigger the spray gun and spray into a container until the coating material exits the spray gun continuously Increase the pressure by slowly turning the pressure control knob clockwise Check the spray pattern and increase the pressure until the desired atomisation is attained The unit is ready to spray OPERATING MANUAL – SELLEYS S33...
Page 13: Method Of Spraying
Leave the suction tube (or the suction hose and return hose) immersed in the coating material, or in a cleaning agent IMPORTANT If a fast-drying or two-component coating material is used, ensure that the unit is rinsed with a suitable cleaning agent within the processing time. OPERATING MANUAL – SELLEYS S33...
Page 14: Cleaning And Maintenance
Put the return the return hose in a container and turn the Increase pressure slowly. Hold gun against the paint relief valve to "PRIME" position container. Unlock the trigger, and flush the gun until the flushing fluid appears. OPERATING MANUAL – SELLEYS S33...
Page 15: Cleaning The Airless Spray Gun
Thoroughly clean the outside of the airless spray gun DISASSEMBLY OF THE GUN FILTER Follow these steps carefully. Pull the protective guard (Figure 1.1) forward with moderate force Unscrew the grip (1.2) from the gun housing and remove the gun filter (1.3) OPERATING MANUAL – SELLEYS S33...
Page 16: Assembly Of The Gun Filter
3. Clean or replace all filters 4. Coating material viscosity 4. Thin out according to the manufacturer’s is too high instructions G. Unit loses power 1. Pressure setting is too low 1. Turn pressure control knob clockwise to increase OPERATING MANUAL – SELLEYS S33...
Page 17: Servicing And Repairs
Remove O-ring from top of sleeve (or from inside of cylinder if O-ring did not come out with sleeve). Disassemble intake valve. Clean and inspect O-ring (122). NOTE: A pick may be required to remove O-ring. OPERATING MANUAL – SELLEYS S33...
Page 18 (106) (note orientation). Place the positioning sleeve (104) on top of the cylinder. Install small ball (117) in piston rod. If thread sealant is applied, ensure none of the sealant gets onto the small ball. OPERATING MANUAL – SELLEYS S33...
Page 19 NOTE: Do not slide piston assembly into top of sleeve as this may damage piston packing. Slide piston rod into the bottom of cylinder Install intake valve on cylinder. If a wrench is used, torque as follows. OPERATING MANUAL – SELLEYS S33...
Page 20: Connection Guide
(121 ) and ball (120 ). Seat may be flipped over and used on other side. Clean seat thoroughly. CONNECTION GUIDE Motor Potentiometer Pressure sensor On/O Black wire Power plug Green wire White wire Black wire OPERATING MANUAL – SELLEYS S33...
Page 21: Parts And Assembly
105 Upper leather seal 113 Lower UPE seal 121 Big ball seat 106 Upper UPE seal 114 Lower leather seal 122 O-ring 107 Upper gland 115 Backup U-cup 123 Pump assembly 108 Piston rod 116 Lower gland OPERATING MANUAL – SELLEYS S33...
Page 22 113 Manifold Square ring Filter cap 114 Pipe plug O-ring Filter 125 Oil seal Plug, self cleaning 162 Fluid outlet Washers lock Filter tube 171 Seal spring 172 45 degree elbow Metal valve joint Pressure sensor OPERATING MANUAL – SELLEYS S33...
Page 23 THIS PAGE INTENTIONALLY LEFT BLANK...
Page 24 Selleys is a subsidiary of Nippon Paint (Singapore) Co. Pte Ltd 1 First Lok Yang Road, Jurong, Singapore 629728 Tel: 6265 5355 (Main Line) www.selleys.com.sg...
