Summary of Contents for Sigma OCS-SL-1

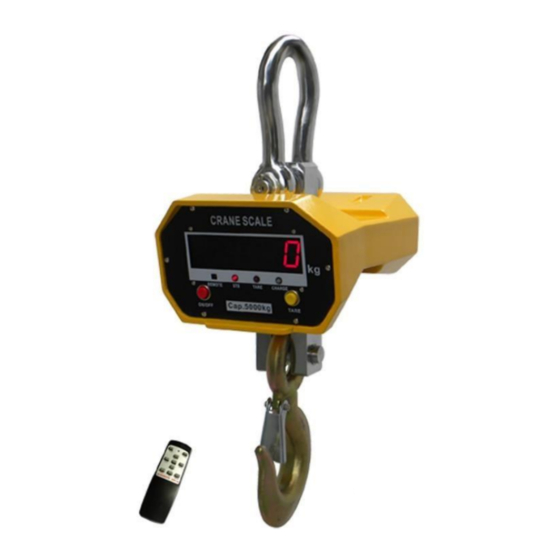

- Page 1 CRANE SCALE USER MANUAL Model：OCS-SL USER MANUAL ERT02.010.SSE...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CHAPTER 1 FEATURES AND SPECIFICATION ..................3 1.1 Features ............................3 1.2 Main technical data ........................3 1.3 Specification ..........................3 1.4 Size ............................. 4 1.5 Power supply ..........................4 CHAPTER 2 DISPLAY ..........................5 2.1 Led display ..........................5 2.2 Indicator light .......................... - Page 3 SAFE OPERATION GUIDE： 1. The capacity of crane scale have been showed on the overlay, Don’t make lifts beyond rated capacity of the crane scale. 2. Operators should not maneuver a loaded crane scale over personnel. 3.The scale must be routinely checked for operation. Don’t operate if hook, shackle, sling, cable, etc show any sign of defects or excessive wear.
-
Page 4: Chapter 1 Features And Specification
- 10℃ ~ + 40℃ Operating Humidity ≤85% RH under 20℃ Remote Controller Distance Min. 15m Battery of Remote Controller AAA Size battery, 1.5Vⅹ2 1.3 Specification MODEL Max. cap(kg) Min. weigh(kg) Division(kg) Total display counts (n) OCS-SL-1 1000 2000 USER MANUAL ERT02.010.SSE... - Page 5 OCS-SL-2 2000 2000 OCS-SL-3 3000 3000 OCS-SL-5 5000 2500 OCS-SL-10 10000 2000 OCS-SL-15 15000 3000 OCS-SL-20 20000 2000 USER MANUAL ERT02.010.SSE...
-
Page 6: Size
1.4 Size MODEL CAP.(kg) A(mm) B(mm) C(mm) D(mm) E(mm) H(mm) G.W. (kg) OCS-SL-1 2000 OCS-SL-2 2000 OCS-SL-3 3000 OCS-SL-5 5000 OCS-SL-10 10000 OCS-SL-15 15000 OCS-SL-20 20000 1.5 Power supply Battery: 6V/4.5Ah fully sealed Lead-Acid battery Adapter: 9VDC/1000mA adapter Current: the crane scale average current is about DC 100mA±10%, if battery charged, it can be used for about 50hours.Low battery warning: When the digits flash, it... -
Page 7: Chapter 2 Display
CHAPTER 2 DISPLAY 2.1 Led display 30mm (1.2’’) 5digits LED/LCD 2.2 Indicator light TARE: Tare indicator STB: Stable indicator CHARGE: Charge indicator 2.3 Key ON/OFF 1. Press ON/OFF three seconds，the crane scale turn on. 2. When turn on，Press ON/OFF three seconds，the crane scale turn off. TARE 1 Hang sling or container on the hook, when the weight reading stable, press this key, the digits display “0”, and “TARE”... - Page 8 2. 【TARE】 In weighing status, the function is equal to TARE on front panel In parameter setting and calibration process, it used for move digit（the digit choose flash） 3. 【SHIFT】 In weighing situation, used for function shift, or used with other key to more function. In parameter setting and calibration process, it used for confirm setting.
-
Page 9: Chapter 3 Operation Guide
CHAPTER 3 OPERATION GUIDE 【 】express key on remote controller. 3.1 Turn off/on TURN ON Press ON/OFF three seconds, the screen displays as follows： OPERATION DISPLAY ILLUSTRATION ON/OFF Display two times 〖88888〗 Display two times 〖 Ert 〗 Display capacity 〖XXXXX〗... -
Page 10: Hold
Set known tare weight, 【TARE】used to move digit,【ZERO】 【 【TARE】 【ZERO】 【 〖 xxx〗 CLEAR】 CLEAR】used to set value. exit, “TARE” light on, it displays minus tare weight, after hanging 〖- xxx〗 【SHIFT】 on goods, it will display net weight of goods. 3.4 Hold OPERATION ILLUSTRATION... -
Page 11: Brightness
Display current battery voltage 【SHIFT】 【F1】 〖U 6.**〗 Return 【SHIFT】 The voltage should be between 5.8 and 6.9, if below than 5.8, the digits flash, you need to recharge immediately. 3.9 Brightness OPERATION ILLUSTRATION 1～5 total 5 options, from darkness to brightness(Default is 3) 【F1】... -
Page 12: Chapter 4 Parameter Setting &Calibration
CHAPTER 4 PARAMETER SETTING &CALIBRATION You need to use remote controller to operate parameter setting and calibration Key function: FUNCTION Move digit(the digit choosed flash) 【TARE】 Set value up 【ZERO】 Set value down 【CLEAR】 Confirm, exit 【SHIFT】 4.1 Parameter setting OPERATION DISPLAY ILLUSTRATION... - Page 13 Press【TARE】 New scale，the screen display Cd=11,if scale calibrated，the 〖Cd=11〗 confirm screen display calibrated value. C: zero-tracking range, 0~5 total 6 options; 0=0d; 1=0.5d; Press【ZERO】or 【 2=1d; 3=1.5d; 4=2d; 5=2.5d d: display speed，0~2 total 3 〖Cd=11〗 CLEAR】to choose options; 0=slow; 1=average; 2=fast;...
-
Page 14: Calibration
15000kg/5kg 20000kg/10kg 4.2 Calibration OPERATION DISPLAY ILLUSTRATION Take Cap:5000kg scale as example，Pay attention that the screen display 0 after hanging tare weight, you can hang 0〗 Press ON/OFF 〖 tare weight at first, then turn on. Press 【F1】and【F2】 〖P0000〗 Second digit flash，use function key to move digit, set at same time 3seconds value. -
Page 15: Chapter 5 Display Illustration
Display calibrated capacity, sometimes it displays 4999.5, 〖5000.0〗 5000.5 Move decimal position Press【TARE】 〖05000〗 Put down weight Check zero point, it displays 0, and STB, ZERO light on. 0〗 〖 First load: LOAD1 must larger than 20% capacity，and LOAD1<LOAD2<LOAD3, and between LOAD1 and LOAD2，... -
Page 16: Chapter 6 Troubleshooting Guide
Rare four digit of accumulated weight Total weight=front four digit + rare four digit 〖L****〗 Ask if you want to delete accumulated 〖 CLr 〗 In case error deletion weight Give up deletion 〖noCLr〗 Confirm deletion 〖88888〗 Switch 〖SHIFt〗 Input value is too large When you input tare or weight value 〖... - Page 17 Check and replace load Load cell cable damaged cell Out of calibration Check calibration Scale electronics do not stabilize After turning on, heating after turning on 3-5 minutes. Display experiences excessive Zero drift between weighment Put the scale on ground for too Scale should be hung long time Scale not Zeroed before...
