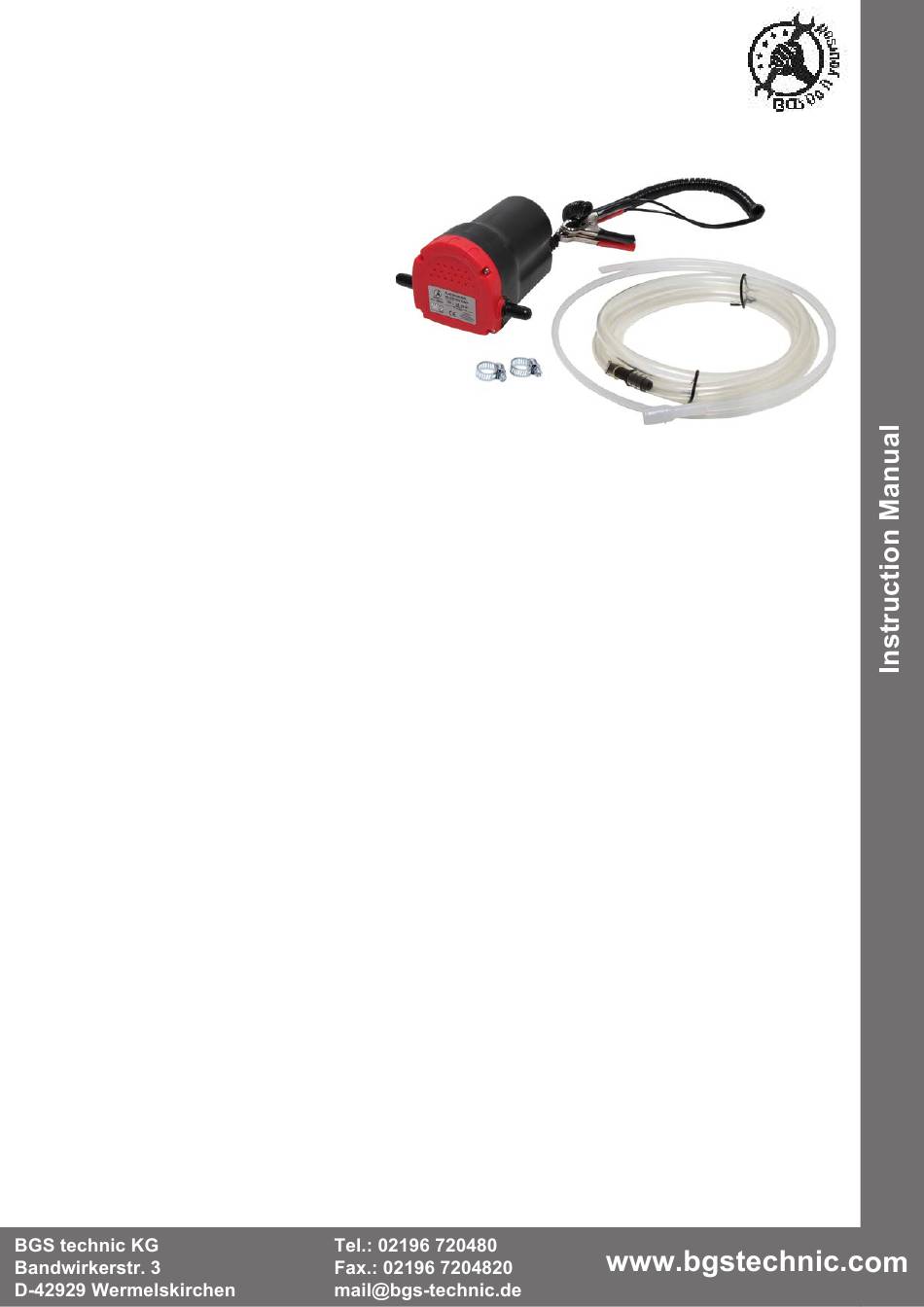

BGS technic BGS 99910 Instruction Manual

TECHNICAL DATA

Input voltage: 12V DC
Rated current: approx. 5A
Sound pressure level: 70 dB (A)
Vibration: < 2.5 m/s²
Maximum flow rate
(diesel / heating oil): approx. 1.5 l/min
(motor oil 40 - 60°): approx. 0.2 l/min
Dimensions: 85 x 130x 125 mm
Weight: 0.85 kg
Max. delivery height: 0.7 m

GENERAL

The oil-extractor is the ideal equipment for quick and clean oil-changes. The oil-extractor works by
connecting the clamps to the 12V car-battery. The oil is simply drawn out the motor through the oil dipstick
bore. Please us the extractor exceptionally for motor-, diesel- or heating-oil.

SAFETY INSTRUCTIONS

The extractor is not suitable for extracting:
•
water (no lubrication of the pump)
•
gearbox-oil (too viscous)
•
easy inflammable liquids (fuel, petrol, etc.) Danger of explosion !
•
We will not assume liability for safe function of the extractor, if it is used for purposes other than those
mentioned in this manual. No warranty Claims can be lodged for damage resulting from operating
errors or inadequate maintenance.
Please carefully read and observe the following safety instructions, before using the extractor in order to
avoid environmental damages or injuries:
•
set up the oil-extractor securely
•
fasten the drain hose properly
•
Protect the power supply cables against heat and sharp edges
•
make sure, that the pump is connected correctly to the car-battery before starting to work. (plus to
plus and minus to minus)
•
do not pump fuel, petrol, paraffin or other easily inflammable liquids - Danger of explosion!
•
do not pump water (no lubrication of the pump)
•
only pump warm motor-oil (40°-50° C) do not pump off motor-oil, as long as the motor is running
collect the old oil in suitable Containers to protect the environment and deliver the old oil to your local
collecting-station, petrol-station or oil-supplier
•
clean the pump and attachment-parts after finishing your work.

TECHNICAL DESCRIPTION

The oil-extractor is a vane-pump with brass-Iamellas. It is driven by a 12V-DC -motor via a reduction-gear.
As power-supply please use a 12V- vehicle battery. The connections on the pump are built for hoses of 10
mm internal diameter. The external diameter of the suction-probe is 6 mm.
Therefore the pump can only be used for oil-change if the inner diameter of the dipstick-tube is bigger than
6 mm. The oil-extractor is suitable to pump engine-, diesel- and heating-oil.
