Summary of Contents for RAMBO Megatron 1000 X2WD

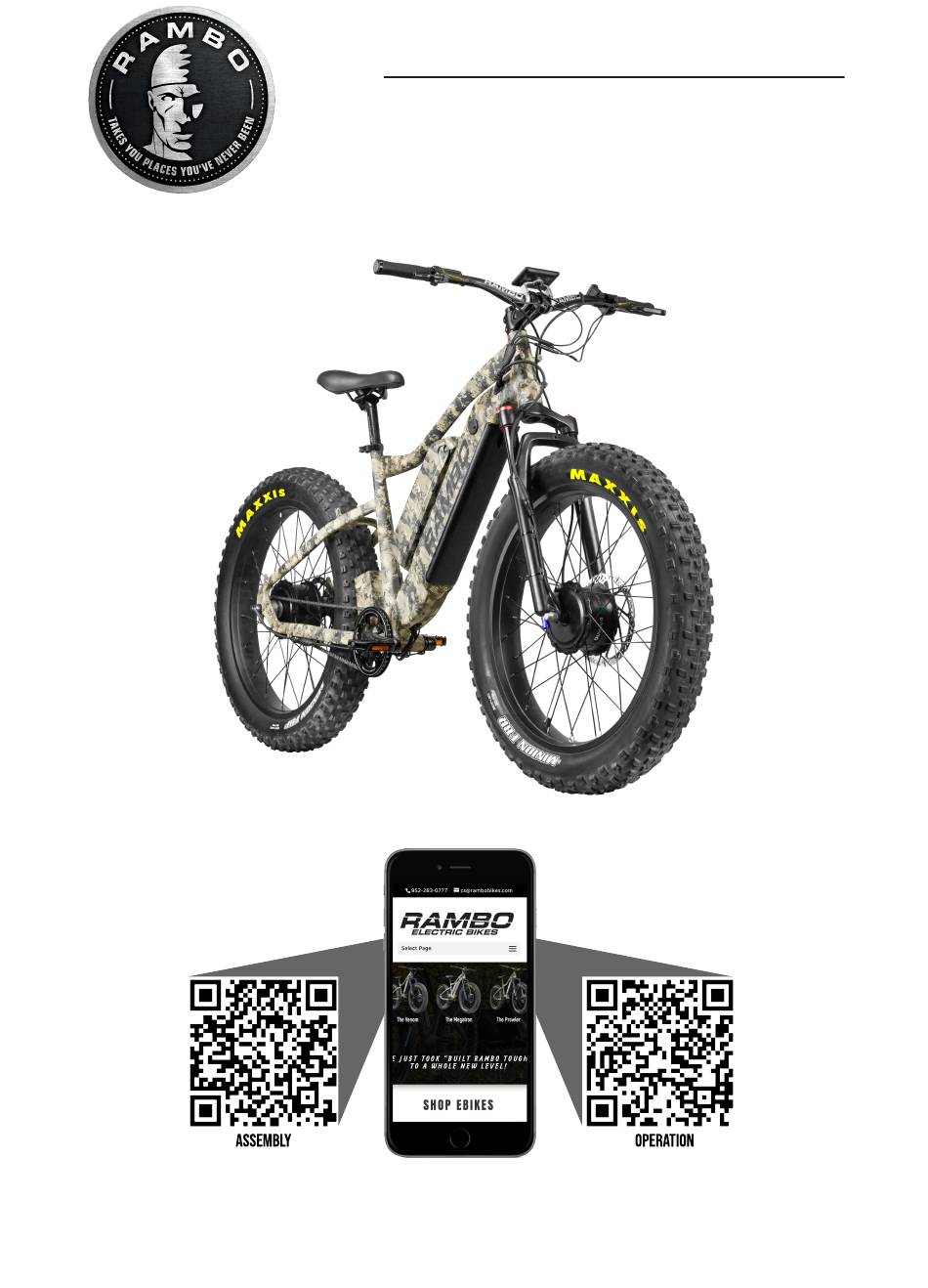

- Page 1 RAMBO Bikes Owner’s Manual For Models: Megatron 1000 X2WD USE YOUR PHONE’S CAMERA TO SCAN THE QR CODE to a link on how to assemble and operate your 2021 MEGATRON...
-
Page 2: Your First Ride
This is a significant investment and if the instructions, proper size of bike. warnings, and maintenance tips are followed, you will enjoy many years of use from your Rambo Bike. Thank you and have fun riding! - The seat may be adjusted This owner’s manual must be read in its entirety by... -
Page 3: Section 1 - General Warnings
This does not occur at normal riding speeds. The Rambo Bike comes equipped with disc brakes. These brakes are different from other general types of brakes associated with bikes. Some bikes... - Page 4 INSPECTION BEFORE EVERY RIDE • Install the Grub screw into the location dimples of the lock bolt. Tighten the axle to 15mm and press Before every ride, inspect the bike with the the lever to the closed position. Note: Make sure following check list.
-
Page 5: Rules For Safe Riding
RULES FOR SAFE RIDING post in the frame by attempting to rotate the seat. If the seat rotates, then the seat tube is not properly You must ensure that you understand the safe clamped in to the frame. operation of this bike and follow all traffic, bike laws and regulations in the area in which the bike is being Check the lights and reflectors operated. - Page 6 Night Riding and Poor Visibility Avoid riding too fast Riding at dawn, dusk, during poor visibility or night Higher speeds create higher risks and greater forces riding is extremely dangerous. Your reflectors are in the event of a crash. At higher speeds, it is more not a substitute for required bike lights.
- Page 7 SECTION 2 - GENERAL RIDING INFORMATION When preparing to slow down or stop, gently apply both front and rear hand brakes at the same Once you have inspected your bike and all time being careful not to components are in proper working condition, you over apply the front are ready to test ride your new bike.
-
Page 8: Maintenance And Care
SECTION 3 MAINTENANCE AND CARE Every 3 months: Service Before every ride complete the bike inspection o Check reflectors, lights, and seat/seat post for outlined in Section 1. If you identify any areas that excess wear or damage need adjustment or service, take your bike to a o Check the frame, fork, handlebars, and stem for qualified bike technician for repair and service. -
Page 9: Section 4 - Assembly Instructions
Section 4 - Assembly Instructions This manual provides instructions on how to assemble your new Rambo Bike as it comes from the factory. If you feel you do not understand the instructions, have the proper tools or would prefer a qualified technician perform the assembly, take your new Rambo Bike to your local bike shop. - Page 10 Check that the front fork is assembled properly as Check brake rotor alignment in the caliper slot. The shown in figure 3. wheel should rotate freely without the caliper rubbing or binding. Place the wheel assembly into the fork dropouts being careful to align the brake disc into the caliper Note: With...
- Page 11 Handlebar Assembly: Saddle Assembly: • Carefully remove protective packaging. WARNING • Inspect cables, levers, electronics ‘if equipped’ and shifters for damage. Your seat post must be inserted in the frame seat • Remove factory installed front plate on the tube far enough so that the Minimum Insertion steering stem as shown in Figure 4.1.
- Page 12 Pedal Assembly: − Adjusting seat height for proper fit. Get a friend to help, lean against a wall or use a trainer. o Identify Left vs Right pedal. There is a “L” or “R” stamped into the metal part of the pedal near the threaded part that looks like a screw as...
-
Page 13: Battery Installation/Removal
Battery Installation/Removal To install the internal battery: • The internal battery is installed from the bottom of the frame, when installing the battery put the lower section into place first and then lift uninstalling the top of the battery into the frame and it will lock into place. •... -
Page 14: Section 5 - Operating Instructions
Section 5 - Operating Instructions Operation of control buttons Use and operation of your Rambo Bike Press and hold the power button located on the left side of the handle bar to turn on your bike. Your bike comes with 5 levels of power or pedal assist. - Page 15 How to use Pedal Assist When riding your Rambo Bike, the pedal assist can also be used from a complete stop if you choose. The rider must select the appropriate pedal assist level according to rider skill and terrain. Then the rider can begin to pedal, and after 1 or 2 revolutions on the pedals (depending on speed) the motor will engage and assist the rider in propelling the bike.
-
Page 16: Standard Limited Warranty
General Rambo Bikes™ will not be held liable for any damages resulting from breach of warranty or for sums beyond the purchase price of the product. Rambo Bikes is not liable for lost profits or goodwill; downtime; damage or destruction of items or equipment used with, or in conjunction with Rambo Bikes™;... - Page 17 WWW.RAMBOBIKES.COM 21673 Cedar Avenue South • Lakeville, MN 55044 • Tel: 952-283-0777 • Fax: 952-236-6458 Rambo Bikes; Second Edition; November, 2018...
