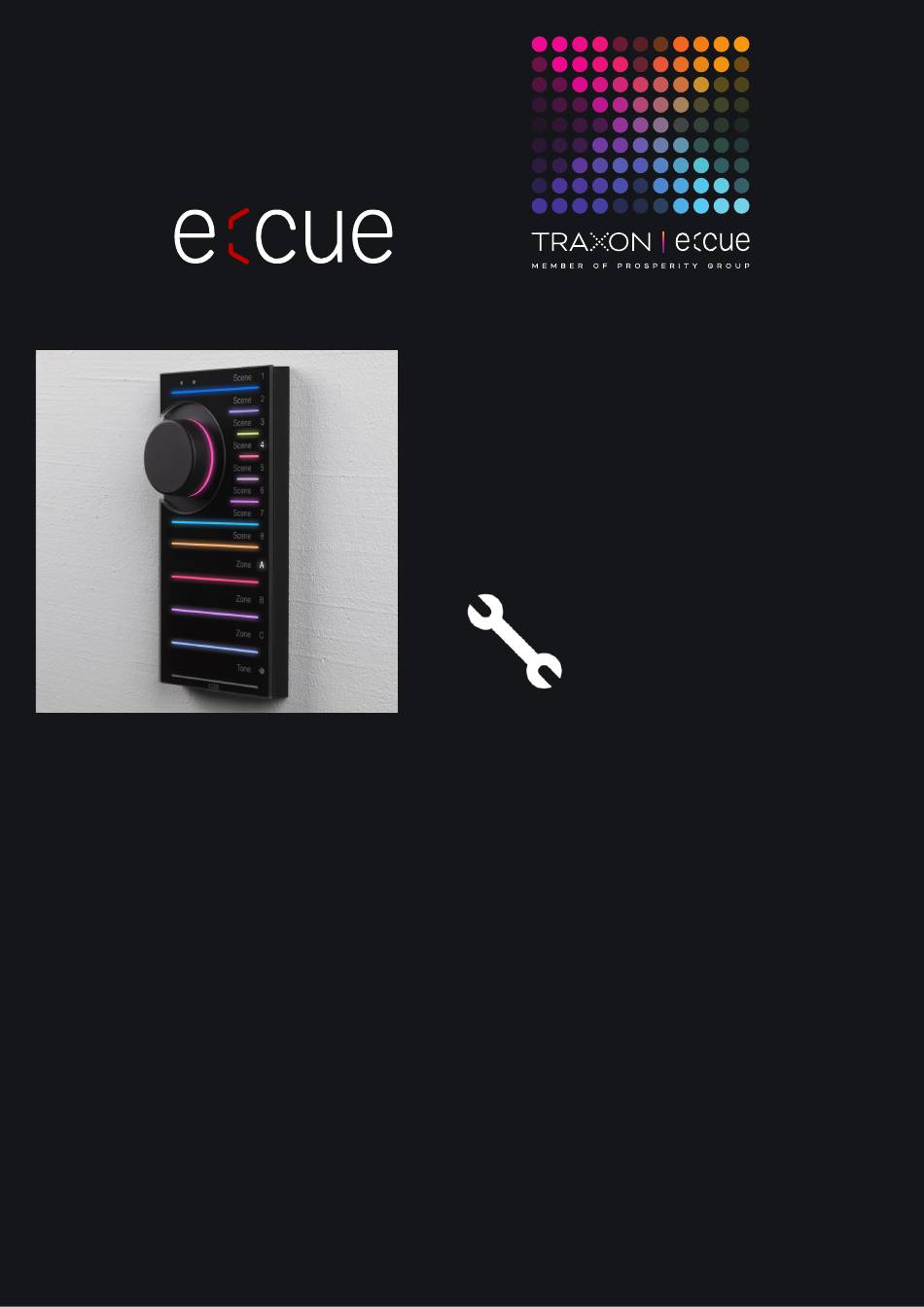

Table of Contents
Advertisement
Quick Links
Read the Installation Guide and the Safety Instructions carefully.
Subject to modification without prior notice. Typographical and
other errors do not justify any claim for damages. Modification of
the product is prohibited.
This document is designed for electricians and system
administrators of the product.
All product names and trademarks mentioned in this manual are
trademarks of their respective owners.
Except for internal use, relinquishment of the instructions to a
third party, duplication in any type or form - also extracts - as
well as exploitation and / or communication of the contents is not
permitted.
Downloads and more information at:
www.ecue.com
e:cue LIGHTDRIVE+ WiFi
Edition:
06.02.23 [EN_LIGHTDRIVEplusWiFi_Installation_v2p1]
Published by:
Traxon Technologies Europe GmbH
Karl-Schurz-Strasse 38
33100 Paderborn, Germany
©2023 Traxon Technologies Europe GmbH
All rights reserved
Traxon Technologies Europe GmbH
Sales Operations
Karl-Schurz-Str. 38
33100 Paderborn, Germany
+49 5251 54648-0
support@ecue.com
AM477420038
Installation Guide
Advertisement
Table of Contents
Summary of Contents for PROSPERITY GROUP Traxon e:cue LIGHTDRIVE+ WiFi
- Page 1 AM477420038 e:cue LIGHTDRIVE+ WiFi Installation Guide Edition: Read the Installation Guide and the Safety Instructions carefully. 06.02.23 [EN_LIGHTDRIVEplusWiFi_Installation_v2p1] Subject to modification without prior notice. Typographical and other errors do not justify any claim for damages. Modification of Published by: the product is prohibited. Traxon Technologies Europe GmbH This document is designed for electricians and system Karl-Schurz-Strasse 38...
- Page 2 LIGHTDRIVE+ WiFi — Installation Guide | Table of Contents Table of Contents Safety instructions Symbols General instructions General remarks Transport Unpacking Warranty regulations Maintenance and Repair Disposal Support Further information General device description Delivery content Optional accessories Product specifications Connectors and interfaces User & USB interfaces Connections DIP switches Control all Zones via Zone A...
-
Page 3: Safety Instructions
LIGHTDRIVE+ WiFi — Installation Guide | Safety instructions Safety instructions Read the safety instructions, provided in a separate manual, carefully. Make sure that the environmental, mounting, and installation prerequisites are met. This manual should be kept at a safe place and in reach of the device. -
Page 4: General Device Description
LIGHTDRIVE+ WiFi — Installation Guide | General device description 2.5 Disposal Batteries and technical appliances must not be disposed of with domestic waste, but should be handed in at the appropriate collection and disposal points. The proper disposal of packing materials and of the device is the responsibility of the respective user and for his account;... -
Page 5: Product Specifications
LIGHTDRIVE+ WiFi — Installation Guide | Product specifications Delivery content Delivery content for the e:cue LIGHTDRIVE+ WiFi (AM477420038): e:cue LIGHTDRIVE+ WiFi Device plugs Safety instructions Welcome card Optional accessories Power Supply 15W 12V DIN rail (AM3137600HA) Product specifications Product specifi cations Dimensions 80 x 160 x 30 mm / (W x H x D) - Page 6 Fixture types Monochrome (1 channel) Dynamic White (2 channels) RGB (3 channels) RGBW (4 channels) LIGHTDRIVE+ WiFi — Installation Guide | Product specifications Low-side switches 2 x 24 V DC, max. 3 A, ON resistance 50 mΩ, normally open, galvanically isolated, overload protected, on device plug Digital dry contacts 2 x inputs, 5 V DC contact supply, on...
-
Page 7: Connectors And Interfaces
LIGHTDRIVE+ WiFi — Installation Guide | Connectors and interfaces Connectors and interfaces LIGHTDRIVE+ WiFi controller Base plate 5.1 User & USB interfaces 8 Scene buttons + light stripes Jog wheel with button + halo content 3 Zone buttons + light stripes Tone button + light stripe Dismounting slot USB interface... -
Page 8: Dip Switches
LIGHTDRIVE+ WiFi — Installation Guide | DIP switches 5.2 Connections Rear view: 1 2 3 4 5 6 content Power supply DIP switches Power In + “6 DIP switches” (page 08) Power In – DMX outputs PoE & Low-side switches & Ethernet Digital dry contacts DMX 2 GND... -
Page 9: Power Supply
LIGHTDRIVE+ WiFi — Installation Guide | Power supply DIP switches Enable / Disable Tone button 0 = Tone button disabled 1 = Tone button enabled Control all Zones via Zone A 0 = disabled 1 = enabled Overwrite Scenes 0 = Scenes can not be overwritten using the user interface 1 = Scenes can be overwritten using the user interface (“Saving scenes”) Control all Zones via Zone A Is DIP switch 9 enabled, you can control the Scene selection (including brightness levels) of all Zones at once... - Page 10 LIGHTDRIVE+ WiFi — Installation Guide | Mounting Mounting The LIGHTDRIVE+ WiFi can be mounted in most standard in-wall mounted boxes (DE, US, UK, JP etc.). It is recommended to install it in a double-box to have more room for the cabling. Mount the device after all connections are done.
- Page 11 LIGHTDRIVE+ WiFi — Installation Guide | Certifications 11 Certifications Conforms to ANSI/UL Std. 62368-1 Certified to CSA Std. C22.2 NO. 62368-1 4000842 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 12: Troubleshooting
10.0 LIGHTDRIVE+ WiFi — Installation Guide | Further guides Base plate 75.0 2.00 67.7 60.0 64.9 4.50 37.5 10.0 60.0 10.0 55.0 Sectional drawing A-A (all countersunks) 1.49 10.0 55.0 content Sectional drawing A-A (all countersunks) 13 Further guides Onboarding Guide: Configuration Guide: 1.49... - Page 13 LIGHTDRIVE+ WiFi — Installation Guide | FAQ Device works, but the connected fixtures do not react. Check correct polarity of the DMX connection. Check the correct assignment of the DMX Zones with the LIGHTDRIVE+ app. The Tone button does not work. Check if using the Tone button is allowed with the DIP switch no. 8 on the backside. Can I repair the device myself? No.
