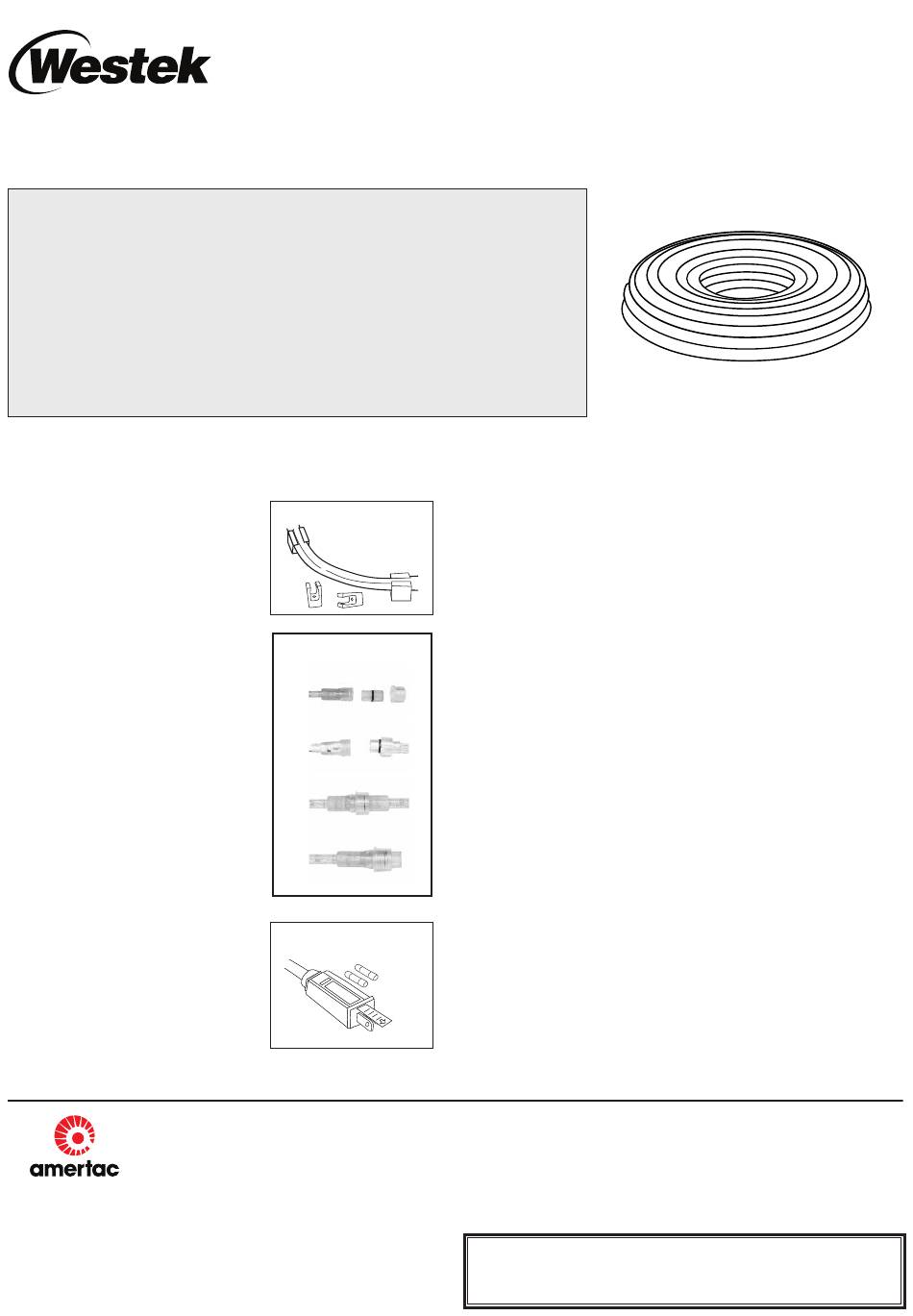

WESTEK Neon Rope Light Series
Models: NEONW4M, NEONWW4M, NEONBL4M & NEONR4M
IMPORTANT SAFETY INSTRUCTIONS
This product has a polarized plug (one blade is wider than the other) as a feature to reduce the risk of electric shock.
This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does
not fit, contact a qualified electrician. Never use with an extension cord unless plug can be fully inserted. Do not alter
the plug.
WARNING: TO PREVENT OVERHEATING AND ELECTRICAL SHOCK DO NOT INSTALL IN SMALL ENCLOSED SPACES. TO
PREVENT ELECTRICAL SHOCK DO NOT INSTALL IN WET LOCATIONS.
SAVE THESE INSTRUCTIONS
1. Read and understand all of these instructions before installing fixture.
2. Keep these instructions in a safe place for future reference.
3. Only qualified electricians in accordance with local codes should perform all installations.
4. WARNING: For hard wire installation make sure electrical power supply for installation circuit is shut down at electrical
service panel before starting installation. Do not re-energize circuit until installation is fully completed. Ensure that no
bare wires are exposed outside the electrical connections.
WARNING: To prevent shock closely follow grounding directions.
PREPARATION FOR INSTALLATION
Tools Needed
Philips screwdriver
How to install rope light
1
Fix mounting clips with screws onto wooden
surfaces and snap rope light into place.
2
Mounting clips should be evenly spaced and be
a maximum of 3ft (0.91 m) apart.
3
Make sure that the distance between two lines of
rope lights is at least 0.5 in (12mm).
How to extend rope light
a. Turn the plastic end cap counter clockwise to
remove from the first rope light.
b. Remove power cord from the extension rope
light.
c. Connect both ends of the ropes (the male and
female halves plug into each other). Make sure
all connectors are firmly tightened and secured.
d. Turn the plastic end cap clockwise to lock on the
last rope light.
DO NOT EXCEED THE MAXIMUM NUMBER
OF EXTENSIONS OR FLEXIBLE LIGHT LENGTHS
PERMITTED BY THE MARKING.
All units must be unplugged before adding
additional segment.
Maximum total extension length 180ft (54.9m).
Ensure all connections and the end cap on the last
segment are tightly secured to preclude the entry
of water.
Use only extension segments recommended by the
manufacturer of this system.
How to replace the fuse
This plug contains an electrical fuse as a safety
feature.
a. Disconnect power before replacing the fuse.
b. Grasp plug and remove from the receptacle or
other outlet device.
c. Do not unplug by pulling on the cord.
d. Slide the fuse access cover on the top of
attachment plug.
e. Remove old fuse carefully.
f.
Never attempt to replace the fuse with a higher
Watt fuse. Use only 5 Amps 125 Volt fuse. Failure to
do so may be a fire hazard.
g. Set new fuse in holder.
h. Reinstall the fuse access cover
Risk of fire. Do not replace attachment plug. Contains
a safety device (fuse) that should not be removed. Discard product if the attachment
plug is damaged.
250 Boulder Dr.
Breinigsville, PA 18031
610-336-1330
www.amertac.com
Made in China / Fabriqué en Chine / Fabricado en China
© 2020 AmerTac™
UC_TL_004_0720
Installing the Rope
Extending the Rope
1
2
Specifications
Input 120VAC 60Hz, 2W
Output 396W
3
120 LED's/Meter (1 LED/.3")
Length: 4M (13.1')
8 mm x 16 mm
IP65
50,000 hours LED life
Extend up to 180ft
4
For Indoor/Outdoor Use.
Color Temp and Lumens:
NEONW4M: 6500K,
700 lumens, CRI > 80
NEONWW4M: 3000K,
700 lumens, CRI > 80
NEONBL4M: N/A
Replacing the fuse
NEONR4M: N/A
Fuse
Cover
LED NEON ROPE LIGHT
Warning: Risk of Fire and Shock
(a) Do not cover this product as the covering may cause the flexible light to overheat and
melt or ignite.
(b) Do not mount or secure rope light in a manner that can cut the outer jacket or
damage the cord insulation. Inspect the rope light carefully before use and discard
any rope light that has a broken outer jacket, loose connection, or frayed wire
insulation.
(c) Do not operate with the flexible light tightly coiled. To prevent overheating do not
allow contact between flexible light cables and parts of light cables. Maintain at least
12 mm spacing between flexible light cables or parts of light cables.
(d) Do not puncture, cut, shorten, or splice the flexible light.
(e) Do not route the cord or flexible light cable through walls, doors, windows or any like
part of the building structure.
(f) Do not use if there is any damage to the light or cord insulation. Inspect periodically.
(g) Do not submerge flexible light in liquids. (h) Secure this flexible light cable using only the
hangers or clips provided. Do not secure this product or its cord with staples, nails, or
like means that may damage the insulation.
(i) Do not install on gates or doors, where subject to flexing.
(j) Do not install in cabinets, tanks or enclosures of any kind.
CAUTION: Ground Fault Circuit Interrupter (GFCI) protection should be provided on the
circuit or outlet.
CAUTION: Use only outdoor extension cords, such as type SOW, STW, SJOW or SJTW.
CAUTION: Do not install closer than 3 meters from a swimming pool surface.
Caractéristiques
Entrée 120 V a.c. 60 Hz, 2 W
Sortie 396 W
120 LED / mêtre (1 LED /
7,6 mm)
Longueur : 4 m (13,1 pi)
8 mm x 16 mm
IP65
50 000 heures de durée de
vie des DEL
Peut s'étendre jusqu'à 55 m
(180 pi)
Pour une utilisation intérieure
/ extérieure.
Température de couleur et
lumens :
NEONW4M : 6500 K,
700 lumens, IRC > 80
NEONWW4M: 3000K,
700 lumens, IRC > 80
NEONBL4M: S/O
NEONR4M: S/O
Limited Warranty
Under normal use and conditions, AmerTac provides to the original purchaser of this product
a two year limited express warranty that is set forth in the Limited Warranty stated in full at
www.amertac.com/warranties. The Limited Warranty is in lieu of all other express or implied
warranties or liabilities subject to the exceptions explained fully in the Limited Warranty on
the website.
CET
Especificaciones
Entrada 120 V CA, 60 Hz, 2 W
Salida 396 W
120 LED/metro (1 LED/0.3
pulg.)
Longitud: 4 m (13.1 pies)
8 mm x 16 mm
IP65
LED con 50,000 horas de
duración
Extensión hasta 54.9 m (180
pies)
Para uso en interiores/
exteriores.
Température de couleur et
lumens :
NEONW4M : 6500 K,
700 lumens, CRI > 80
NEONWW4M: 3000K,
700 lumens, CRI > 80
NEONBL4M: S/O
NEONR4M: S/O
