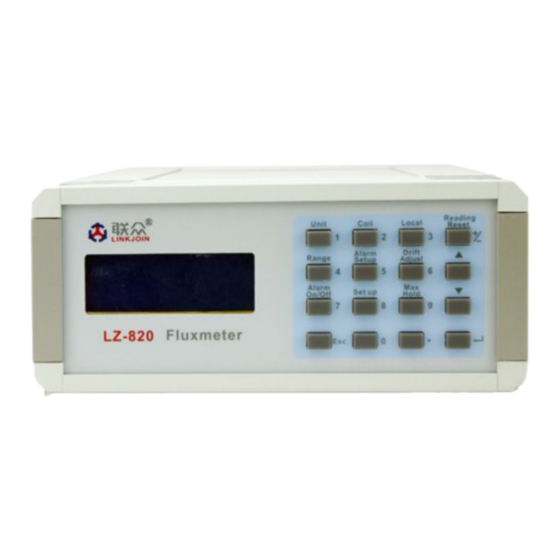

LZ Series Flux Meter

——LZ-820

1. Product Introduction

LZ-820 flux meter is a precision flux meter, which uses

different induction coil to measure alterable

magnetic flux. The basic part is the analog integrator controlled by embedded microprocessor. Analog

integrator is quite flexible, it can work well in different fields. Embedded microprocessor not only improves the

function of the integrator, it also adds a variety of useful functions to the machine.

LZ-820 flux meter is fast, easy to use, automatic operation mode and manual mode can be selected at

random.

- 1 -

Source Industrial Supply, Ph: +1-505-550-6501, Fx: +1-505-814-5778, Em: info@sourceindustrialsupply.com, Web: http://www.sourceindustrialsupply.com

Brochure Reference Code: OICASLINKJOIN

Table of Contents

Need help?

Do you have a question about the SIS LZ Series and is the answer not in the manual?

Questions and answers

Summary of Contents for AGSTECH SIS LZ Series

Page 1 LZ Series Flux Meter ——LZ-820 1. Product Introduction LZ-820 flux meter is a precision flux meter, which uses different induction coil to measure alterable magnetic flux. The basic part is the analog integrator controlled by embedded microprocessor. Analog integrator is quite flexible, it can work well in different fields. Embedded microprocessor not only improves the function of the integrator, it also adds a variety of useful functions to the machine.
Page 2 2. Main Features  16-key keyboard, with multiplexing function  High reliability Embedded microcomputer control   4 ¾ digit display resolution  Can store parameters of five coils With superior drift suppress function, high anti-noise function,   RS-232, parallel output interface ...
Page 3 3. Screen Description Most of data above the white line are measured values: <+0.0000 >: the current measured value, display 4 digits, 1 sign bit, 1 decimal bit. <mVs>: unit of measured value, it can be set by the “Unit” key. <R>: R means that it’s in the remote control mode at the moment, without it means local control mode;...
Page 4 7. Warranty Manufacturer warrants each instrument of its manufacture to be free from defects in material and workmanship. Our obligation under this warranty is limited to servicing or adjusting any instrument returned to our factory for that purpose. The warranty period is 18 months. On returning the equipment under warranty, the buyer bears the costs for the shipment to AGS-TECH;...
