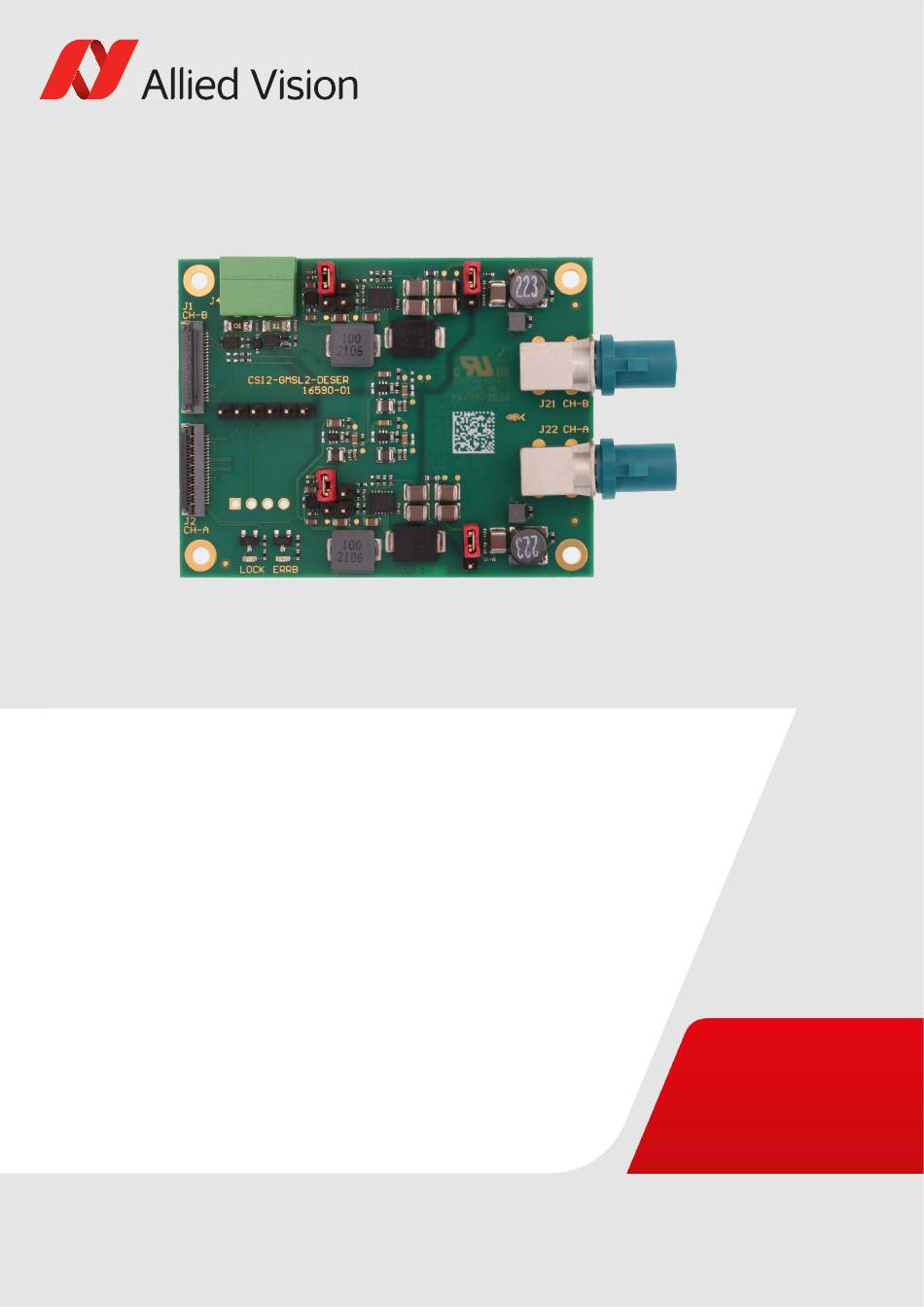

- Page 1 GMSL2 C LVIUM AMERAS Deserializer Board GMSL2 Coax to CSI-2 User Guide V1.0.0 Allied Vision Technologies GmbH // Taschenweg 2a, 07646 Stadtroda / Germany 2023-Apr-27...
-
Page 2: Read Before Use
Read before use Quick links • This document at a glance on page 9 • Contact us on page 11 • Contents on page 12 Read before use EN - English Safety Before using the product, read these safety instructions. Observe the warnings at all times. - Page 3 Read before use DE - Deutsch Sicherheit Bevor Sie das Produkt benutzen, lesen Sie diese Sicherheitshinweise. Beachten Sie diese Hinweise immer. Verwenden Sie das Produkt nur wie beschrieben in Intended use auf Seite 18. Gefahr von Verbrennungen Im Betrieb kann das Produkt Temperaturen erreichen, die zu Verbrennungen führen.
- Page 4 Read before use FI - Suomi Turvallisuus Lue nämä turvallisuusohjeet ennen tuotteen käyttöä. Noudata tuotetta joka hetki. Käytä tuotteen ainoastaan kohdassa Intended use sivulla 18 kuvatulla tavalla. HUOMIO Palovammojen vaara Käytössä olevan tuotteen saavuttamat lämpötilatasot voivat aiheuttaa palovammoja. Käyttötarkoitus Allied Vision -tuotteen käyttötarkoitus on integrointi kuvajärjestelmiin ammattilaisten toimesta.
- Page 5 Read before use ת י ר ב ע HE - ת ו ח י ט ב . ד י מ ת ו ל א ן ו ח ט י ב ת ו א ר ו ה ש מ מ ל ך...
- Page 6 Read before use JA - 日本語 安全性 本製品を使用する前に、この安全ガイドをお読みください。警告を必ず 守ってください。必ず21ページのIntended use 18 ページに従って使用し てください。 注意 やけどの危険性 作動中のカメラは、やけどを引き起こす温度まで熱くなる恐れがありま す。 用途 Allied Vision製品は、専門家が視覚装置に統合することを意図したもの です。すべてのAllied Vision製品は、企業間取り引き用に販売されてい ます。 NL - Nederlands Veiligheid Lees deze veiligheidsinstructies voordat u het product gebruikt. Neem deze waarschuwingen altijd in acht. Gebruik het product uitsluitend, zoals aangegeven in het Intended use op pagina 18.
- Page 7 Read before use NO - Norsk Sikkerhet Les disse sikkerhetsinstruksene før du bruker produkt. Følg advarslene til en hver tid. Bruk kun produkt i samsvar med Intended use på side 18. FORSIKTIG Risiko for brannskader Produktet i bruk kan nå temperaturnivåer som kan forårsake brannskader. Tiltenkt bruk Den tiltenkte bruken av Allied Vision-produktet er integrering i visjonssystemer av profesjonelle.
- Page 8 Read before use ZH - 简体中文版 安全需知 在使用产品之前，请阅读这些安全说明。请务必遵守相关警告 和 Intended 于第 18 页 . 注意事项 烫伤风险 在产品运行过程中，温度可能会上升，导致烧伤的危险。 预期用途 Allied Vision 产品的预期用途是由专业人士整合到视觉系统中。所有 Allied Vision 的产品均通过 B2B 渠道销售。 Deserializer Board GMSL2 Coax to CSI-2 User Guide V1.0.0...
-
Page 9: This Document At A Glance
This document at a glance Get an overview of documentation for the Deserializer Board GMSL2 Coax to CSI-2: Note..................10 Shipping contents..............10 What else do you need? ............10 Deserializer Board GMSL2 Coax to CSI-2 User Guide V1.0.0... -
Page 10: Note
This document at a glance Note Read this document carefully Learn to use deserializer boards in the most safe and efficient way and avoid damage to your embedded system. Shipping contents The delivery consists of • Deserializer Board GMSL2 Coax to CSI-2 •... -
Page 11: Contact Us
Shanghai 200235, China T// +86 21 64861133 Allied Vision Technologies, Inc. Singapore 102 Pickering Way - Suite 502 Allied Vision Technologies Asia Pte. Ltd Exton, PA 19341, USA 82 Playfair Rd, #07-01 D'Lithium Toll-free// +1-877-USA-1394 Singapore 368001 T// +1 978 225 2030 T// +65 6634 9027 Deserializer Board GMSL2 Coax to CSI-2 User Guide V1.0.0... -
Page 12: Table Of Contents
Contents Contents Read before use ..............2 This document at a glance . - Page 13 Contents Mounting deserializer boards ............. . . 33 Connecting components to each other.
-
Page 14: Document History And Conventions
Document history and conventions This chapter includes: Document history ..............15 Conventions used in this user guide........15 Component naming .............. 16 Deserializer Board GMSL2 Coax to CSI-2 User Guide V1.0.0... -
Page 15: Document History
Document history and conventions Document history Version Date Remarks V1.0.0 2023-Apr-27 Release version Table 2: Document history Conventions used in this user guide To give this user guide an easily understood layout and to emphasize important information, the following typographical styles and symbols are used: Typographical styles Style Function... -
Page 16: Component Naming
Document history and conventions Component naming Components described in this user guide are not defined by common standards. Therefore, naming must be accurate to avoid misconceptions. Simplified terms are used in this document to avoid lengthy naming. Short version used in Long version this document Example:... -
Page 17: Compliance, Safety, And Intended Use
Compliance, safety, and intended use This chapter includes: Compliance notifications ............18 Intended use ................. 18 Copyright and trademarks ............ 18 Your safety................19 Product safety ............... 19 Deserializer Board GMSL2 Coax to CSI-2 User Guide V1.0.0... -
Page 18: Compliance Notifications
All trademarks, logos, and brands cited in this document are property and/or copyright material of their respective owners. Use of these trademarks, logos, and brands does not imply endorsement. Copyright © 2023 Allied Vision Technologies GmbH. All rights reserved. Deserializer Board GMSL2 Coax to CSI-2 User Guide V1.0.0... -
Page 19: Your Safety
Compliance, safety, and intended use Your safety This section informs about issues related to your personal safety. Descriptions explain how to avoid hazards and use deserializer boards safely. Handling hot deserializer boards Electrical components of deserializer boards get hot during operation. Before operation, include deserializer boards in housings that disable any contact to hot components. - Page 20 Compliance, safety, and intended use Strain relief for all cable connections If FAKRA coaxial connectors are exposed to excessive stress, they can break off from devices. Hirose FH55 FPC connectors can be damaged easily. Provide sufficient strain relief for all cable connections to avoid malfunctions and damage to electronics by wrong polarity and short circuits.
- Page 21 Compliance, safety, and intended use FPC connectors Small-sized Hirose FH55-22S-0.55SH FPC connectors enable compact board design. Therefore, they are sensitive to mechanical stress. Especially if you are inexperienced with these, be very cautious. If FPC connectors are broken, the complete device must be replaced. Follow the instructions in Connecting FPC cables on page 31 carefully.
- Page 22 Compliance, safety, and intended use No hot-plugging for GMSL2 Alvium FP3/GM2 Coax cameras do not support hot-plugging. Hot-plugging can destroy the camera and connected hardware by high inrush current. Disconnect power supplies before connecting or disconnecting devices from each other. Signal quality Noise and electromagnetic interference can disable camera functions.
-
Page 23: Specifications
Specifications This chapter includes: Specifications overview............24 PCB and PCBA number............25 Technical drawing..............25 Electronic schematics ............26 Deserializer Board GMSL2 Coax to CSI-2 User Guide V1.0.0... -
Page 24: Specifications Overview
Specifications Specifications overview Feature Specification Product code 19503 PCB number 16590 (see PCB and PCBA number on page 25) PCBA number 16591 (see PCB and PCBA number on page 25) Connector to the host Hirose FH55-22S-0.5SH FPC connector Connector to the camera 2 ×... -
Page 25: Pcb And Pcba Number
Specifications PCB and PCBA number The PCB number is printed to the FPC connector side as shown in Figure 4. The PCBA number is printed on the bale of the shipping bag. PCB number Figure 4: PCB and PCBA number on deserializer boards Technical drawing 2.6 (4x) 12.7... -
Page 26: Electronic Schematics
Specifications Electronic schematics CFG0 CFG1 GMSL2-OUTA 50 Ohm I² C / RoR COAX / Tunnel z = 50 Ohm +/-10% 100n 0x50 0x54 0x98 0xD4 3 Gbps 6 Gbps B7-CSI2-TXCA_P 100 Ohm PullUP 80,6kOhm 68,1kOhm 56,2kOhm 44,2kOhm 32,4kOhm SIOAP CKAP B7-CSI2-TXCA_N 100 Ohm SIOAN... - Page 27 Specifications Power circuits 24V / 12V (10.8V - 26.4V) external Power Boost must be disabled if 24V / 12V supply is connected. reverse polarity protection 5V (4.5V ... 5.5V) external Power R_dson = 30 mOhm +12V/24V Ext-PoC 1.5A BUK6D43-40PX VLIN2626-02GHE3 MC 1,5/3-G-3,5 Vbr = 28V-32V @ 1mA BAS516...
-
Page 28: Setting Up Deserializer Boards
Setting up deserializer boards This chapter includes basic instructions on cable connectors: Connecting FAKRA coaxial cables.......... 29 Connecting FPC cables ............31 Followed by instructions for: Mounting deserializer boards..........33 Connecting components to each other........ 33 Connecting power..............34 Deserializer Board GMSL2 Coax to CSI-2 User Guide V1.0.0... -
Page 29: Connecting Fakra Coaxial Cables
Setting up deserializer boards Connecting FAKRA coaxial cables The robust FAKRA coaxial connectors are optimized for one-time plugging in the automotive industry. Unplugging cable connectors is uncomfortable, which may lead to camera damage. Please follow the instructions in this section. NOTICE Damage to cameras and connected peripherals If FAKRA coaxial connectors are exposed to excessive stress, they can break off... -
Page 30: Instructions For Connecting
Setting up deserializer boards Instructions for connecting 1. Grab the device (the camera in this example) with one hand and the cable-side connector with the other hand. 2. Align the groove (b) of the cable-side connector with the notch (a) of the device’s connector. -
Page 31: Connecting Fpc Cables
Setting up deserializer boards Connecting FPC cables Front guide Figure 11 shows how the FPC cable connects to the FPC connector. Figure 11: FPC cable and FPC connector (open position) Actuator 1. Opening the FPC connector: With your fingernail*, flip the max. - Page 32 Setting up deserializer boards Conductors Actuator Connector 3. Inserting the FPC cable: At a horizontal angle of 90° to the rear connector’s rear (see Figure Side guide FPC connector and at a vertical angle of 12° to the PCB (see Figure 15), slowly insert 90°...
-
Page 33: Mounting Deserializer Boards
Setting up deserializer boards Mounting deserializer boards CAUTION Burns to the skin Electrical components get hot during operation. Before operation, include deserializer boards in housings that disable any contact to hot components. NOTICE Damage to electronics • Disconnect all power supplies before installing deserializer boards. •... -
Page 34: Connecting Power
Setting up deserializer boards Connecting power NOTICE Damage to power supplies If power supplies do not provide sufficient current, they may be damaged. Ensure external power supplies or embedded boards provide minimum 1500 mA for 5 VDC or minimum 600 mA for 12 VDC correspondingly. 1.
