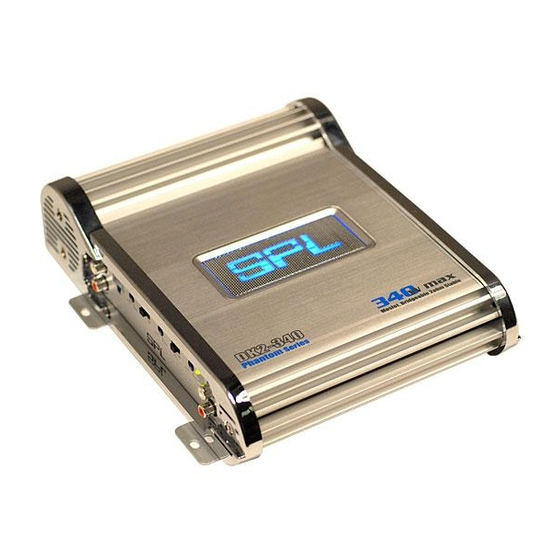

- Page 2 AMPLIFIERS SPL introduces the new Phantom series amplifiers with stylish wedge shape case with cool blue back-lit mesh logo plate. Once again we have coupled this with our proprietary mosfet power supply and 18db. Subwoofer slopes with dash mounted bass controls on 1000 watt and up versions. All connectors are tri-angular crystalline terminal blocks for simplified installation.
- Page 3 COOL BLUE BACK LIT MESH LOGO PLATE COMMON FEATURES FOR CLASS A/B SERIES: • Full Mosfet Power Supply • PWM Circuitry • Full Selectable Crossover Hi/Full/Low • Three Way Protection Circuit • 2 Ohm Stable Stereo • Tri-Mode Capable • Variable Low Pass 40Hz-250Hz • Variable Hi Pass 40Hz-250Hz • Variable 18 dB Bass Boost @ 40Hz FOR CLASS A/B SERIES: Model 2ch/4ch 4ohm RMS 2ohm RMS DK2-340 80x2 95x2...
- Page 4 SERIES AMPLIFIERS This new series of amplifiers were designed to meet the demanding condi- tions todays youth provide. Although, it’s not just for the young ones, this se- ries includes a function called “Hyper Bass” which will boost the low frequen- cies in the adjusted range, this can appeal anyone.
- Page 5 Embossed Logo FOR CLASS A/B SERIES: • Full Mosfet Power Supply • PWM Circuitry • Full Selectable Crossover Hi/Full/Low • Three Way Protection Circuit • Tri-Mode Capable • Variable Low Pass 40Hz-250Hz • Variable Hi Pass 40-250Hz • Variable 18dB Bass Boost @ 40Hz. • Frequency Response: 10Hz to 30Khz Model 4oHM RMS 2oHM RMS FX2-420 80X2 95X2 FX2-600 95X2 120X2 FX2-800 150X2 180X2 FX2-1250 220X2 280X2 FX2-1800 300X2...
- Page 6 SPLW SUBWOOFER Dual 1ohm Extreme competition Subwoofers If you want bass that leaves a lasting impression with your friends and neighbors, the SPLW series woofers do it all. Specifically designed for use in a ported box to give you the ultimate in heart pounding, vision-blurring bass. Common Features • Cloth laminated paper cone with MD6 coating • Dual 1 ohm voice coil...
- Page 7 Should you lead, or follow, the S3 is made to lead!! S3-10H • 1800 watts power handling • 600 watts RMS • 140 oz. Magnet • 2.5” BAEISV Aluminum Voice Coil • Fs: 37Hz • Vas: .58 cu.ft. • Qes: .1.025 • Qms: 7.224 • Qts: .897 • Xmax: .57” • SPL: 81dB • Mounting Depth: 5.875” • Recommended Box Type S/P/BP S=Sealed / P=Ported / BP=Bandpass ALUMINUM DUST CAP REINFORCED PP CONE DUAL 4 Ohm COILS DUAL STACKED MAGNETS S3-12H • 2000 watts power handling • 700 watts RMS • 140 oz. Magnet • 2.5” BAEISV Aluminum Voice Coil...
- Page 8 Available in 10”, 12” and 15” sizes with dual 4 ohm coil configurations. S2-10M • 1100 watts power handling • 400 watts RMS • 100 oz. Magnet • 2” BASV Aluminum Voice Coil • Fs: 37Hz • Vas: .812 cu.ft. • Qes: .694 • Qms: 8.373 • Qts: .641 • Xmax: .375” • SPL: 84dB • Mounting Depth: 5.25” • Recommended Box Type S/P/BP S=Sealed / P=Ported / BP=Bandpass S2-12M • 1200 watts power handling • 450 watts RMS • 100 oz. Magnet • 2” BASV Aluminum Voice Coil • Fs: 34Hz • Vas: 1.64 cu.ft. • Qes: 1.018 • Qms: 13.357 • Qts: .946...
- Page 9 4 ohm coils and in three popular sizes - 10”, 12” and 15” sizes. S1-10L • 800 watts power handling • 300 watts RMS • 70 oz. Magnet • 1.5” BASV Aluminum Voice Coil • Fs: 36Hz • Vas: 1.2 cu.ft. • Qes: .858 • Qms: 9.718 • Qts: .788 • Xmax: .2” • SPL: 84.7dB • Mounting Depth: 4.625” • Recommended Box Type S/P S=Sealed / P=Ported / BP=Bandpass UDV Coated PP CONE DUAL 4 Ohm COILS DISCRETE MOUNT TERMINALS S1-12L • 900 watts power handling • 350 watts RMS • 70 oz. Magnet • 1.5” BASV Aluminum Voice Coil • Fs: 29Hz • Vas: 3.86 cu.ft.
- Page 10 SERIES FULL RANGE SPEAKERS AS-6830 6x8” 3 Way Speakers 200 Watts • 23 oz Magnet • 1.5” Voice Coil • SPL 91 dB • Imp. 4Ohm • Electro Plated Silver CD Hairline Cone • Rubber Butyl Surround • Freq. Resp. 60Hz to 20KHz • Polymide Midrange • Superior Dome Tweeter • Including Grills AS-6520 6.5” 2 Way Speakers 160 Watts • 18 oz Magnet • 1.25” Voice Coil • SPL 91dB • Imp. 4 Ohm • Electro Plated Silver CD Hairline Cone • Rubber Butyl Surround • Freq. Resp. 60Hz to 20KHz • Polymide Midrange • Including Grills AS-420 4” 2 Way Speakers 110 Watts • 10 oz Magnet • 0.75” Voice Coil • SPL 90dB • Imp. 4 Ohm • Electro Plated Silver CD Hairline Cone • Rubber Butyl Surround • Freq. Resp. 90Hz to 20KHz • Superior Dome Tweeter • Including Grills AS-4620 4x6” 2 Way Speakers 120 Watts • 10 oz Magnet...
- Page 11 4 - Way Mount tWeeter 250 Watts • Niobium Rare Earth Ferroelectric Transducer Magnet • Polypropylene Diaphragm • 125 Watts R.M.S. • Freq. Resp. 5KHz-25KHz • Imp. 4 Ohm • Surface/Angle Mount • SPL 97dB • Built in Crossover SP-3 (aluMInuM dIe-cast HousInG FlusH/anGle/surFace Mount neodyMIuM tItanIuM doMe tWeeter 220 Watts • Adjustable Eyeball Angle Design • In-Line Crossover Network •...
- Page 12 CAPCELL TO CAP OR TO CELL? THAT IS THE QUESTION! Often called a “power cap” or “stiffening cap”, some people prefer caps over secondary batteries. A second battery is great for high power systems, but should be accompanied by an upgraded alternator that can efficiently charge both batteries. This gets expensive. A cap stores power too, but can charge and discharge in a fraction of a second, depend- ing on size.
- Page 13 series DIGITAL POWER CAPACITORS CP 2.0 Digital power capacitor • 2 Farad • 24 Volts DC • Digital display • Blue LED lights • Brushed aluminum with black mesh jacket • Chrome mounting bracket HYBRID SUPER CAPACITORS CP 8.0 Digital hybrid power capacitor • 8 Farad • 24 Volts DC • Digital blue display • Blue LED lights • Low profile mounting system • Chrome mounting brackets CP 3.0 Digital power capacitor • 3 Farad • 24 Volts DC • Digital display • Blue LED lights • Brushed aluminum with black mesh jacket • Chrome mounting brackets CP 15.0 Digital hybrid power capacitor • 15 Farad • 24 Volts DC • Digital blue display • Blue LED lights...
- Page 14 Meter systems Plasma displays Equalizers METER-4 • Universal amplifier status and distress monitoring system Voltage meter • Temperature meter • Twin VU meters • Cool blue back-lit meters • Three-way mounting (Under dash L-bracket, Console or A-pillar mount, ISO din mounting system) • Separate easy mount control box and cabling PLASMA-1 • Three color rectangular lightning dish (Red, White and Blue) • Responds to music (Signal Inputs) • Voice recognition by microphone • Pre-programmed auto pulse • Cut-in mounting shroud • Butterfly stand mounting system SPQ-20 4 Band ParaMetrIc Pre-aMP equalIzer • Separate Volume & Sub Woofer Controls • 4 Gain Controls +/- 18 dB. • Sub Woofer Crossover (30~250Hz.) • Isolated PWM Power Supply • Max Output Voltage: 8 Volts • Selectable Radio/CD (Aux) Inputs • Sub Woofer Output (Gain) Control • Master Volume (Gain) Control Sk-4g • 4 ga. / 20 ft Clear Red Power Cable • 4 ga. / 3 ft Clear Black Ground Cable • 12 ga. / 33 ft. Clear Speaker Cable • 17 ft. Blue Turn On Cable Sk-8g • 8 ga. / 20 ft Clear Red Power Cable • 8 ga. / 3 ft Clear Black Ground Cable • 16 ga. / 33 ft. Clear Speaker Cable...
- Page 15 in-dash dvd monitors SID-7205N 7” WIde toucH screen douBle-dIn In-dasH MotorIzed tFt MonItor/dVd/aM/FM • Fully Motorized 4 position drop screen with last angle memory • (Optional) Navigation Black Box Module with Navteq maps of North America • Electronic Touch Screen functions include DVD, Radio, USB, & MP-3/4 • DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX • Menus can be displayed on screen via OSD (fourteen languages) • 30-second electronic anti-shock mechanism • Accessory I-Pod Input Connection (Cable not Included) • USB mini input for MP-3 Music, DiVx, Xvid & MP-4 Movies • SD Card Slot for MP-3 Music or MP-4 Movies (memory not included) • Front Panel Aux-in for Earphone Output of MP-3 players • IR Repeater Function for External Remote Eye • Antenna trigger wire •...
- Page 16 SID-7100n 7” WIde toucH screen 1-dIn oVersIzed Fully MotorIzed tFt MonItor/dVd/aM/FM • Fully Motorized 4 position drop screen with last angle memory • (Optional) Navigation Black Box Module with Navteq maps of North America • Electronic Touch Screen functions • DVD/DVD-RW/VCD/CD/CDR/CDRW/MP-3/MP-4/DivX • All functions are displayed on screen via OSD (fourteen languages) NAVIBOX-1 PluG-n-Play sMall naVIGatIon Box Module WItH naVteq MaP Works WItH coMPatIBle Head unIts • Touch screen control with compatible head units • Plug-n-play easy installation & mounting •...
- Page 17 SID-4700 3.6” WIde razor look dIn sIze In-dasH Fully MotorIzed tFt MonItor/dVd/aM/FM • Fully Motorized detachable 5 position drop screen with last angle memory • Razor front panel with back-lit EL sheet for night viewing • DVD, CD, MP-4, MP-3, CDR, CDRW Player NTSC/PAL compatible • All functions are displayed on screen via OSD (sixteen languages) • 30-second electronic anti-shock mechanism • SD Card Slot for MP-3 Music or MP-4 Movies (memory not included) • Accessory I-Pod Input Connection (Cable not Included) • USB mini input for MP-3 Music or MP-4 Movies • Antenna trigger wire SID-4100 3.6” 4:3 ratIo dIn sIze In-dasH Fully MotorIzed tFt MonItor/dVd/aM/FM •...
- Page 18 ceiling monitors M-1004CMgR (gRAY) / M-1004CMBg (BEIgE/NEUTRAL) 10.4” sWIVel tFt/lcd FlIP doWn • Slim and Compact Design • Easy Installation • NTSC/PAL Auto Select • On Screen Display with Remote Control • 1 Video/Audio(R/L) Inputs • 1 A/V Output • 2 Screen modes (letter boxed & full screen) • Rear panel (Auxiliary Input) • Built-in IR transmitter for wireless headphones • Dome lights • Resolution: 1600 x 320 • Brightness: 380 NIT PACkAgES: M-1004Pkg/g (gRAY) M-1004Pkg/B (BEIgE/NEUTRAL) 10.4”...
- Page 19 headrest monitors SHD-95gR (gRAY) / SHD-95gRDk (DARk gRAY) SHD-95Bg (BEIgE) / SHD-95Bk (BLACk) 2 Pre-Installed unIVersal Headrests WItH 9.5” WIde screen tFt/lcd MonItors Pole diameter Options 5/8” or 7/16” Mimimum 4.75” Maximum 7.7” • Amorphous Active Matrix TFT/LCD • 2 Audio/Video Inputs • Built-in IR for Wireless Headphones • PAL/NTSC Switchable • OSD on Screen Display • Remote Control M-700 7”...
- Page 20 HEADPHONE HP-10S FoldaBle sInGle cHannel Ir WIreless HeadPHone • EVA hard carrying case included • Adjustable Headphone Straps for Comfort • Receives Broadcasts up to 180 Degrees from Transmitter • On/Off Switch Saves Battery Life • Auto Power Off Function • Auto Mute Function • Variable Volume Control • ALC Auto Level Control HP-22IRT 2 sWIVel ear Pad sInGle cHannel Ir WIreless HeadPHones WItH transMItter • Ear Pads fold flat for seat pocket storage • EVA hard carry case included • Adjustable Headphone Straps for Comfort • Receives Broadcasts up to 180 Degrees from Transmitter...
- Page 21 accessories AVIR-4 WIreless audIo/VIdeo controller • 4 A/V inputs & 4A/V outputs • All Outputs Independently Selectable Via IR Wireless Remote • Remote Eye & Remote Control • Four 12volt output Triggers on Molex connectors TUNER-42R 69 cHannel tV uner • 2 Booster Antenna Inputs On Mini-jacks • Remote Control Operation Via 18' Remote Eye • Dual A/V Inputs • Single A/V Outputs LP-1CA lIcense Plate color caMera WItH adjustaBle VIeWInG anGle CCD-4XS extra sMall rear VIeW color caMera • 1/4” CCD 0.3 Lux Low Light Color Camera • Ultra Small Connections for Stealth Mounting • Din Connector & RCA Outputs...
- Page 22 EFM-01 Pll FM Modulator • PLL Phase Lock Loop Tuner Outputs • 8 Frequency Settings On Selectable DIP Switches • Shielded Metal Housing For Noise Rejection INV-3GP 300 Watt 12 Volt PoWer InVerter WItH FaMe Port • Regulated DC • Dual Outputs 110V 60 Cycles • Replaceable 20 Amp Spade Fuse • Thermal, Over Voltage, & Under Voltage Protection • On/Off Switch • Easy Snap-on Mounting System Game Port ANT-1 4 cHannel dIVersIty tWIn antennas • Antenna leads, (4 Mini-plugs) • Cable Length 12 Feet • Receives Signals On Ch. 2-13 & 14-69...
- Page 23 AVC-1.5 1.5 FEET RCA CABLES AVC-3 3 FEET RCA CABLES AVC-6 6 FEET RCA CABLES AVC-9 9 FEET RCA CABLES AVC-12 12 FEET RCA CABLES AVC-17 17 FEET RCA CABLES xenon bulbs Farenheit Super White Xenon charged blue bulbs reduce eyestrain and increase safety by sharpening your view. They give you clarity, brilliance and sparkle of HID (high intensity discharge)lighting systems. They reflect much better on road markings and signs and make you less tired during night time driving. suPerWHIte BulBs 12V 100W 12V 100W 12V 100W/90W 9006 9007 H13/9008 12V 80W 12V 100/80W 12V 65W/55w banner & t-shirt Audio Video RCA Cables Double Shielded RCA Connectors Finely Braided Screen S-VHS with HIgh Conductivity Copper Coil 12V 100W 12V 35W front front all models come in pairs 9004 9005...
