Delta Dryden 4551 Series Manual

Delta Dryden 4551 Series Manual

Two handle mini-widespread lavatory faucets
Hide thumbs Also See for Dryden 4551 Series:
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
U P
®
ASME A112.18.1 / CSA B125.1
NSF-61
ICC/ANSI A117.1
4551 Model/Modelo/Modèle
Dryden
™
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de
débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.deltafaucet.com
53364
C
®
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
3/32" (2.38mm)
TWO HANDLE MINI-WIDESPREAD
LAVATORY FAUCETS
LLAVES DE LAVAMANOS DE DOS MANIJAS
DE MINI-EXTENSIÓN
ROBINETS DE STYLE "À ENTRAXE LONG" À
DEUX POIGNÉES POUR LAVABO STANDARD
53364
1
09/22/11 R
ev. E

Advertisement

Table of Contents
loading

Related Manuals for Delta Dryden 4551 Series

Summary of Contents for Delta Dryden 4551 Series

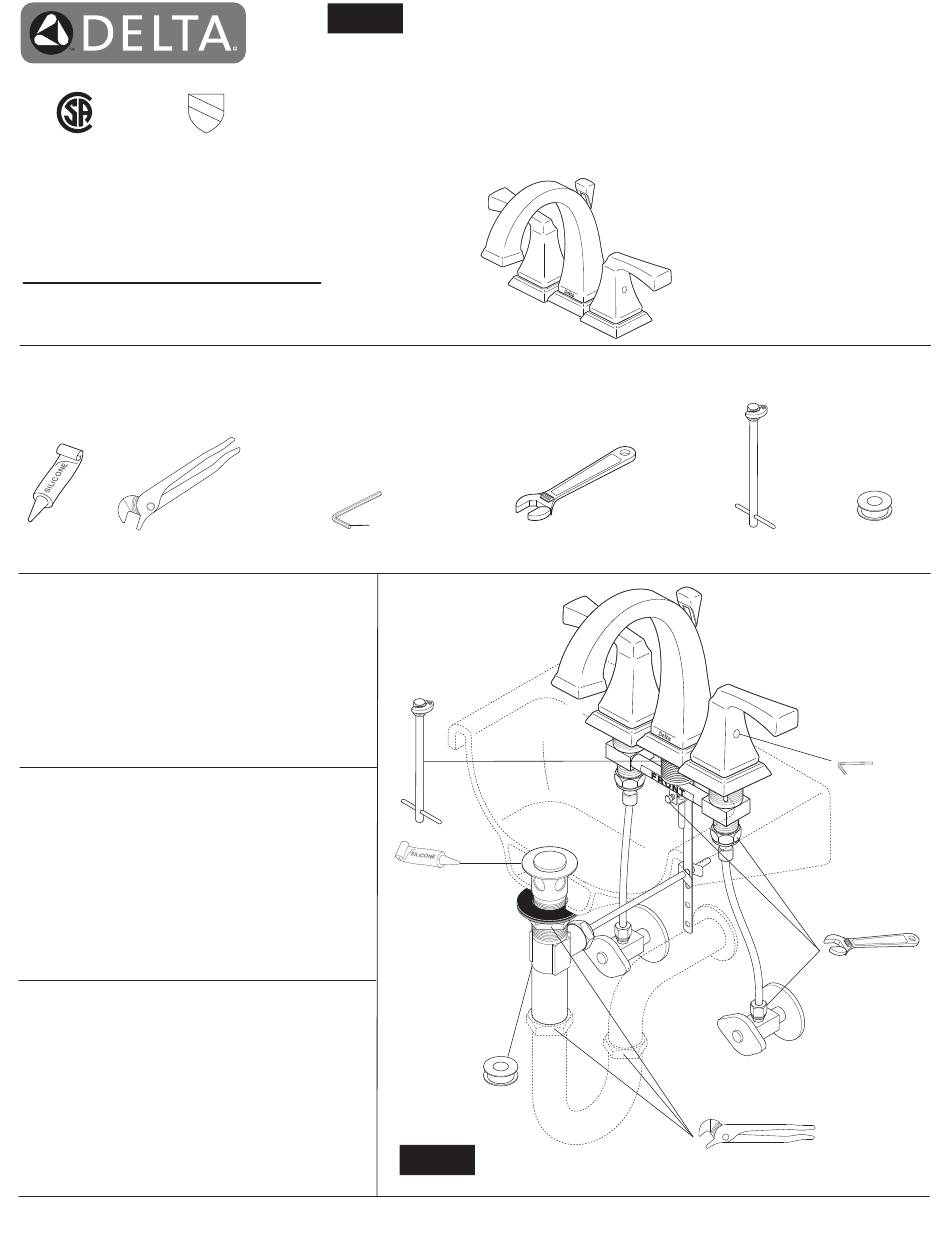

  • Page 1 • To READ ALL warnings, care, and maintenance information. • To purchase the correct water supply hook-up. Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente antes de empezar. • LEER TODOS los avisos, cuidados, e información de mantenimiento.
