Summary of Contents for EV Rider TranSport S34-FD

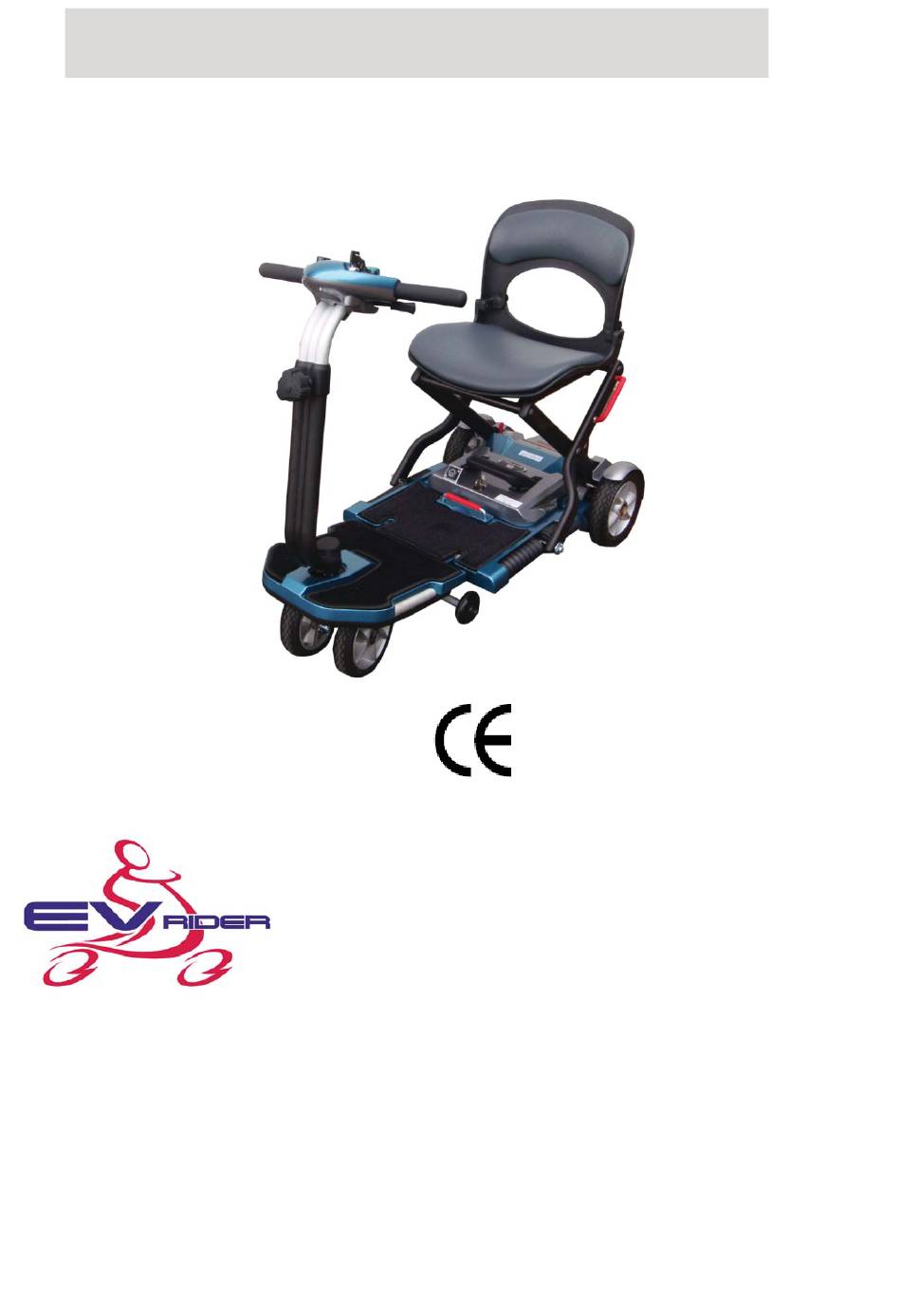

- Page 1 USER MANUAL S34-FD TranSport scooter Electrically powered Class A (EN 12184) EV Rider, LLC 6410 Arc Way - Suite A Ft. Myers - FL 33966 USA...
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTION…………………………………...……………........…3 2. ELECTOMAGNETIC INTERFERENCE(EMI)…………….…………………………………7 3. TECHNICAL SPECIFICATION…….…….………………..……………….…………………..9 4. ADJUSTMENT…………………………………………………………………………..………10 5. OPERATION OF CONTROL PANEL…………………………………..……………………..12 6. BATTERY AND CHARGING INSTRUDCTION….…………..……………………….…..…16 7. MAINTENANCE & REPAIR…..……………….………...………………….………..……..…18 8. TROUBLESHOOTING & FAULT REPAIR……….………..…………………………………20 9. CIRCUIT DIAGRAM…….………..…….……..………………………..………………………21 10. BOM LIST DRAWING………………....…………………….………….…………………22 11. WARRANTY DECLARATION…………………………………………………………………23... -
Page 3: Safety Instruction
SAFETY INSTRUCTION ‹ General Never operate the scooter while you are under the Do not ride your scooter in traffic influence of alcohol. Make sure that there are no obstacles behind you while Never use electronic radio transmitters such as reversing your scooter. - Page 4 Do not attempt to climb curbs greater than limitation Do not leave your hands and legs off the scooter when shown on Technical Specification driving. Do not operate your scooter during inclement weather. Do not allow unsupervised children to play near this This reduces the possibility of an accident or possible equipment while the batteries are charging.
- Page 5 a family member or care professional especially trained in assisting a scooter user in various daily living activities. Consult with your physician if you are taking any medication that may affect your ability to operate your scooter safely. Do not attempt to lift or move a power scooter by any of its removable parts including the armrests, seats or shrouds.
- Page 6 ‹ Modifications This model has been designed and engineered to provide maximum utility. However, under no circumstances should you modify, add, remove, or disable any part or function of your power scooter. Personal injury and damage to the power chair may result. 1.
-
Page 7: Electomagnetic Interference(Emi)
ELECTROMAGNETIC INTERFERENCE (EMI) The rapid development of electronics, especially in the area of communications, has saturated our environment with electromagnetic (EM) radio waves that are emitted by television, radio and communication signals. These EM wave are invisible and their strength increases as one approach the source. All electrical conductors act as antennas to the EM signals and, to varying degrees, all power wheelchairs and scooters are susceptible to electromagnetic interference (EMI). - Page 8 TURN OFF YOUR POWERED SCOOTER AS SOON AS POSSIBLE WHEN EXPERIENCING THE FOLLOWING: ¾ Unintentional scooter movements ¾ Unintended or uncontrollable direction. ¾ Unexpected brake release The FDA has written to the manufacturers of power scooters asking them to test new products to be sure they provide a reasonable degree of immunity against EMI.
-
Page 9: Technical Specification
TECHNICAL SPECIFICATIONS MODEL S34-FD TranSport WEIGHT CAPACITY 115kgs(250 lbs) SEAT: TYPE/SIZE 16" Fish-on DRIVE WHEEL 200mmx50mm(8"x2") FRONT CASTER (WHEEL) 180mmx40mm(7"x1.6") REAR CASTER (ANTI-TIPPER) Option MAX SPEED 4MPH (6.5KP/H) Li-Battery: 24V 11.5Ah Li-Polymer (14.5 option) BATTERY SPECIFICATIONS Lead-Acid: 12V 12AH X 2 BATTERY RANGE 20km CHARGER TYPE... -
Page 10: Adjustment
ADJUSTMENT It is very easy to assemble your S34-FD TranSport scooter. Please follow the procedure below. S34-FD power scooter has an aluminum alloy body and can be easily folded to fit in the car for transportation. It also has easy to use controls and adjustable tiller positioning. Ö... - Page 11 How to Un-Fold the Scooter x Lean the folded scooter on the floor resting on the rear wheel x Pull the red lever on the side of the scooter and begin unfolding it from the tiller. x Make sure to open the tiller until the two front wheels touch the ground and you hear a click indicating that the scooter is locked in the open position.
-
Page 12: Operation Of Control Panel
OPERATION OF CONTROL PANEL The power scooter is simple to operate. However, we recommend that you read carefully the following instructions to become familiarized with your new vehicle. A Word of Caution: Before you turn the power on, always be aware of the environment that surrounds you to select your desired speed. - Page 13 3. Power ON/OFF Light: The light will turn on when you turn the key to the on position. The light will turn off when you turn the key to the off position. 4. Horn button: Press this button to sound the horn. Driving: A) Controller ON/OFF Switch Insert the key to power on the scooter (Remove the key to power off).
- Page 14 lower when using the battery, regardless the battery voltage. The remaining battery meter needle goes higher only when recharging battery in progress. 2. System will power off when the battery voltage is lower than 21.0V. 3. System will be automatically power-off when the vehicle is not in use over 30 minutes. You need to remove the key and insert the key to restart the scooter.
- Page 15 brake function by moving the engaging/disengaging lever back into the engaged position by an attendant. Thermal Protection: Your power scooter controller is equipped with a safety system called thermal rollback. A built-in circuit monitors the temperature of the controller and motor. In case of excessive heat of the controller and motor, the controller will cut-off the power to allow the electrical components to cool down.
-
Page 16: Battery And Charging Instrudction
BATTERY & CHARGING INTRUCTION Lead-Acid Battery We recommend that you use deep-cycle batteries that are sealed and maintenance free for your power scooter. Both sealed lead-acid (SLA) and gel cell are deep-cycle batteries and are similar in performance. Deep-cycle batteries are specifically designed to provide power, drain down, and then accept a relatively quick recharge. Specification of the battery that we recommend for S34-FD TranSport is Type: Deep –cycle sealed lead-acid or gel cell... - Page 17 Note: Ö Always charge your batteries in well ventilated areas. Ö The charger is intended for indoor use only. Protect from moisture. Ö For maximum performance, it is recommended that you replace both batteries at the same time if the batteries are weak.
-
Page 18: Maintenance & Repair
MAINTENANCE & REPAIR Your power scooter is designed for minimal maintenance. However, like any motorized vehicle it requires routine maintenance. To keep your S34-FD for years of trouble-free operation, we recommend you follow the following maintenance checks as scheduled. DAILY CHECKS 1. - Page 19 Warning! Failure to maintain the brushes could void the power scooter warranty. To inspect or replace the motor brushes: ¾ Unscrew the motor brush caps. ¾ Remove the brushes. ¾ Less than 9 mm Inspect the brushes for wear. ¾ Replace the brushes if necessary.
-
Page 20: Troubleshooting & Fault Repair
TROUBLESHOOTING & FAULT REPAIR P&G S-Drive 45 Amp controller: Your scooter is fitted with S-Drive controller, which continuously monitors the operating conditions of your scooter. If it detects a problem it will indicate with error message by flashing light on the power ON/ OFF light. You must count the number of flashes and see the list below to check the error type according to the number of flashes. -
Page 21: Circuit Diagram
CIRCUIT DIAGRAM... -
Page 22: Bom List Drawing
BOM LIST DRAWING... -
Page 23: Warranty Declaration
WARRANTY DECLARATION Quality/ Warranty Declaration Products are to be fit for purpose and of excellent quality and performance. Warranty as Following: ¾ Frame: Two-year limited warranty ¾ Controllers: One-and-a-half-year limited warranty ¾ Electronic Components and Charger: One-year limited warranty ¾ Warranty Exclusion.
