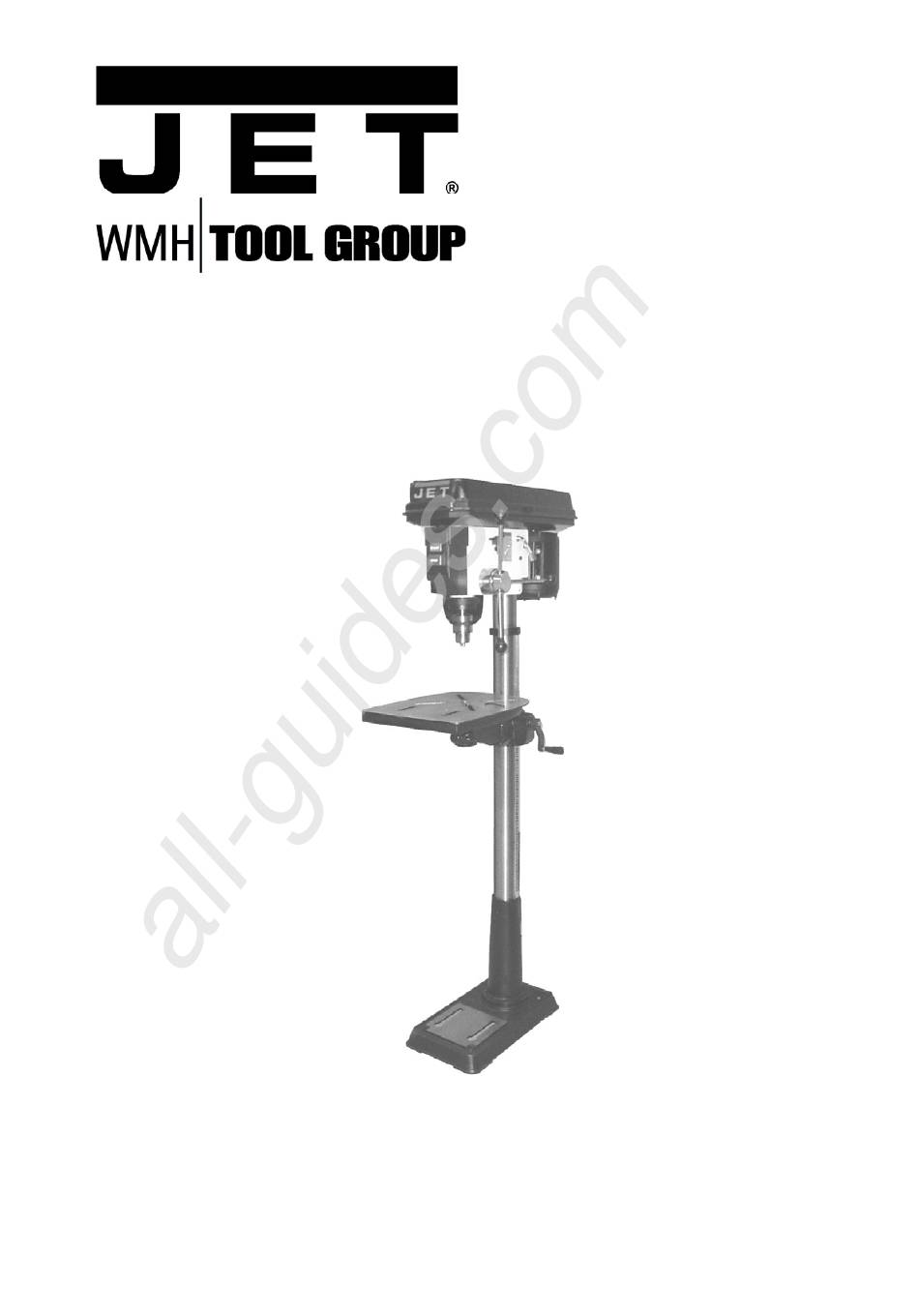

- Page 1 All manuals and user guides at all-guides.com Operating Instructions and Parts Manual Drill Press Model: JDP-15M/MF WMH TOOL GROUP 2420 Vantage Drive Elgin, Illinois 60123 Part No. M-354165 Ph.: 800-274-6848 Revision A 11/03 www.wmhtoolgroup.com Copyright © WMH Tool Group...
-
Page 2: Warranty
Warranty The WMH Tool Group warrants every product it sells. If one of our tools needs service or repair, one of our Authorized Repair Stations located throughout the United States can give you quick service. -
Page 3: Table Of Contents
JDP – 15M/MF – 230V ..........................21 The specifications in this manual are given as general information and are not binding. WMH Tool Group reserves the right to effect, at any time and without prior notice, changes or alterations to parts, fittings,... -
Page 4: Warnings
All manuals and user guides at all-guides.com Warnings 1. Read and understand the entire owners manual before attempting assembly or operation. 2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with all of these warnings may cause serious injury. 3. - Page 5 All manuals and user guides at all-guides.com 20. Keep visitors a safe distance from the work area. Keep children away. 21. Make your workshop child proof with padlocks, master switches or by removing starter keys. 22. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are careless acts that can result in serious injury.
-
Page 6: Specifications
All manuals and user guides at all-guides.com Specifications Model Number: JDP-15M JDP-15MF Stock Number ..........354165..........354166 Swing............. 15” ............ 15" Type .............. Bench ..........Floor Drilling Capacity ..........5/8” ........... 5/8” Chuck Size ............ 5/8” ........... 5/8” Spindle Travel ..........3-1/8” ..........3-1/8” Spindle Distance to Base ...... -
Page 7: Shipping Contents
All manuals and user guides at all-guides.com Shipping Contents Unpack the carton and verify that all parts listed below are included. Other Material Main Parts 1 ea Owner’s Manual 1 ea Head Assembly 1 ea Warranty Registration Card 1 ea Table 1 set Column and Table Bracket Assembly... -
Page 8: Assembly
All manuals and user guides at all-guides.com Referring to Figures 2 and 3: Assembly 4. Remove the wrap and take the rack ring (D) and rack (B) off the column (C). 5. Install the table bracket (A) together with the Read understand assembly... -
Page 9: Column Lock Handle
All manuals and user guides at all-guides.com Head Assembly Referring to Figure 7: 1. With the aid of a second person, carefully lift the head onto the column top and slide it down into position Figure 4 The head assembly is heavy! Use care when lifting onto the column! Column Lock Handle 2. -
Page 10: Chuck And Arbor Removal
All manuals and user guides at all-guides.com 1. Use a pencil to mark the depth the bit will drill into the workpiece. 2. With the drill bit in the chuck, lower downfeed handle to advance bit to your mark (A). 3. -
Page 11: Return Spring Adjustment
All manuals and user guides at all-guides.com 6. Tighten two bar knobs (E, Fig. 11). Belts are properly tensioned when finger and thumb pressure midway between the two pulleys causes approximately ½” deflection. Figure 11 Figure 12 Return Spring Adjustment The return spring is adjusted at the factory and should need... -
Page 12: Work Light
All manuals and user guides at all-guides.com Work Light Install a light bulb, no larger than 60 watts into the socket accessed from beneath the head. The rocker switch controls the light switch (D, Fig. 13). Table Tilt Adjustment The table tilt adjustments are made on the table bracket under the table. -
Page 13: Maintenance
All manuals and user guides at all-guides.com Generally speaking, the smaller the drill bit, the greater the RPM required. Wood requires higher speeds than metal. Metal is usually drilled at slower speeds. In dusty environments, frequently blow out any dust that accumulates inside the motor. Figure 16 Maintenance 230 Volt Operation... -
Page 14: Grounding Instructions
All manuals and user guides at all-guides.com Grounding Instructions Extension Cords Make sure your extension cord is in good condition. When using an extension cord, be This tool must be grounded while in use to sure to use one heavy enough to carry the protect the operator from electric shock. -
Page 15: Troubleshooting
All manuals and user guides at all-guides.com Troubleshooting Trouble Probable Cause Remedy Drill press unplugged from wall, or Check all plug connections. motor. Drill press will not Fuse blown, or circuit breaker tripped. Replace fuse, or reset circuit breaker. start. Cord damaged. - Page 16 All manuals and user guides at all-guides.com Troubleshooting (cont.) Trouble Probable Cause Remedy Bent drill bit. Replace drill bit. Excessive drill bit Worn spindle bearings. Replace spindle bearings. runout, or wobble. Bit, or chuck not properly installed. Reinstall the bit, or chuck properly. Quill returns too slow, Adjust spring tension.
-
Page 17: Exploded View Drawing Jdp-15M/Mf
All manuals and user guides at all-guides.com Exploded View Drawing JDP-15M/MF... -
Page 18: Parts List Jdp-15M/Mf
All manuals and user guides at all-guides.com Parts List JDP-15M/MF Index No. Part No. Description Size 1A .....10600110 ....Base for JDP-15M..................1 1B .....10800101 ....Base for JDP-15MF ................. 1 2A .....JDP15-1002A...Column Holder for JDP-15M..............1 2B .....10600204 ....Column Holder for JDP-15MF..............1 3 ....TS-2279121 .....Hex Socket Set Screw ......... - Page 19 All manuals and user guides at all-guides.com Parts List JDP-15M/MF Index No. Part No. Description Size 59 .....2001ZZ6204.....Ball Bearing....................1 61 .....2001ZZ6203.....Ball Bearing....................1 62 .....TS-2360161 .....Washer..............M16 ......1 63 .....10606301 ....Nut Lock ....................1 64 .....10606401 ....Spindle Nut....................1 65 .....10606505 ....Driving Sleeve............
- Page 20 All manuals and user guides at all-guides.com Parts List JDP-15M/MF Index No. Part No. Description Size 166 ...JDP15-1166 .....Speed Diagram ..................1 169 ...JDP15-1169 .....Trade-Mark Label..................1 170 ...2658MZDU36...Drive Screw............Φ 2.3-5......6 601 ...TS-2245082 .....Cr. Re. Pan Head Screw........M5-8......4 602 ...TS-0733031 .....External Tooth Lock Washer........
-
Page 21: Wiring Diagram
All manuals and user guides at all-guides.com Wiring Diagram JDP – 15M/MF – 115V JDP – 15M/MF – 230V... - Page 22 All manuals and user guides at all-guides.com NOTES...
- Page 23 All manuals and user guides at all-guides.com NOTES...
- Page 24 All manuals and user guides at all-guides.com WMH Tool Group 2420 Vantage Drive Elgin, Illinois 60123 Phone: 800-274-6848 www.wmhtoolgroup.com...
