SpeedBox 3.1 B.Tuning
for Ginat

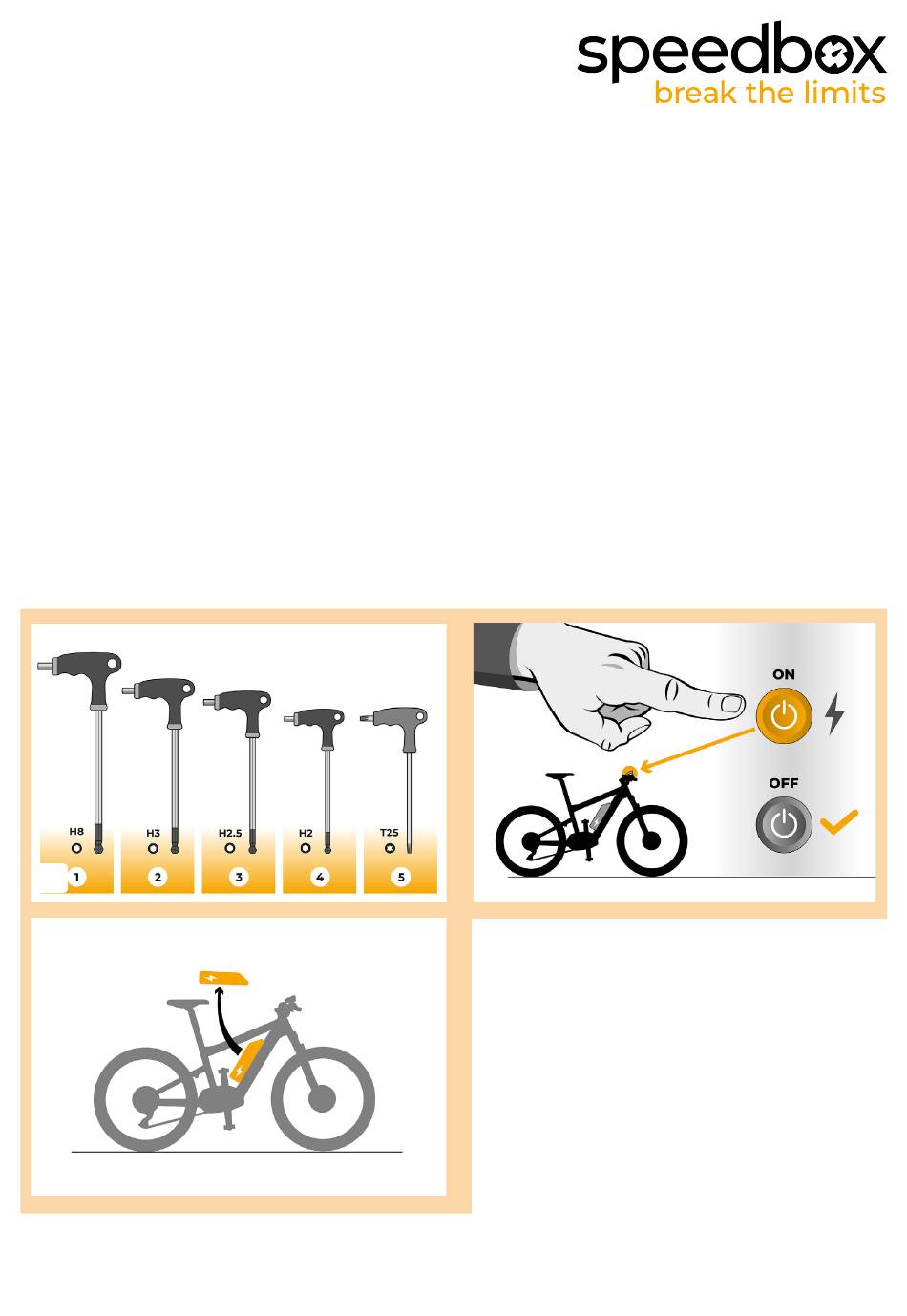

STEP 1: Preparation for installation
A.
Prepare the following tools:
1. Hex Key H8
2. Hex Key H3
3. Hex Key H2.5
4. IHex Key H2
5. T25 Torx screwdriver
B.
Turn off the e-bike.
C.
Remove the battery from the e-bike according to the manufacturer's manual.
A.
C.
B.
1.
