Keytrak INS-831DV-UH-W - Digital IR Colour CCD Camera Manual

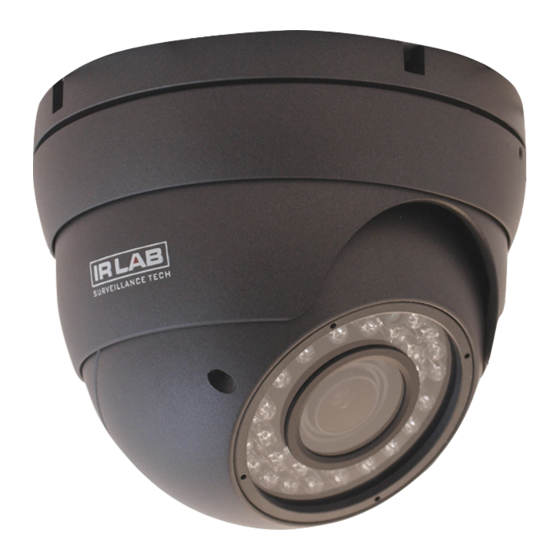

Overview

Overview

Caution for installation

  1. In order to prevent electronic shock, don't loosen any screws or covers.
  2. Do not directly touch the front glass. If necessary, use a soft cloth moistened with alcohol to wipe off the dust.
  3. Avoid places where there are frequent vibrations or shocks.
  4. Don't operate the camera beyond its temperature, power source ratings.
  5. When any abnormalities happen, make sure to unplug the camera and contact your local dealer.

Packing

  1. Camera X1
  2. User Manual X1
  3. Screw X4
  4. Plastic-Conical-Anchor X4
  5. Hexagonal Wrench X1
  6. Screw Driver X1
  7. Mounting drawing paper X1
  8. DC Connector X1
  9. Zoom&Focus Rubber X2

Specification

IP Rating IP65
Type Colour/Monochrome (Removable IR Cut Filter)
Signal System NTSC/PAL
Pick Up Device 1/3" 960H Double Scan CCD
Picture Elements NTSC:1020H×508V PAL:1020H×596V
Resolution 700 TVL
Min Illumination 0Lux(36 Pieces IR LED ON)
Vertical Frequency NTSC:60Hz PAL:50Hz
Horizontal Frequency NTSC:15.734KHz PAL:15.625KHz
Clock Frequency NTSC/PAL:36MHz
Scanning System 2:1 Interlace
S/N Ratio ≥52dB
Electronic Shutter NTSC:1/63-1/10000S PAL:1/53-1/10000S
Lens 2.8-11mm Varifocal IR Lens
White Balance ATW
Back Light Compensation ON
Auto Gain Control ON
IR OPTIMIZER ON
GAMMA 0.45
Video Out-put 1V p-p, 75Ω
Power Supply DC12V ±10%
Current Consumption 500mA(MAX)
IR Effect Distance 15-20m (49.2-65.6ft)(indoor)
Dimension Φ120×100mm(Φ4.72"×3.93" )
Weight 790g (27.86oz)
Storage Temperature -30~+60℃ (-22~+140℉)
Operating Temperature -30~+40℃ (-22~+104℉)

Remark: Non-regulative adaptor may cause camera damaged.

Major control key and function

Major control key and function

How to Setup Functions

  1. Press " " to display OSD menu or confirm
  2. Press "" for screen choice
  3. Press "" for screen choice
  4. Press " " for screen choice
  5. Press " " for screen choice

Press MENU button first, then there is 10main items on the screen, and the category which is selected will be in flash.

Adjustable parameters by OSD menu Packing

OSD Menu Item Adjustable Parameters
LANGUAGE ENGLISH/JAPANSE/ESPANOL/PYCCKNN/DEUTSCH/ FRANCAIS/中文
LENS MANUAL / AUTO(TYPE/MODE/SPEED)
SHUTTER/AGC AUTO(HIGH LUMINANCE / MODE/BRIGHTNESS/ LOW LUMINANCE / MODE/BRIGHTNESS) MANUAL(MODE / SHUTTER / AGC)
WHITE BAL ATW / PUSH / USER1 / USER2 / ANTI CR / PUSH LOCK / MANUAL
PICT ADJUST MIRROR / CONTRACT / SHARPNESS
NR MID/MIDHIGH/HIGH/LOW/MIDLOW/OFF
DAY NIGHT AUTO /COLOR
BACK LIGHT OFF / BLC / HLC
WDR NORMAL / LIGHT/FULL (MID/MIDHIGH/HIGH/LOW/MIDLOW
PRIVACY OFF / ON(AREA SEL/COLOUR / TRANSP / MOSIAC)
MOTION DET OFF / ON(DETECT SENSE / BLOCK DISP / DETECT AREA/MONITOR AREA / AREA SELECT /TOP / BOTTOM / LEFT / RIGHT)
CAMERA ID OFF / ON(OPENS VIRTUAL KEYBOARD)
CAMERA RESET
