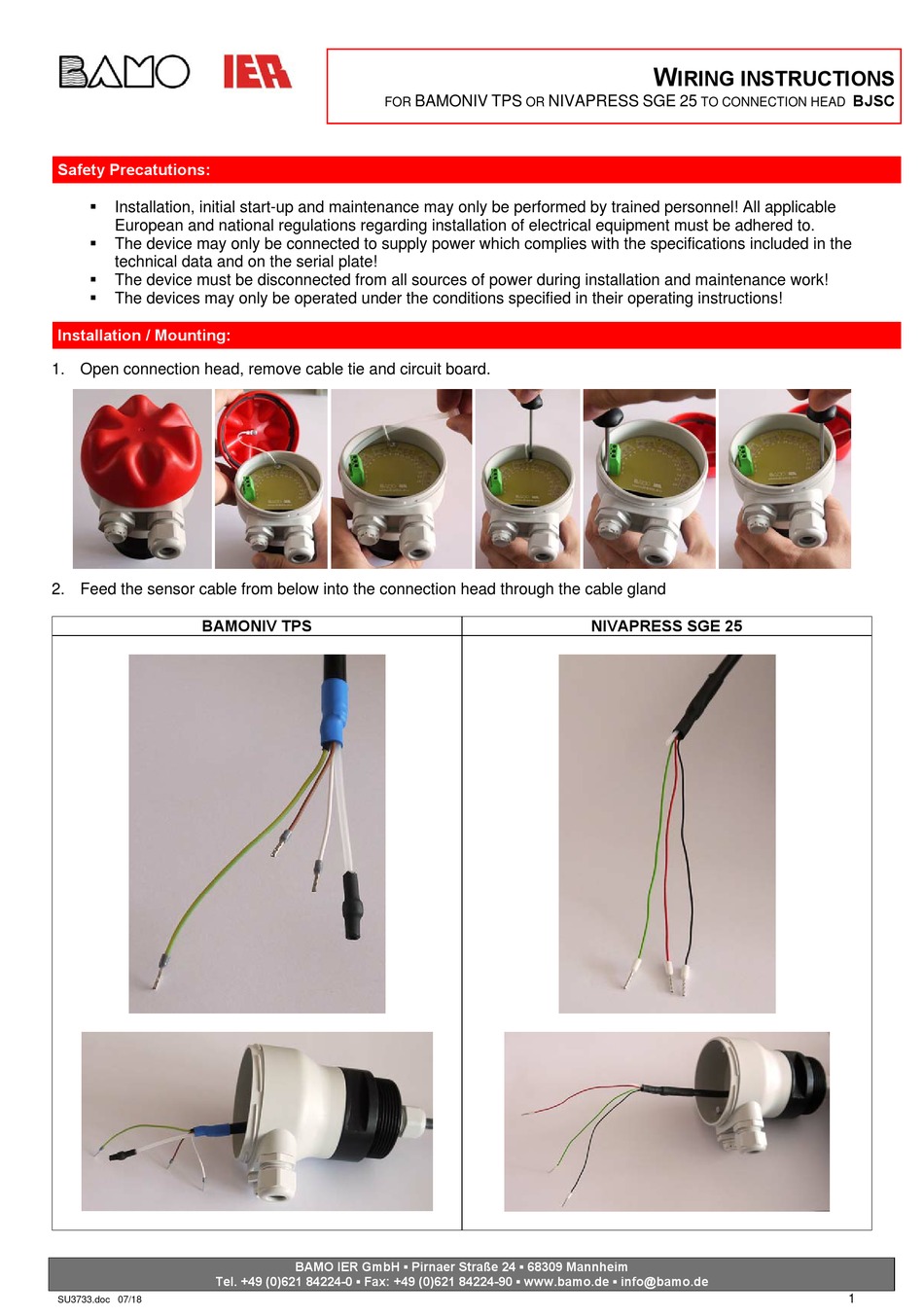

BAMO IER BAMONIV TPS Wiring Instructions

Safety Precatutions:

Installation, initial start-up and maintenance may only be performed by trained personnel! All applicable
European and national regulations regarding installation of electrical equipment must be adhered to.

The device may only be connected to supply power which complies with the specifications included in the
technical data and on the serial plate!

The device must be disconnected from all sources of power during installation and maintenance work!

The devices may only be operated under the conditions specified in their operating instructions!
Installation / Mounting:
1. Open connection head, remove cable tie and circuit board.
2. Feed the sensor cable from below into the connection head through the cable gland
BAMONIV TPS
Tel. +49 (0)621 84224-0 ▪ Fax: +49 (0)621 84224-90 ▪ www.bamo.de ▪ info@bamo.de
SU3733.doc 07/18
BAMONIV TPS
FOR
BAMO IER GmbH ▪ Pirnaer Straße 24 ▪ 68309 Mannheim
W
IRING INSTRUCTIONS
NIVAPRESS SGE 25
OR
NIVAPRESS SGE 25
BJSC
TO CONNECTION HEAD
1
