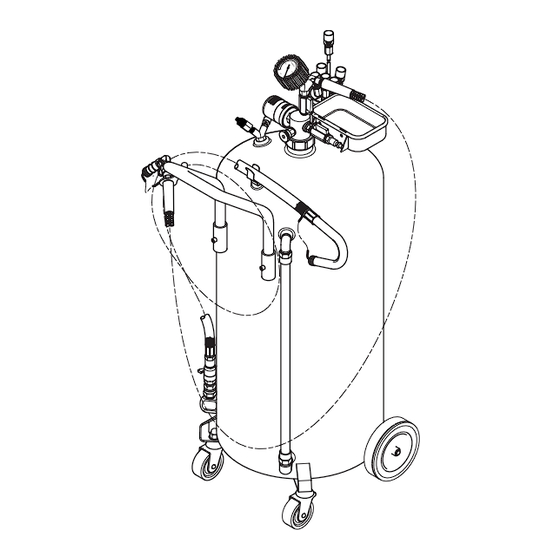

Portable oil extractor, self-evacuating

Advertisement

Portable oil extractor,
self-evacuating
Model 3637
Date of issue
May 2013
Form number
404487
Section
B4
Page
44A
d a n g e r
Read manual prior to installation or use
of this product. Keep manual nearby for
future reference. Failure to follow
instructions and safety precautions
may result in death or serious injury.
Assembly and operations guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKF 3637 and is the answer not in the manual?

Questions and answers

scott
January 16, 2025

the vaccum builds in the tank but dosen,t work in the hose extractor tube . it starts to work then shuts down with vaccum still in the main tank

1 comments:
Mr. Anderson
February 3, 2025

A possible cause for the vacuum to build in the tank but not work in the hose extractor tube could be a blockage or issue with the suction hose connector (part no. 16) or the ball valve (part no. 13). Ensure the hose and valve are clear and working properly. Additionally, verify that the connections and seals are intact and correctly installed.

This answer is automatically generated

Summary of Contents for Lincoln SKF 3637

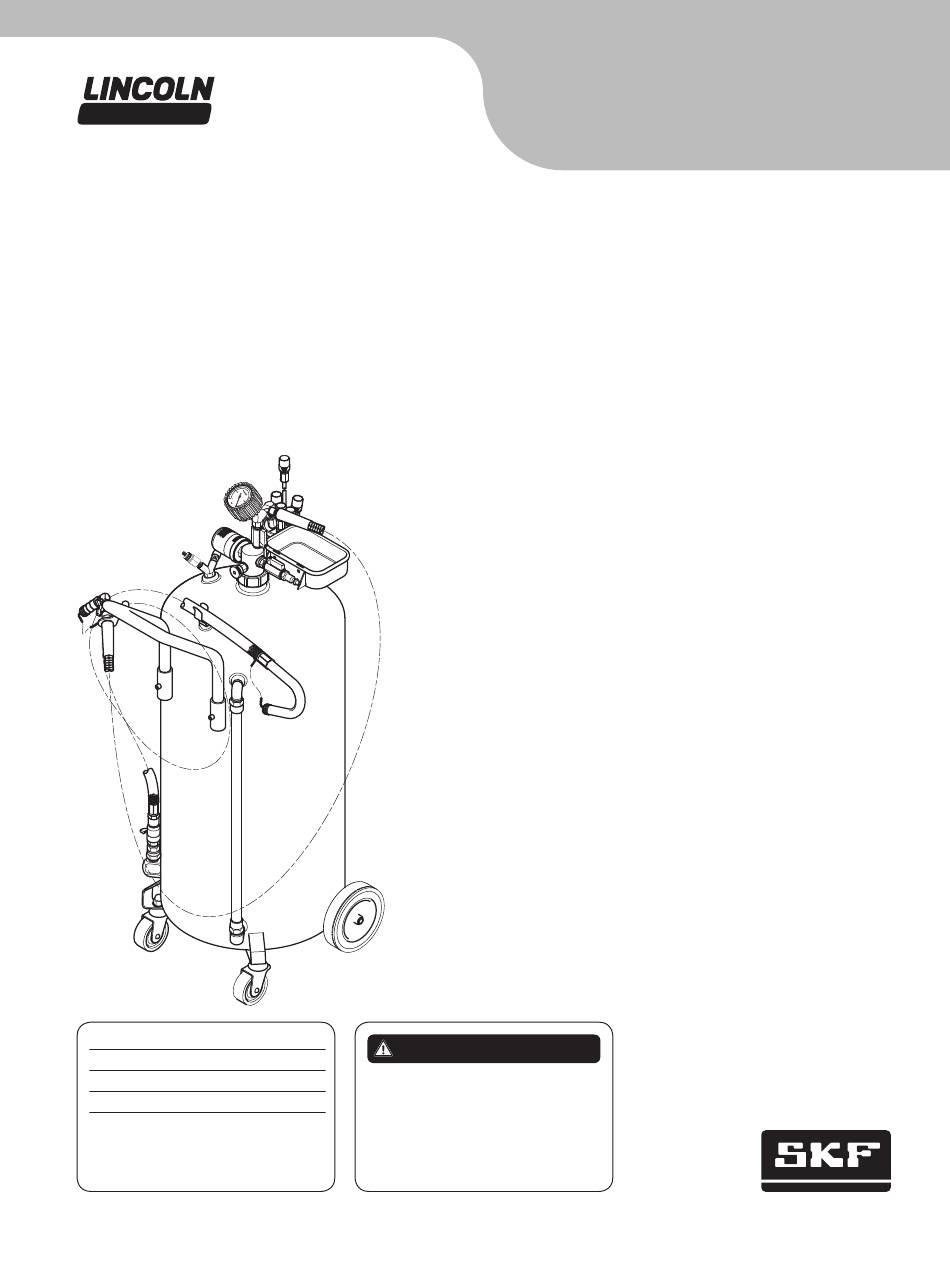

  • Page 1 Assembly and operations guide Portable oil extractor, self-evacuating Model 3637 Date of issue May 2013 d a n g e r Form number 404487 Read manual prior to installation or use Section of this product. Keep manual nearby for Page future reference.
  • Page 2: Table Of Contents

    Lincoln industrial standard warranty . . . . . . . . . . . . . . . . . .
  • Page 3: Safety

    Safety Explanation of signal words for safety Read and carefully observe this operating instruction before operating or troubleshooting the system . The system must be installed, maintained and repaired exclusively by persons familiar with the instructions . This is the safety alert symbol . It is used Operate the extractor only after safety to alert you to potential physical injury instructions and this guide have been read...
  • Page 4: Overview

    Overview Table 1 Specifications This service page details the procedure that Tank size Holding Suction rate Pressure Air pressure Maximum pressure must be followed while operating the capacity relief valve for vacuum for emptying portable oil extractor system . 24 U .S . gal . 16 U .S .
  • Page 5: Operation

    Operation Emptying tank notice 1 Remove the plug (41) from the nozzle It is not necessary to disconnect on the drain hose J-hook (40) . extractor from air supply . Charging the tank (vacuum) 2 Position the drain hose J-hook nozzle 1 Release pressure from the tank by turning (40) into an appropriate collection the valve (29) counterclockwise .
  • Page 6 Table 4 Parts list Item no . Description Part no . Item no . Description Part no . Clip 278356 Nozzle None Screw 278356 Ball valve 278342 Valve core 278569 Air connector None O-ring 0 .37 x 0 .07 in . (9,5 mm x 2,0 mm) None Muffler 278344...
  • Page 7 Fig. IPB 1...
  • Page 8: Lincoln Industrial Standard Warranty

    314-679-4200 required. (international number 01-314-679-4200) In no event shall Lincoln be liable for inci- or you may also use our website dental or consequential damages . Lincoln’s www .lincolnindustrial .com liability for any claim for loss or damages...
  • Page 9 This page intentionally left blank .
  • Page 10 This page intentionally left blank .
  • Page 11 This page intentionally left blank .
  • Page 12 A global presence provides SKF customers uniform quality standards and worldwide product availability. ® SKF is a registered trademark of the SKF Group. ® Lincoln is a registered trademark of Lincoln Industrial Corp. © SKF Group 2013 The contents of this publication are the copyright of the publisher and may not be reproduced (even extracts) unless prior written per- mission is granted.
