Summary of Contents for ATD Tools 6559

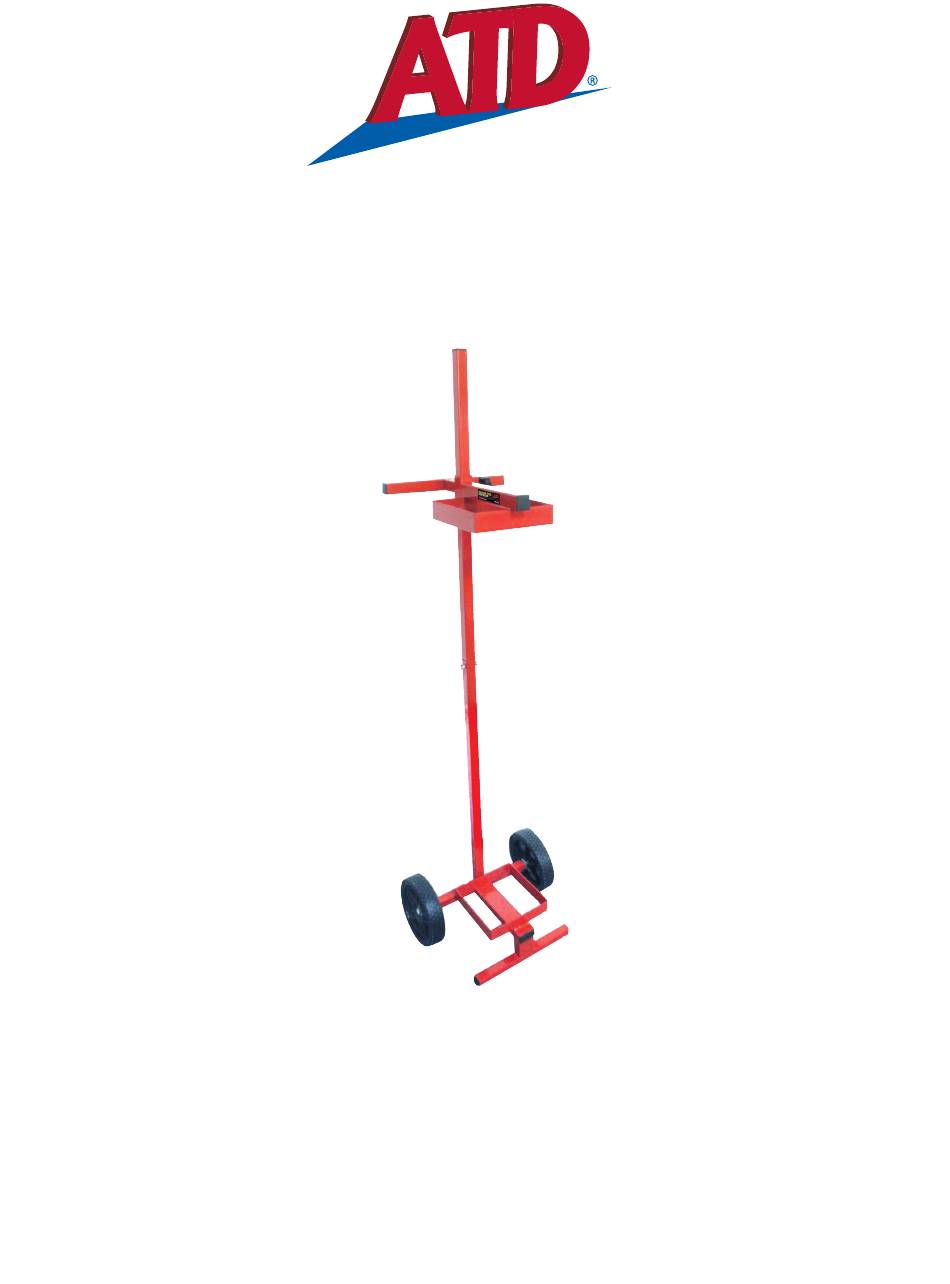

- Page 1 ATD-6559 Masking Film Dispenser Owner’s Manual Features: • Holds box firmly as you pull sheeting • Keep sheeting clean and dry • 8” rubber wheels allow easy movement in work area • Stands upright for convenient storage • Fits box lengths from 14” – 55”...
- Page 2 ATD-6559 Assembly Instructions 1. Ensure that you have all the parts upon opening your unit. 2. Attach the Wheels to the Lower Film Holder (Base) using the M10 Bolts Listed in the order as shown above: (2) Wheels (1) Hardware set containing:...
- Page 3 ATD-6559 ITEM# ORDERING PART# PART DESCRIPTION PRT6559-01 UPPER FILM HOLDER PRT6559-HK KNOB PRT6559-03 UPPER VERTICAL TUBE PRT6559-HK LOCK NUT (M8) PRT6559-HK BOLT (M8) PRT6559-HK WASHER (M8) PRT6559-07 LOWER VERTICAL TUBE PRT6559-HK BOLT (M10) PRT6559-09 WHEEL PRT6559-10 LOWER FILM HOLDER (BASE) *PRT6559-HK includes items 2, 4, 5, 6 and 8) Learn more about paint and body repair on our website.
