Summary of Contents for ULTIMATRON FRANCE POWERCUBE ULT-1500

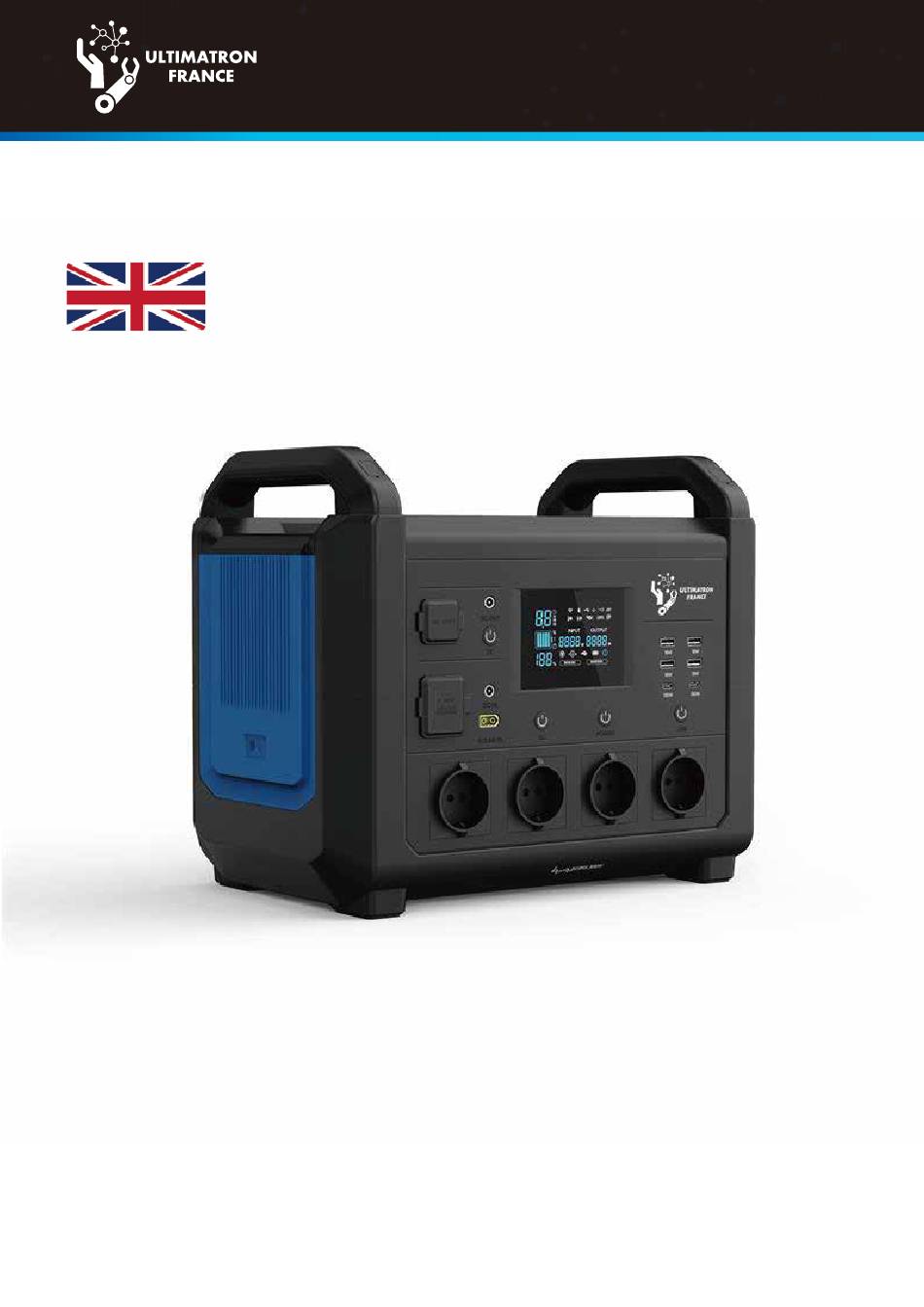

- Page 1 USER MANUAL POWERCUBE ULT-1500...
-
Page 2: Package Contents
CAUTION Thank you for purchasing our energy storage series products. Please read the user’s manual carefully before using the product and keep it well. This manual helps you to operate this equipment correctly. But this is not an introduction to hardware and software configura- tion. -
Page 3: Specification
INTRODUCTION AC Input Port LCD Display Main Power Button DC Output Port DC ON/OFF Switch Solar Input Port USB ON/OFF Switch Ground Connection Car Socket AC ON/OFF Switch QC3.0 USB-A Ports x4 DC Input Port AC Output Ports PD100W USB-C Ports x2 SPECIFICATION 16kg N.W net weight... -
Page 4: Lcd Display
LCD DISPLAY Battery failure/Low Battery Power Level % voltage indicate Battery high/low Battery Information Battery Power Level temperature indication indication Battery lock protection Input power Input indication USB-C Output Icon AC Output Icon DC/ Car Outlet Output Output power Output indication USB-A Output Icon Minutes Remaining discharge... - Page 5 CAUTION If there is no operation for 3 minutes when the product is working, the screen automatically turn off and the power indicator enter into " breathing light”mode. Click the On/off button to light on the screen, the power indicator enter into the“on” mode. When switch on the porta- ble power station with all the output port swith off and without charge.
- Page 6 HOW TO USE USB OUTPUT 1. Long press the main power button to turn on.The main power indicator and the screen lights up, enters the standby state. 2. Press the USB on/off switch to turn on the USB function. 3. Plug in the USB devices and start to use. HOW TO USE DC OUTPUT 1.
-
Page 7: How To Charge
HOW TO CHARGE > Please charge the ULT-1500 before using. > Please fully charge the battery before long storage. Please check the ULT-1500 remaining power level every 3 months and full recharge it again. > There are 3 input ports on the Portable Power Station: 1* AC Input Port, 1* solar panel input port and 1* DC5521 port. - Page 8 SOLAR PANEL SERIES/PARALLEL CHARGING Portable Power Station support Solar Panel charging Max 300W. You can purchase solar panels and dedicated cable accessories that match the Portable Power Station to achieve a high-power solar fast charging experience. CAUTION The maximum voltage of solar panels that Portable Power Station can support is 30V, and the maximum current is 10A.
-
Page 9: Warranty
2. Please stay away from TV, radio and other equipment to avoid interference when charging. 3. Please disconnect the power cord and keep it if not to use this device for long time. WARRANTY The Ultimatron PowerCube ULT-1500 provides an 24-months warranty... - Page 10 CAUTION 1. Do Not store this device together with coins, jewelry, keys and other metal objects to avoid short circuit. 2. Keep away from heat, don't throw it in fire water or other liquids, high temperature, including direct sunlight. 3. This equipment is not suitable for people with reduced physical, sensory or mental abilities or lack of experience and knowledge (including children), unless the person responsible for their safety supervises or guides their use of the equipment.
