Summary of Contents for ELTA music SOLAR 50

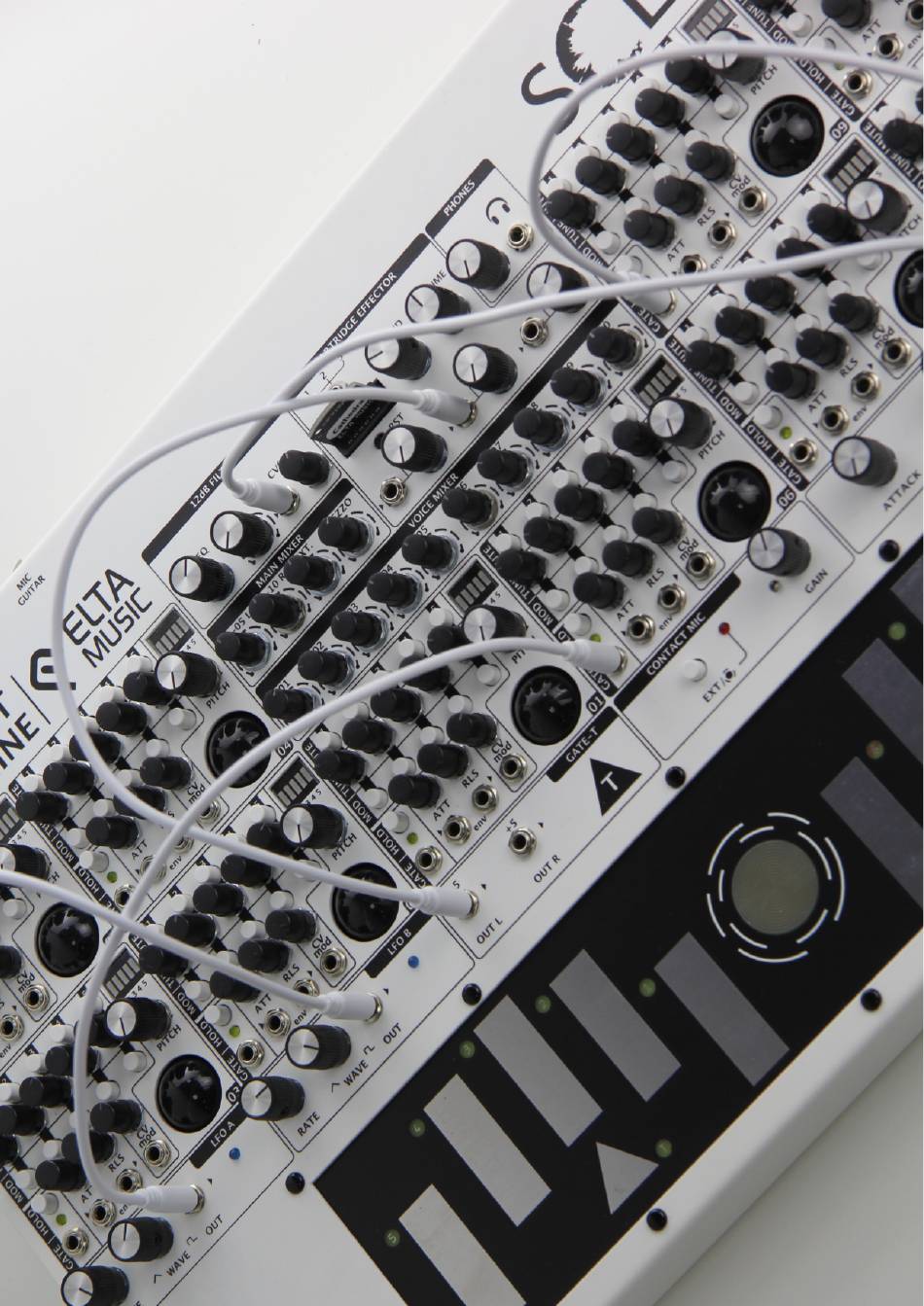

- Page 1 USER MANUAL...
- Page 2 Variations of sound you can create with «SOLAR 50» are really great. Solar 50 is inspired by early electronic musical developments of the last century, particularly Leo Theremin's instrument called “Harmonium” and other weird Soviet synths like ANS.
-
Page 3: Block Diagram
BLOCK DIAGRAM... - Page 4 VOICE DIAGRAM...
- Page 5 VOICE Each voice consists of 5 simple sawtooth generators that do not have a logarithmic or linear voltage control like standard VCOs. There is only a pitch knob - TUNE. 1st generator has a tuning knob from 30 to 100 Hz; 2nd generator - from 80 to 245 Hz; 3rd - from 140 to 435 Hz;...
- Page 6 VOICE photo-sensitive detector GATE external +5v HOLD gate on attack control release control MUTE on/off osc TUNE frequency osc PITCH transpose all osс MOD on/off modulation osc CV mod external CV with amount control 0...+10V ENV in (VCA in) external CV sources 0...+10V ENV out envelope out 0...+6V 12345 indication osc status...
- Page 7 CONTACT MIC/ENVELOPE FOLLOWER Built-in (internal) contact microphone (PIEZZO) soldered right under the sensor keyboard, turning the case of SOLAR 50 into a microphone. A large palette of organic, physical sounds can be produced by scratching, tapping, and more generally by collecting any acoustic waves using the built-in effector with the cartridges.
- Page 8 MIXING / FILTER SOLAR 50 consists of 10 voices, each voice has its own volume. All voices are divided into groups of 5 units for the right side and for the left side and mixed by the MAIN MIXER where the Knob 01- 05 sets the volume of 5 left voices and the knob 06-10 sets the volume of 5 right voices.
- Page 9 FX cv-parameters Audio signals enter the effector (with cartridges) which is controlled by CV as well - the same circuit is used in ELTA music CONSOLE pedal. Here, the BLEND knob sets the effect level. The VOLUME knob sets the overall volume WET OUT. X, Y, Z parameters controlled by CV 0...+10V.
- Page 10 +5V. You can connect them to modulate voices or to control the effector parameters, creating interesting sounds. On the board of SOLAR 50 there are 2 independent LFOʼs with a waveform adjustment from square to triangle and the knob set in the middle position adjusts the mix of both triangle and square waves.
-
Page 11: Specification
500 mm length / 300 mm width / 26 mm height Weight 5 kg The kit includes SOLAR 50, power supply 24vdc, 5 minijack patch cord, 3 cartridges, user manual. Solar 50 team Idea, development, engineering and production: Arseny Tokarev... - Page 12 Designed by Tokarev Arseny Made in Moscow, 2020...
