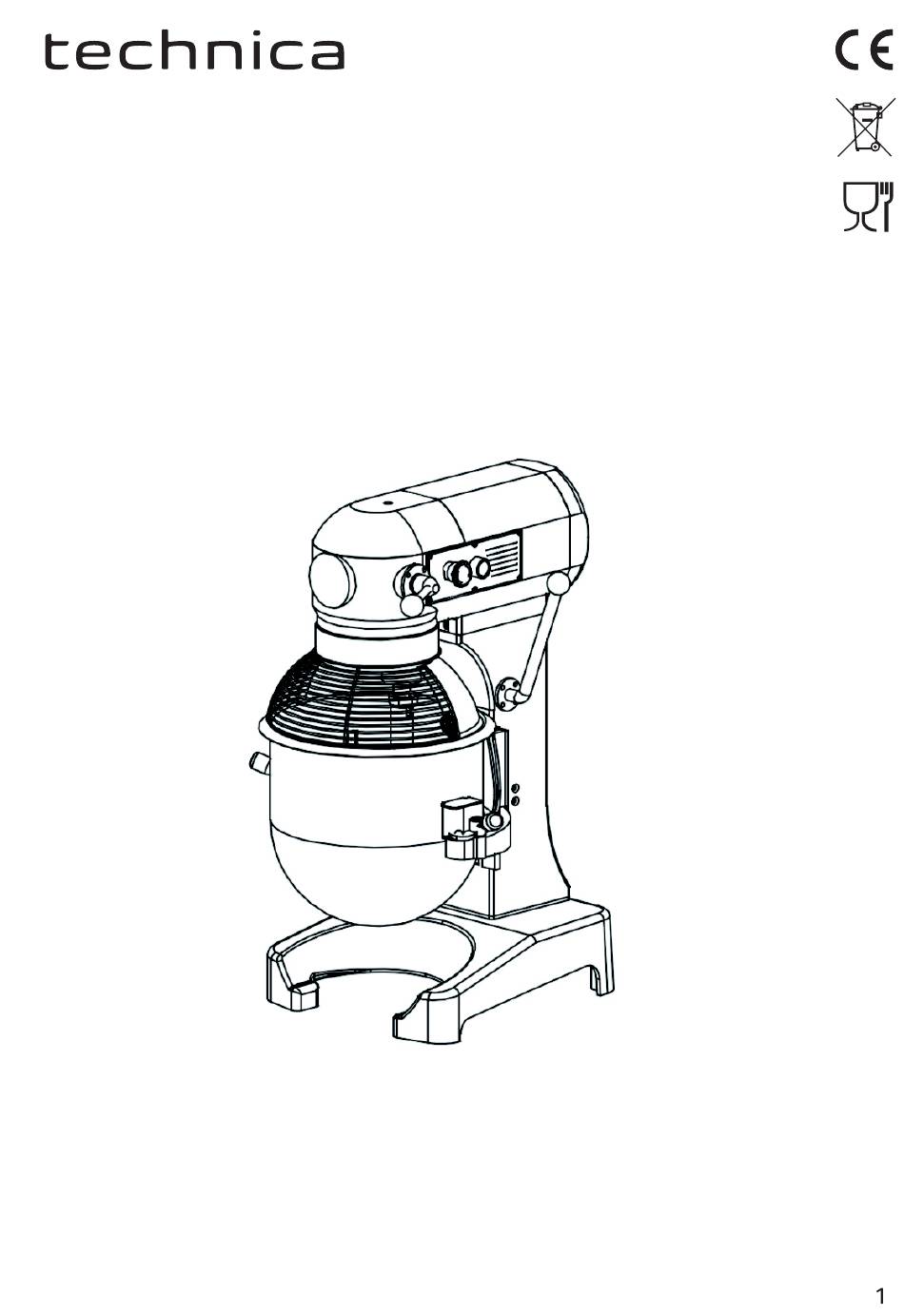

- Page 1 User manual Food Mixer Model: 242010, 242020, 242030 1.00 Please read the instruction thoroughly before using the machine for safety & keep it for future reference Translation of the original instructions...
-
Page 3: Table Of Contents
Content 1. Introduction 2 Cleaning & Operation 3. Storage & maintenance 4. Exploded view 5. EC Declaration of Conformity... -
Page 4: Introduction
1. Product introduction 1. Brief-introduction of food mixer (planetary mixer) Our multi-functional planetary includes 1pc of egg beater, 1pc of flat beater & 1pc of dough hook, which are very easy to operate & clean by disassembling. It is intended for commercially mixing, stirring & kneading food with stable function &... -
Page 5: Cleaning & Operation
the process of mixing food. 6 When the machine is in no-load testing, customer can change the gear but without stopping it. 2. Cleaning & Operation 1. Cleaning 1 To ensure hygiene, before daily use, customer should please clean all parts of the planetary mixer. - Page 6 Mixing Transmission Mixing Speed Usage Attachment Base (R.P.M.) Gear 3: Using high speed to mix 404RPM egg, milk cream etc., but (high speed) each continuous working time is not more than 20min. Gear 2: Using middle speed to 225RPM mix the stuff, paste etc., (middle but each continuous speed)
-
Page 7: Storage & Maintenance
3. Storage & Maintenance 1. Storage 1. Please store the machine into the ventilated, clean & dry area free from the moisture & direct sunlight. 2. Maintenance 1. Please check the lubricating grease inside the transmission & refill it if necessary. -
Page 8: Exploded View
Replace the center axis O oil seal. oil seal is bad. 5. Exploded View 1. Parameter Model Vol- Bowl Rotating Speed (R.P.M.) Rated Rated Size Voltage Power Weight 242010 Ф240*248mm 230V/50Hz/1PH 400W 70.2Kgs 242020 20L Ф320*306mm 230V/50Hz/1PH 750W 83.4Kgs 242030 30L Ф370*328mm 230V/50HZ/1PH 1100W 130Kgs... - Page 9 242010 Dimension Drawing (mm) 242020 Dimension Drawing (mm) 242030 Dimension Drawing (mm)
- Page 10 2. Circuit Diagram Circuit diagram of single phase planetary mixer 242010, 242020, 242030 Machine controller V0.4G Fuse 250V/0.3A Temperature controller Relay3 Relay1 Relay2 Input Output Primary Wiring Subsidiary Capacitor Wiring Overload Blue Brown protector...
- Page 11 3. Exploded View No. Name Note Front view of planetary mixer Stuff tray available 242010, 242020 Meat Grinder 1SET Head available Protect Cover 1SET Bowl Bowl Lock 2SETS Lock-screw available Top Cover Transmission Handle Name Plate Body Rear Cover Up and Down...
- Page 12 Gear box body of planetary No. Name mixer 242010, 242020 Sunk screw Top cover Cup head screw 3PCS Center hole piece Bearing Cup head screw 4PCS Double orifice piece Bearing 2PCS Inner hexagon screw 4PCS Spring washer 4PCS Flat gasket...
- Page 13 Center shaft assembly No. Name of planetary mixer 242010, 242020 Hex nut 2PCS Gear assembly of planetary mixer Spring washer 2PCS 242010, 242020 Flat gasket 2PCS Bearing 7PCS Clutch Cover Spring lamination 4PCS Steel column 4PCS Clutch Base 2PCS Gear...
- Page 14 Worm gear assembly of planetary No. Name mixer 242010, 242020 Hex nut Spring Washer Flat gasket Bearing 2PCS Gear shaft Flat key 2PCS High-sped gear Washer on shaft Low speed gear Washer on shaft Gear shaft gasket gar shaft wheel shaft...
- Page 15 Motor assembly of planetary mixer No. Name 242010, 242020 Hex nut Spring Washer Flat gasket Bearing 2PCS Worm shaft Flat key Worm gear Washer on shaft Gear shaft gasket Note: Before repairing & assembling the machine, please check whether the #8 washer on shaft can be use, if it is out of shape or becomes bigger, please replace it.
- Page 16 Transmission fork assembly of plan- No. Name etary mixer 242010, 242020 Washer on shaft Worm Oil seal Bearing 2PCS Motor rotor Motor stator 14 15 Centrifugal switch 12 13 11 5 Screw 2PCS 9 10 Flat gasket 2PCS Centrifugal switch plate...
- Page 17 Base, pedestal, bowl Up & down system No. Name of planetary mixer 242010, 242020 Hex nut Spring washer Flat gasket Fork shaft Fork screw 13 14 15 Fork spring Fork axis Fork Taper screw Offset cover Transmission shaft O oil seal...
- Page 18 Planetary base, mixing shaft system of No. Name planetary mixer 242010, 242020 2PCS Pedestal Electric box 26 13 Split pin Washer on shaft Brace Frame Washer 4PCS Screw 4PCS 15 27 Up and down handle Handle ball Position switch Up and down switch...
- Page 19 Bowl support system of planetary No. Name mixer 242010, 242020 Moved protect cover Internal gear Screw 6PCS Protective net fixed part Sunk screw Screw Spring washer Washer Planetary gear Bear Planetary base Bearing Oil seal Mixing shaft Washer Spring washer Note: When the machine is working, if there’s noise in the #11 planetary base, maybe...
- Page 20 Standard Parts planetary mixer No. Name 242010, 242020, 242030 Bowl locked handle cover 2PCS Bowl locked handle screw 2PCS Washer 2PCS Bowl locked handle Spring 2PCS Bowl locked handle (R &L) 2PCS B o w l l o c k e d h a n d l e...
- Page 21 Exploded view of planetary mixer 242030 Egg Beater Flat Beater Positioning pin Mixing bowl Dough hook Notes: 1. When installing the dough hook, egg beater & flat beater to the mixing shaft, please hold & push up the shaft, then rotate clockwise & pull down. If wanting to take out these mixing parts, please hold &...
- Page 23 No. Name Note No. Name Turning a stirring shaft Lift handle (full set) assembly Screw 3PCS Electric box (full set) Fixed protect cover Hex nut 2PCS Internal Gear Lid switch frame Moved protect cover Power core Grinding head assembly Not available Start switch Bowl Emergency switch...
-
Page 24: Ec Declaration Of Conformity
EC Declaration of Conformity In accordance with the Machinery Directive 2006/42/EC, annex II, no. 1 A Manufacturer: TECHNICA GROUP spółka z ograniczoną odpowiedzialnością Address: ul. Miłosna 2, 43-430 Ochaby Małe Machinery name: Planetary mixer Type: 242010, 242020, 242030 Complies with all the following European Directives: Directive 2006/42/EC of the European Parliament and of the Council of 17 May 2006 on machinery, and amending Directive 95/16/EC,(OJ L 157, 9.6.2006, p. - Page 25 Name and address of the person authorized to compile the technical file, who must be established in the Community: Ruben Bujok ul. Miłosna 2, 43-430 Ochaby Małe Poland...
- Page 26 TECHNICA GROUP spółka z ograniczoną odpowiedzialnością ul. Miłosna 2, 43-430 Ochaby Małe, tel.: +48 333 00 11 00, www.sklep.technica.pl...
