OWNER'S MANUAL
AIR CONDITIONER
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
TYPE : WINDOW
EN ENGLISH
LW8016ER
LW8017ERSM
*MFL70960608*
MFL70960608
Rev.07_100820
Copyright © 2017 - 2020 LG Electronics Inc. All Rights Reserved.
www.lg.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LG LW8016ER.AC1AUSB
Summary of Contents for LG LW8016ER.AC1AUSB

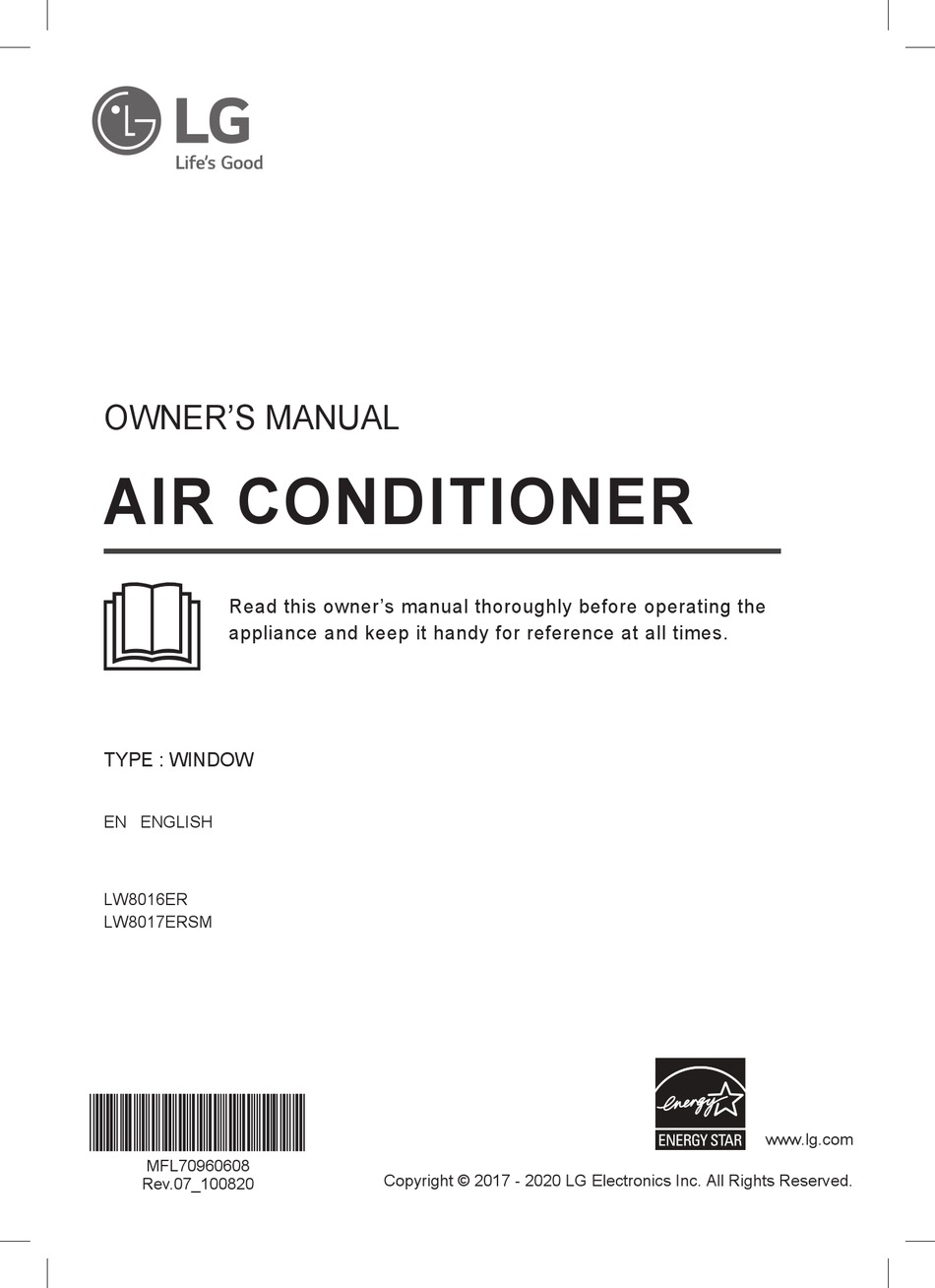

- Page 1 Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. TYPE : WINDOW EN ENGLISH LW8016ER LW8017ERSM *MFL70960608* www.lg.com MFL70960608 Copyright © 2017 - 2020 LG Electronics Inc. All Rights Reserved. Rev.07_100820...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS 3 SAFETY INSTRUCTIONS 17 SMART FUNCTIONS IMPORTANT SAFETY INSTRUCTIONS LG ThinQ Application 8 PRODUCT OVERVIEW 20 MAINTENANCE Exterior Parts Air Filter Interior Parts 21 TROUBLESHOOTING 9 INSTALLATION Before Calling for Service Normal Sounds You May Hear... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS 3 EN SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This is the safety alert symbol. - Page 4 ● If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact an LG Electronics Customer Information Center. ● Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.
- Page 5 ● If water enters the product, turn off the power at the main circuit, then unplug the product and call for service. ● If the product has been submerged, contact an LG Electronics Customer Information Center for instructions before resuming use.
- Page 6 SAFETY INSTRUCTIONS CAUTION To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: INSTALLATION ● Take care when installing the product that exhaust or condensation does not damage nearby property.
- Page 7 SAFETY INSTRUCTIONS 7 EN REFRIGERANT (FOR R32 ONLY) WARNING ● Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. ● The appliance shall be stored in a room without continuously operating ignition sources (for CAUTION associated with older units.
-
Page 8: Product Overview
PRODUCT OVERVIEW PRODUCT OVERVIEW Exterior Parts Interior Parts Control Panel Evaporator Remote Control Air Guide Air Filter Shround Compressor Condenser Front Grille Base Pan Air Outlet Power Cord Cabinet... -
Page 9: Installation
INSTALLATION INSTALLATION WARNING Electrical Data ● This appliance should be installed in Power cord may include a current interrupter accordance with the National Electrical device. TEST and RESET buttons are provided Code. on the plug case. The device should be tested on ●... -
Page 10: Parts Included
INSTALLATION Parts Included (Appearance May Vary) Heatproof foam (2) (Adhesive backed) Foam-PE (2) (Adhesive backed) Foam strip Right curtain (Non-adhesive) panel L bracket (3) Left curtain panel Support bracket Type 'A' Screws Type 'B' Screws (11) Tools Needed Phillips-head Adjustable wrench Level Gloves screwdriver... -
Page 11: How To Install The Unit
INSTALLATION 11 EN How to Install the Unit NOTE ● All supporting parts should be secured to firm To prevent vibration and noise, make sure wood, masonry, vinyl, fiberglass, or metal. the unit is installed securely and firmly. ● This product is a window air conditioner. Install the unit out of direct sunlight. -
Page 12: Preparation Of Chassis
INSTALLATION Preparation of Chassis Install the L bracket behind the inner window sill as shown. Insert the top and bottom rails of the Use the 2 type A screws provided. curtain panels into the upper and lower panel guides. Fasten the curtain panels to the unit with 8 Inner Sill Screws type A screws. - Page 13 INSTALLATION 13 EN Extend the guide panels to fill the window Remove the screw from the bottom right opening and use 4 type B screws to secure of the cabinet. Attach the support bracket them to the window. using the screw you just removed. Secure the support bracket to the inner window sill using a type B screw.
-
Page 14: Operation
OPERATION OPERATION Control Panel and Remote Control Remote Control NOTE ● The feature may be changed according to the type of model. Power Energy Saver - In this mode the compressor and fan turn off when the set Press to turn the air conditioner ON or OFF. temperature is achieved. -
Page 15: Wireless Remote Control
OPERATION 15 EN Wireless Remote Control Clean Filter The Clean Filter LED lights up to notify you Inserting Battery Temp together on the control panel to turn off the Push out the cover on the back of the Clean Filter light. remote control with your thumb. -
Page 16: Ventilation
OPERATION Ventilation Additional Features Push the ventilation lever in to the closed position Slinger Fan to maintain the best cooling performance. Pull the ventilation lever out to open the vent and This air conditioner is equipped with a slinger draw fresh air into the room. fan. -
Page 17: Smart Functions
Smart Diagnosis manual. If you experience a problem while using the • LG ThinQ is not responsible for any network appliance,this smart diagnosis feature will help connection problems or any faults, you diagnose the problem. - Page 18 Google Play Store or Apple App Store on a equipped appliance, it can transmit troubleshooting smartphone. Follow instructions to download data to a smartphone using the LG ThinQ and install the application. application. Launch the LG ThinQ application and select ●...
- Page 19 SMART FUNCTIONS 19 EN FCC Notice FCC RF Radiation Exposure Statement This following notice cover the transmitter This equipment complies with FCC radiation module contained in this product. exposure limits set forth for an uncontrolled This equipment has been tested and found environment.
-
Page 20: Maintenance
20 MAINTENANCE MAINTENANCE Cleaning the Air Conditioner ● Wipe the front grille and inlet grille with a cloth dampened in a mild detergent solution. WARNING ● Wash the cabinet with mild soap or detergent and lukewarm water, then polish using liquid Before cleaning or performing maintenance, appliance wax. -
Page 21: Troubleshooting
TROUBLESHOOTING 21 EN TROUBLESHOOTING Before Calling for Service The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service. - Page 22 TROUBLESHOOTING Problem Possible Cause Solutions Make sure the air conditioner plug The air conditioner is unplugged. is pushed completely into the outlet. Check the house fuse/circuit The fuse is blown/circuit breaker breaker box and replace the fuse or is tripped. reset the breaker.
- Page 23 Set temperature too low. Increase set temperature. Can't connect the Air conditioner is turned off. Turn the air conditioner on. LG ThinQ App. to the air conditioner. Wireless router is turned off. Turn the router on. Move the router closer to the air...
- Page 24 TROUBLESHOOTING Wi-Fi Problem Possible Cause Solutions Delete your home Wi-Fi network The password for the Wi-Fi and begin the registration process network was entered incorrectly. again. Turn off the Mobile data on your Mobile data for your smartphone smartphone before registering the is turned on.
-
Page 25: Warranty
If during in-home service repair cannot be completed, it may be necessary to remove, repair and return the product. If in-home service is unavailable, LG may elect, at our option, to provide for transportation of our choice to and from a LG authorized service center. - Page 26 HOW TO OBTAIN WARRANTY SERVICE & ADDITIONAL INFORMATION: Call 1-800-243-0000 or visit our website at www.lg.com. Mail to: LG Customer Information Center (ATTN: CIC) 201 James Record Road, Huntsville, AL 35824...
- Page 27 Notice of Dispute. In the event you intend to commence an arbitration proceeding, you must first notify LG in writing at least 30 days in advance of initiating the arbitration by sending a letter to LG at LG Electronics, USA, Inc. Attn: Legal Department- Arbitration 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
- Page 28 You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either: (i) sending an e-mail to optout@lge.com, with the subject line: “Arbitration Opt Out”...
- Page 29 LG Customer Information Center 1-800-243-0000 Register your product Online! LG Electronics Inc. www.lg.com 111 Sylvan Avenue, Englewood Cliffs, NJ 07632.
