Beulux C92-6ZR Manual

RF Dual Color Remote Controller

Important: Read All Instructions Prior to Installation

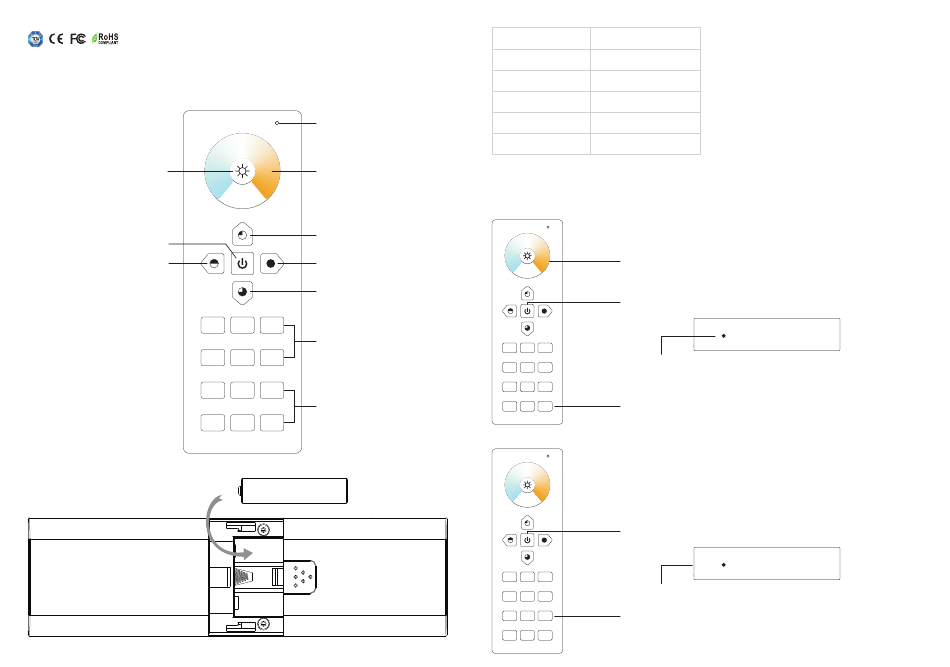

Function introduction

Press and hold down to increase/
decrease light intensity
Click to turn ON/OFF all zones
50% brightness
S1
S4
Beulux Code: C92-6ZR
Indicator: indicate the
state of remote control
Touch color wheel, touch to select
color temperature
25% brightness
100% brightness
75% brightness
S2 S3
Press and hold down to save colors;
Click to recall the saved colors
S5 S6
1 2 3
Zone numbers:Click to choose the zone/
zones, Press and hold down to turn on/off
corresponding zone
4 5 6
Front side
3xAAA battery
Bottom side

Product Data

Output
RF signal
Operation Frequency
869.5/916.5/434MHz
Power Supply
4.5V(3xAAA battery)
Operating temperature
0-40°C
Relative humidity
8% to 80%
Dimensions
140x48x17mm
Safety & Warnings
• This device contains AAA batteries that shall be stored and disposed properly.
• DO NOT expose the device to moisture.
Pair with RF receiver(Method 1)
Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the
instruction of RF receiver that you would like to pair with.
Step 5:Touch the color wheel, LED lights connected with the RF receiver flicker
once means the receiver is paired with zone 6 successfully.
Step 2:Click ON/OFF button to activate the remote
S1 S2 S3
Step 3:Click the "Learning Key" button on RF receiver or re-power on the receiver
S4 S6
S5
three times continuously to set it into pairing status
1 2 3
4 5 6 Step 4:Choose and click a zone number(e.g. zone 6)
Pair with RF receiver(Method 2)
Step 1:Do wiring the RF receiver according to wiring diagram(please refer to the
instruction of RF receiver that you would like to pair with.
Step 2:Click ON/OFF button to activate the remote
S1 S2 S3
Step 3:Power off and power on the receiver
S4 S6
S5
Step 4:Choose and click a zone number(e.g. zone 3) twice, then press and hold it
1 2 3
continuously and quickly within 10 seconds, LED lights connected with the RF receiver
4 5 6
flicker once means the receiver is paired with zone 3 successfully.
• Control 6 zones of RF receivers separately.
• CCT color controller
• High sensitive & high stable t, fast & precise color control.
• Compatible with all universal series RF receivers
• 1 receiver can be paired by max 8 different remote controls.
• Waterproof grade: IP20
