Page 1 DS350 (1319) Vertical Console Operator’s Manual...
Page 3 !" #$ÿ 1 2 34 5 6 ÿ 1 ÿ ÿ & & 2 ÿ ' ÿ 2 ÿ 1 ( ÿ ) ÿ & * & ( ÿ ÿ ) ÿ & 6 7 ÿ 6 ( * 7 ÿ + ÿ ÿ 6 ( ÿ 7 ÿ ) ÿ 6 ( ÿ...
Page 5: Table Of Contents
Operator's Manual DS 350 / 1319 TABLE OF CONTENTS GENERAL INFORMATION..................1 WARNINGS ......................1 SYSTEM DESCRIPTION ..................2 ....................4 3.1 S YSTEM UNCTION ..................... 5 3.2 O PERATING ONSOLE ..................5 3.3 C ONTROL DENTIFICATION CONFIGURATION SETUP ..................11 ..................
Page 7: General Information
General Information 1 GENERAL INFORMATION The PAT Load Moment Indicator (LMI) DS 350 has been designed to provide the crane operator with the essential information required to operate the machine within its design parameters. Using different sensing devices, the Load Moment Indicator monitors various crane functions and provides the operator with a continuous reading of the crane’s capacity.
Page 8: System Description
Operator's Manual DS 350 / 1319 3 SYSTEM DESCRIPTION The PAT Load Moment Indicator DS 350 consists of a central micro processor unit, operating console, length/angle sensor, pressure transducers, and anti-two block switches. The system operates on the principle of reference/real comparison. The real value, resulting from the pressure measurement is compared with the reference data, stored in the central processor memory and evaluated in the micro processor.
Page 9 SYSTEM DESCRIPTION Fig. 1: Components of the LMI system PAT DS 350 1 Anti Two-Block switches 2 Pressure Transducers 3 Length/Angle sensor 4 Operating console 5 Central-Micro-Processor unit SkyAzúl, Equipment Solutions www.skyazul.com 301-370-6126...
Page 10: System Function
Operator's Manual DS 350 / 1319 SYSTEM FUNCTION Upon switching on, the system starts with an automatic test of the LMI system, of lamps and audible alarm. During the test, the LC display shows the initial logo. If the system was turned off for more than two hours, the setup configuration has to be entered after the system test.
Page 11: Operating Console
SYSTEM DESCRIPTION OPERATING CONSOLE The console has 3 functions: • inputs by the crane operator (operating mode, reeving) • input of geometry limit values and signalization of exceeded limit values • display of important data and information The operator’s console is mounted in the crane’s cab in the operator’s field of vision. For a better identification of displays and operating elements, they are continuously backlit during operation.

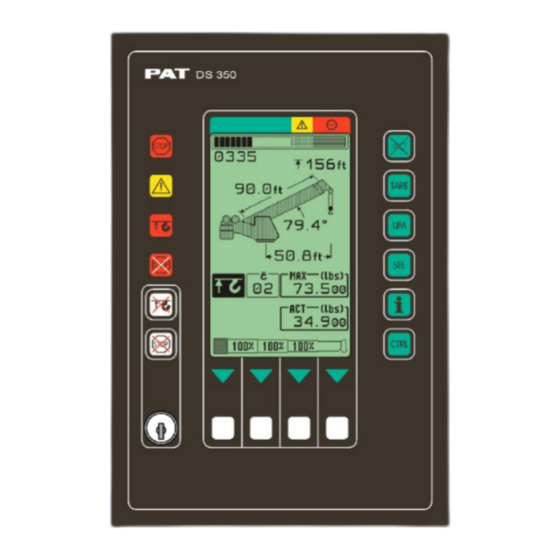

Page 12 Operator's Manual DS 350 / 1319 Fig. 2: Operating Console SkyAzúl, Equipment Solutions www.skyazul.com 301-370-6126...
Page 13 SYSTEM DESCRIPTION LC-Display The LC display visualizes graphical symbols, texts and numerical values. Depending on the selected operating mode (setup, limit mode or LMI representation), the corresponding information is indicated on the display. Please refer to the description of the different operating modes for the signification of the individual elements.
Page 14 Operator's Manual DS 350 / 1319 Button and Control Light “Tare” The button “TARE” (7) is used to indicate the “Net load” on the LC Display (1). Net load is the present load, less lifting tackle and hook block. The Tare Button (7) has to be activated before lifting. After pushing the “Tare Button”...
Page 15 SYSTEM DESCRIPTION Audible Alarm The AUDIBLE ALARM (12), sounds during the following conditions: overload condition approaching two-block condition preset limits reached malfunction of the LMI system operating error The alarm can be temporarily silenced by pushing the button “Alarm Stop” (6). Key Switch The anti-two-block switch cut-off function is deactivated when the KEY SWITCH (13) is turned to position "B"...
Page 16 Operator's Manual DS 350 / 1319 Button "By-pass A2B" This button can be operated only if key switch (13) is turned to position B. After pushing this button, the cut-off function of the anti-two-block switch is deactivated. The Override Key Warning Light (5) flashes to indicate that the cut- off function is deactivated.
Page 17: Configuration Setup
CONFIGURATION SETUP 4 CONFIGURATION SETUP The LMI setup procedure allows the operator to input the crane configuration using interactive displays. The operator must complete the setup procedure for the Load Moment Indicator system if the system has been turned off for more than two hours or the crane operation configuration has been changed.
Page 18 Operator's Manual DS 350 / 1319 The LMI programming procedure consists of the following steps: • Setting The Boom Configuration • Setting The Counterweight Configuration (Where Applicable) • Setting The Hoist Configuration • Setting The Outrigger Configuration • Setting The Reevings •...
Page 19 CONFIGURATION SETUP Main Boom Operation With Boom Extensions Aux. Boom Nose Operation Main Aux. Fixed Fixed, Tele- Fixed Jib Boom Boom Frame Ext. Offsettabl Offsettable Nose Boom Extension Ext. Extension For detailed symbol explanation of extensions, please refer to Appendix A in this manual. •...
Page 20 Operator's Manual DS 350 / 1319 • (If selected on rubber mode only) Static Pick & Carry • Setting the reeving (parts of line) Increase Reeving Decrease Reeving Confirm Reeving • Confirmation Of The Programming Procedure boom counterweight configuration configuration reeving (optional) (parts of line)
Page 21: Quick Setting Of The Reeving
CONFIGURATION SETUP QUICK SETTING OF THE REEVING If, during the crane operation, the number of reeving is modified, the LMI system has to be adjusted to this modification. The input of the reeving can be carried out directly without having to go through the whole LMI programming procedure again: Call LMI Programming Procedure.
Page 22: Quick Hoist Line Selection
Operator's Manual DS 350 / 1319 QUICK HOIST LINE SELECTION If, during the crane operation, the crane is switched over from front to rear hoist, the LMI system has to be adjusted to this modification. This modification can be entered without having to go through the whole LMI setup procedure again: Call LMI setup procedure.
Page 23: Operation
Operation 5 OPERATION After having set the LMI to the actual crane configuration, the system is ready for operation. The display shows the LMI screen (example for value representation). utilization bargraph tip height operation code number boom length boom angle radius reeving max.
Page 24 Operator's Manual DS 350 / 1319 Upon request, further symbols can be shown on the display: Symbol Anti-Two-Block Alarm visible when the anti-two-block limit switch contacts open, indicating that a two-blocking condition is approaching. Symbol slewing angle limitation: continuously visible: slewing angle limitation active blinking slewing angle limits exceeded...
Page 25: Limit Setting
Operation LIMIT SETTING The LMI system has been equipped with programmable limits for the crane's operation range. • Easy programming due to interactive, step-by-step user guidance • Functions can be used individually or in combinations. • Exceeding a programmed limit triggers an audible and visual alarm. •...
Page 26: Slewing Angle Limitation / Work Area Definition
Operator's Manual DS 350 / 1319 5.1.1 Slewing Angle Limitation / Work Area Definition Programmable function for the limitation of the left and/or right slewing angle or working area definition. • Call function: Call LIMIT Setting. Enter the corresponding figure to call the function: Slewing angle limitation (Maximum/Minimum Slewing...
Page 27 Operation • set / delete right slewing angle Select limit: select right limit set: delete: Position boom to delete right the required right angle limit limit value. present slewing angle as right limit Display shows symbols and angle values of the programmed slewing angle limit...
Page 28 Operator's Manual DS 350 / 1319 5.1.1.B Work Area Definition The work area definition system helps the operator to define the crane’s working area. This is done by creating vertical wall(s) that can represent obstacles (i.e. buildings, towers, poles, etc.) in the crane’s working range.
Page 29 Operation Having pressed SET, the X is displayed (without blinking) at this point. A blinking X at the boom tip indicates that the second point may be set to define the wall. Move the boom tip to other end of the virtual wall you want to set.
Page 30 Operator's Manual DS 350 / 1319 Upon pressing SET, the second wall is created. Accepts the defined walls and exits Allows for further walls to be added Exits the screen and deletes all virtual wall settings SkyAzúl, Equipment Solutions www.skyazul.com 301-370-6126...
Page 31: Tip Height Limitation
Operation 5.1.2 Tip Height Limitation Programmable function for the limitation of the tip height • Set tip height / delete height limitation: Call LIMIT Setting. Press the corresponding figure to select function "tip height limitation". Press key set: delete: Move the tip to delete tip the required height limitation...
Page 32: Boom Angle Limitation
Operator's Manual DS 350 / 1319 5.1.3 Boom Angle Limitation Programmable function for the limitation of the upper and/or lower boom angle. • Call function: Call LIMIT Setting. Enter the corresponding figure to call function "boom angle limitation". • set / delete upper limit value: Select limit: selection upper boom angle limit...
Page 33 Operation Select limit: selection lower boom angle limit set: delete: Luff down boom delete to the required lower angle limit limit value. set present boom angle as lower limit Display shows symbol with lower angle limit Display shows symbol without value of lower limit angle Quit...
Page 34: Radius Limitation
Operator's Manual DS 350 / 1319 5.1.4 Radius Limitation Programmable function for the limitation of the minimum and/or maximum working radius. • Call function: Call LIMIT Setting Select the corresponding figure to call the function "radius limitation". • set / delete minimum radius: Select limits: select minimum radius limit set:...
Page 35 Operation • Set / Delete Maximum Radius Select limit: Selection Maximum Radius Limit set: delete: Position boom to Delete the required maximum radius maximum radius limit value. set present boom radius as maximum radius Display shows symbol with radius value of max.
Page 36: Info Crane Configuration
Operator's Manual DS 350 / 1319 INFO CRANE CONFIGURATION When the system is ready for operation, this function displays the system configuration • Call Function Press key "INFO". The display shows the crane symbol representing the adjusted configuration (marked black), the extended operating code number and the reeving number (parts of line).
Page 37: Display Contrast Control
Operation DISPLAY CONTRAST CONTROL This function serves for the contrast adjustment of the LC display. The last adjustment is stored and does not have to be repeated at every system start. • Contrast Adjustment Press "CTRL". A pattern is shown by means of which the display can be adjusted to the optimum contrast.
Page 38: Pre-Operation Inspection And Calibration Verification
Operator's Manual DS 350 / 1319 6 PRE-OPERATION INSPECTION AND CALIBRATION VERIFICATION Before operating the crane, the following electrical connections must be checked to ensure that the system is properly connected for the crane configuration. MACHINES WITH ONLY A MAIN HOIST If the crane works only with the boom and without boom extension, no additional connections are necessary.
Page 39: Installation Of Anti Two-Block Retainer In Locking Position
Pre-Operation Inspection and Calibration Verification INSTALLATION OF ANTI TWO-BLOCK RETAINER IN LOCKING POSITION Procedure (see Fig. 1 and 2): 1. Pull the cable out of the switch and bend back parallel to the boom and hold (1). 2. Slide the retainer from left side with its slot over the cable between the crimped stop and the switch (2). Push it firmly straight onto the cable guide of the Anti Two-Block switch (3).
Page 40: Pre-Operation Inspection And Calibration Verification
Operator's Manual DS 350 / 1319 PRE-OPERATION INSPECTION AND CALIBRATION VERIFICATION After the electrical connections have been checked to insure that the system is properly connected for the crane configuration, the following checks shall be made: 1. Check the electrical wiring connecting the various parts of the system for physical damage. 2.
Page 41 Pre-Operation Inspection and Calibration Verification If the light and audible alarm do not function as described and the crane movements are not stopped, the system is not working properly. The malfunction shall be corrected before operating the crane. 2. If the crane is equipped with a boom extension, repeat the test procedure for the boom extension anti two-block switch.
Page 42: Operation
Operator's Manual DS 350 / 1319 7 OPERATION Upon correct inspection the LMI is operational. The operator shall be thoroughly familiar with all controls of the LMI before operating the crane. The proper function of the system shall be checked by lifting a load of known weight and comparing the load to the information displayed on the LMI.
Page 43: Service And Maintenance
Service and Maintenance 8 SERVICE AND MAINTENANCE Daily maintenance of the load moment indicator consists of inspecting: 1. The electrical wiring connecting the various parts of the system. If electrical wiring is damaged, it shall be replaced immediately. 2. If the insulation is worn on the length sensor cable or cable guides are damaged, these parts shall be replaced.
Page 44: Troubleshooting
Operator's Manual DS 350 / 1319 9 TROUBLESHOOTING GENERAL In case of a malfunction of the system, the display (1) will indicate a code that identifies the system malfunction. The error codes listed in the Malfunction Table will identify various faults that can occur with the LMI. Following the Malfunction Table are pages which explain each fault and describe the action which shall be taken to correct the fault.
Page 45: Operating Errors
Troubleshooting OPERATING ERRORS Malfunctions in the system which are caused by range exceeding or operating errors by the crane operator himself are indicated on the display together with an explanation. These error codes are E01, E02, E03, E04, E05, E18 and E83 and they can normally be eliminated by the crane operator himself. Error Cause Elimination...
Page 46: Appendix A: Detailed Symbol Explanation Of Boom Extensions
Operator's Manual DS 350 / 1319 10 APPENDIX A: DETAILED SYMBOL EXPLANATION OF BOOM EXTENSIONS Main boom auxiliary boom nose A-frame boom offsetable extension A-frame Fixed tele- extension offsettable extension Fixed, fixed jib offsettable extension Swingaway/ swingaway bifold with fly with fly/tele stowed main boom...
Page 47: Appendix B: Detailed Symbol Explanation Of Counterweight Options
Appendix B 11 APPENDIX B: DETAILED SYMBOL EXPLANATION OF COUNTERWEIGHT OPTIONS without auxiliary hoist structure with mounted auxiliary hoist structure with counterweight A with counterweight B only for cranes with auxiliary counterweight: without auxiliary counterweight with auxiliary counterweight without counterweight with counterweight A with counterweight B with counterweight A + B...
Page 48 Operator's Manual DS 350 / 1319 only for cranes with superstructure counterweight and front bumper counterweight configuration: scroll up to the next pre-programmed counterweight configuration scroll down to the next pre-programmed counterweight configuration press the O.K. button to confirm and to proceed with console programming SkyAzúl, Equipment Solutions www.skyazul.com...
