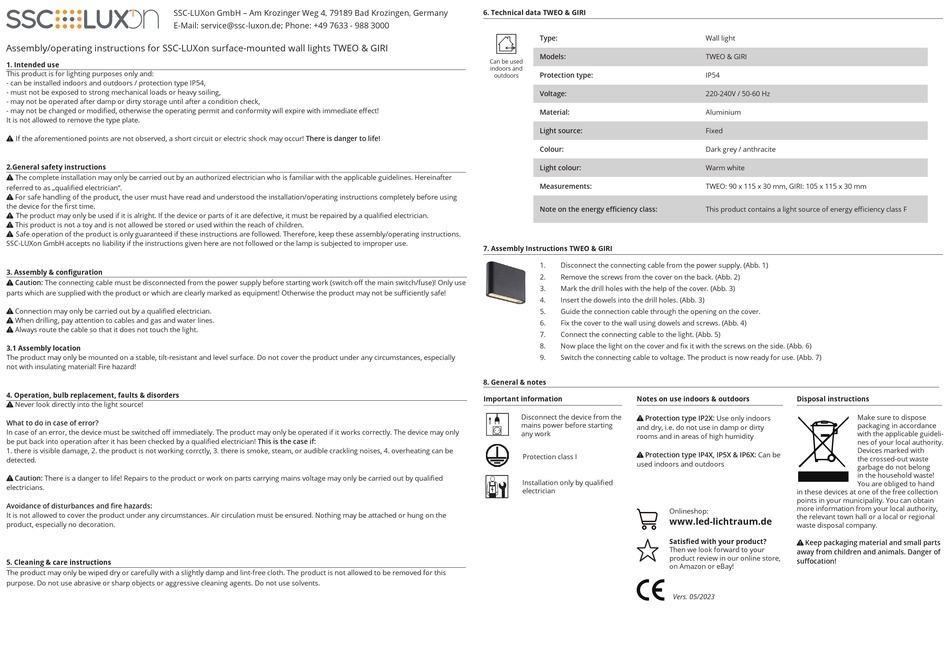

SSC-LUXon TWEO Assembly & Operating Instructions

SSC-LUXon GmbH – Am Krozinger Weg 4, 79189 Bad Krozingen, Germany
E-Mail: service@ssc-luxon.de; Phone: +49 7633 - 988 3000
Assembly/operating instructions for SSC-LUXon surface-mounted wall lights TWEO & GIRI
1. Intended use
This product is for lighting purposes only and:
- can be installed indoors and outdoors / protection type IP54,
- must not be exposed to strong mechanical loads or heavy soiling,
- may not be operated after damp or dirty storage until after a condition check,
- may not be changed or modified, otherwise the operating permit and conformity will expire with immediate effect!
It is not allowed to remove the type plate.
 If the aforementioned points are not observed, a short circuit or electric shock may occur! There is danger to life!
2.General safety instructions
 The complete installation may only be carried out by an authorized electrician who is familiar with the applicable guidelines. Hereinafter
referred to as „qualified electrician".
 For safe handling of the product, the user must have read and understood the installation/operating instructions completely before using
the device for the first time.
 The product may only be used if it is alright. If the device or parts of it are defective, it must be repaired by a qualified electrician.
 This product is not a toy and is not allowed be stored or used within the reach of children.
 Safe operation of the product is only guaranteed if these instructions are followed. Therefore, keep these assembly/operating instructions.
SSC-LUXon GmbH accepts no liability if the instructions given here are not followed or the lamp is subjected to improper use.
3. Assembly & configuration
 Caution: The connecting cable must be disconnected from the power supply before starting work (switch off the main switch/fuse)! Only use
parts which are supplied with the product or which are clearly marked as equipment! Otherwise the product may not be sufficiently safe!
 Connection may only be carried out by a qualified electrician.
 When drilling, pay attention to cables and gas and water lines.
 Always route the cable so that it does not touch the light.
3.1 Assembly location
The product may only be mounted on a stable, tilt-resistant and level surface. Do not cover the product under any circumstances, especially
not with insulating material! Fire hazard!
4. Operation, bulb replacement, faults & disorders
 Never look directly into the light source!
What to do in case of error?
In case of an error, the device must be switched off immediately. The product may only be operated if it works correctly. The device may only
be put back into operation after it has been checked by a qualified electrician! This is the case if:
1. there is visible damage, 2. the product is not working corrctly, 3. there is smoke, steam, or audible crackling noises, 4. overheating can be
detected.
 Caution: There is a danger to life! Repairs to the product or work on parts carrying mains voltage may only be carried out by qualified
electricians.
Avoidance of disturbances and fire hazards:
It is not allowed to cover the product under any circumstances. Air circulation must be ensured. Nothing may be attached or hung on the
product, especially no decoration.
5. Cleaning & care instructions
The product may only be wiped dry or carefully with a slightly damp and lint-free cloth. The product is not allowed to be removed for this
purpose. Do not use abrasive or sharp objects or aggressive cleaning agents. Do not use solvents.
6. Technical data TWEO & GIRI
Type:
Models:
Can be used
indoors and
Protection type:
outdoors
Voltage:
Material:
Light source:
Colour:
Light colour:
Measurements:
Note on the energy efficiency class:
7. Assembly Instructions TWEO & GIRI
1. Disconnect the connecting cable from the power supply. (Abb. 1)
2. Remove the screws from the cover on the back. (Abb. 2)
3. Mark the drill holes with the help of the cover. (Abb. 3)
4. Insert the dowels into the drill holes. (Abb. 3)
5. Guide the connection cable through the opening on the cover.
6. Fix the cover to the wall using dowels and screws. (Abb. 4)
7. Connect the connecting cable to the light. (Abb. 5)
8. Now place the light on the cover and fix it with the screws on the side. (Abb. 6)
9. Switch the connecting cable to voltage. The product is now ready for use. (Abb. 7)
8. General & notes
Important information Notes on use indoors & outdoors
Disconnect the device from the
 Protection type IP2X: Use only indoors
mains power before starting
and dry, i.e. do not use in damp or dirty
any work
rooms and in areas of high humidity
 Protection type IP4X, IP5X & IP6X: Can be
Protection class I
used indoors and outdoors
Installation only by qualified
electrician
Wall light
TWEO & GIRI
IP54
220-240V / 50-60 Hz
Aluminium
Fixed
Dark grey / anthracite
Warm white
TWEO: 90 x 115 x 30 mm, GIRI: 105 x 115 x 30 mm
This product contains a light source of energy efficiency class F
