Smart Wi-Fi Security Floodlight WiZ instructions
C. (2) #6-32 x 3/4 in. and (2) #8-32 x 3/4 in.
Junction box screws (use the size
that fits your junction box)
1. Philips Screwdriver
2. Safety Goggles
3. Silicone Sealant
4. Wire Strippers / Cutter
5. Circuit Tester
6. Adjustable Wrench
7. Work Gloves
8. Ladder
9. Power Drill
When using product, basic precautions should always be followed, including the following:
1.
Heed all warnings, including below warnings AND those included on product.
2.
HALO Outdoor Security luminaires (fixtures) are designed to meet the latest NEC requirements and are certified in full compliance
with UL. Before attempting installation of any lighting luminaire check your local electrical code. This code sets the wiring standards
for your locality and should be carefully studied before starting.
3.
Read and follow these instructions.
4.
For outdoor use only.
5.
cULus LISTED for wet location.
6.
Disassembling your fixture will void the warranty
7.
Your fixture is prewired and preassembled for easy installation.
8.
Do not make or alter any open holes in an enclosure of wiring or electrical components during kit installation.
9.
Smart technology and downloads required to operate the fixtures.
10. To prevent wiring damage or abrasion, do not expose wiring to edges of sheet metal or other sharp objects.
11.
Connect fixture to a 120 volt, 60 Hz power source. Any other connection voids the warranty.
12. Fixture should be installed by persons with experience in household wiring or by a qualified electrician. The electrical system, and
the method of electrically connecting the fixture to it, must be in accordance with the National Electrical Code and local building
codes.
13. WARNING - Risk of fire or electric shock.
14. Fixture operating temperature of -30C to 40°C.

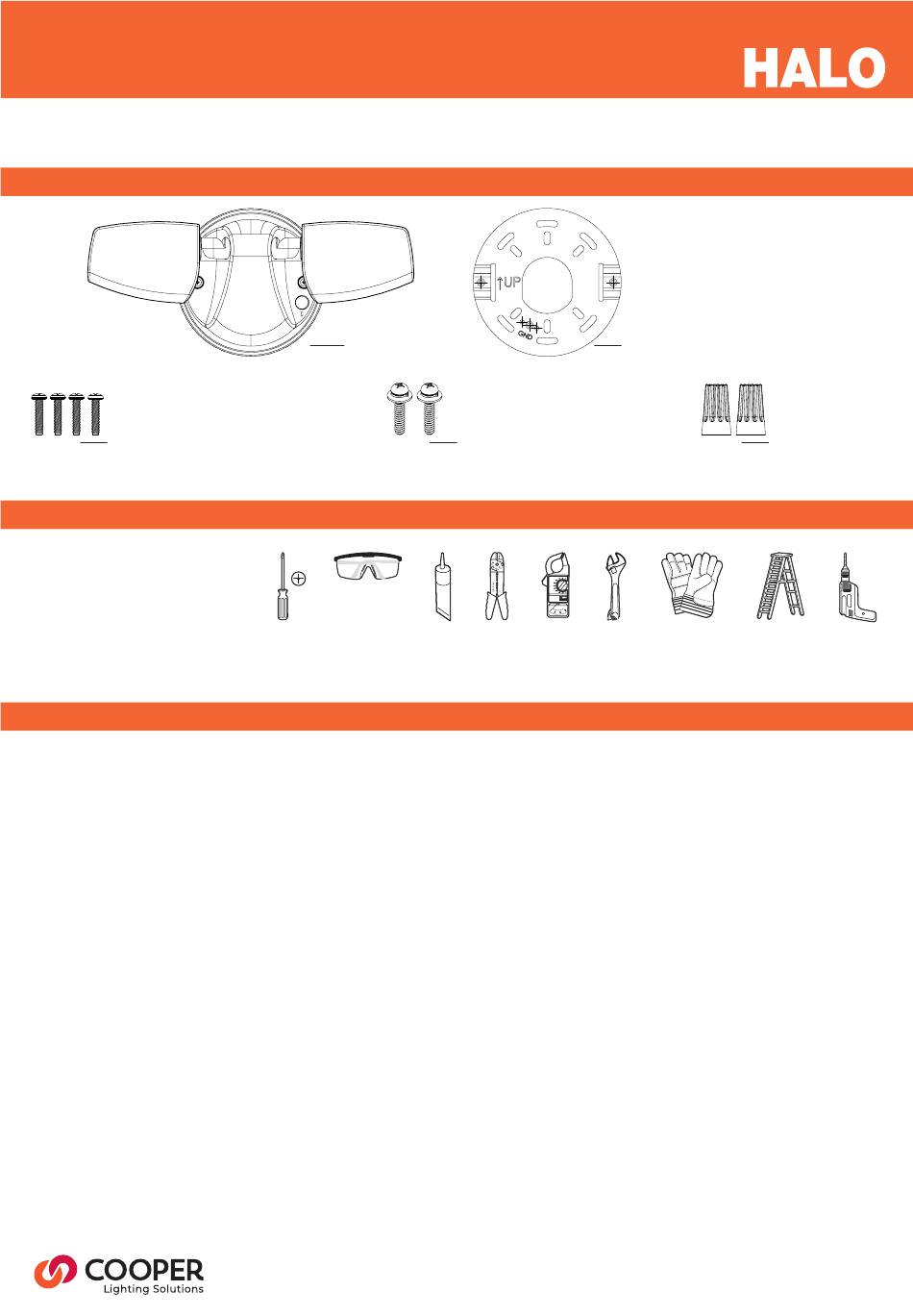

PACKAGING CONTENTS
A. Polycarbonate
housing light fixture
ITEMS REQUIRED (Purchase separately)
1
2
3
IMPORTANT SAFETY INSTRUCTIONS
B. Stainless steel mounting bracket
D. (2) Fixture Mounting Screws
(M4*20mm) with Washers
4
5
6
INS #
ESF2ARGBWFB-WiZ
ESF2ARGBWFW-WiZ
with ground screw
E. (2) Wire Nuts
7
8
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ESF2ARGBWFB-WiZ and is the answer not in the manual?

Questions and answers

Summary of Contents for Halo ESF2ARGBWFB-WiZ

  • Page 1 Heed all warnings, including below warnings AND those included on product. HALO Outdoor Security luminaires (fixtures) are designed to meet the latest NEC requirements and are certified in full compliance with UL. Before attempting installation of any lighting luminaire check your local electrical code. This code sets the wiring standards for your locality and should be carefully studied before starting.
  • Page 2: Installation & Mounting Instructions

    Risk of Fire - MINIMUM 75°C SUPPLY CONDUCTORS. Edges may be Sharp - If uncertain, consult an electrician. Wear gloves while handling. Risk of Electric Shock - To avoid possible electrical shock, be sure that power supply is turned off at fuse box or circuit breaker before installing or servicing luminaire.
  • Page 3: Troubleshooting

    TROUBLESHOOTING Problem Possible Cause Solution Unable to find luminaire on Luminaire may not be in Connectivity Mode. Cycle the light switch connected to luminaire ON/OFF 3 times to • the network. enter Pairing Mode. Refer back to WiZ App Help center for FAQ’s. •...
  • Page 4: Year Limited Warranty

    IC 20cm RF This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum • distance of 20 cm between the radiator and your body. This device complies with industry Canada license-exempt RSS-247 standard(s). •...
  • Page 5: Contenu De L'emballage

    Respectez tous les avertissements incluant les avertissements ci-dessous ET ceux indiqués sur le produit. Les luminaires de sécurité d’extérieur HALO sont conçus pour répondre aux plus récentes exigences de la NEC et sont homologués entièrement conformes à la norme UL. Avant de tenter l’installation d’un luminaire, consultez le Code d'électricité de votre région. Ce Code stipule les normes de câblage selon votre région et doit être étudié...
  • Page 6 AVERTISSEMENT MISE EN GARDE Risque d’incendie – CONDUCTEURS D’ALIMENTATION POUVANT SUPPORTER Les bords peuvent être tranchants - UN MINIMUM DE 75 °C. Consultez un électricien en cas de doute. Portez des gants lors de la manipulation. Risque de décharge électrique - Pour éviter la possibilité...
  • Page 7: Dépannage

    Configuration et contrôle : Application WiZ Application WiZ Pro Bricoleurs et Propriétaires : Configurez et contrôlez votre luminaire en téléchargeant • l’application WiZ et en suivant les étapes de l’application pour configurer votre appareil. Pour plus d’informations, visitez : https://faq.wizconnected.com/hc/en/3-wiz/ Installateurs : Utilisez l’application de configuration WiZ Pro pour l’appariement et •...
  • Page 8 Déclaration en matière d’exposition aux RF Ce matériel est conforme aux limites d’exposition aux rayonnements de la FCC établies pour un environnement non contrôlé. Ce matériel doit être installé et • fonctionner à au moins 20 cm de distance entre le radiateur et votre corps. Énoncé...
  • Page 9: Contenido Del Paquete

    Preste atención a todas las advertencias, incluidas las advertencias que figuran a continuación Y las que incluya el producto. Los luminarios HALO para exteriores están diseñados para cumplir con los requisitos más recientes del Código Eléctrico Nacional (NEC, por sus siglas en inglés) y están certificados por cumplir plenamente con UL. Antes de intentar instalar cualquier clase de luminario, revise su código eléctrico local.
  • Page 10 Riesgo de incendio: CONDUCTORES DE ALIMENTACIÓN DE 75 °C Los bordes pueden ser afilados: COMO MÍNIMO. Si tiene dudas, consulte a un electricista. Utilice guantes durante la manipulación. Riesgo de descarga eléctrica: Para evitar una posible descarga eléctrica, asegúrese de que la fuente de alimentación esté...
  • Page 11: Solución De Problemas

    Configuración y control: Aplicación WiZ Aplicación WiZ Pro Aficionados y Propietarios: Para configurar y controlar su luminario, descargue la • aplicación WiZ y siga los pasos que se encuentran en esta para configurar el dispositivo. Para obtener más información, visite: https://faq.wizconnected.com/hc/en/3-wiz/ Instaladores: Utilice la aplicación WiZ Pro Setup para el emparejamiento y la •...
  • Page 12: Garantía Limitada De 5 Años

    Declaración de exposición a radiofrecuencia (RF) Este equipo cumple con los límites de exposición a la radiación de la FCC establecidos para un entorno no controlado. Este equipo debe instalarse y utilizarse con • una distancia mínima de 20 cm entre el radiador y su cuerpo. Declaración de la IC Este dispositivo contiene transmisores o receptores exentos de licencias que cumplen con las Especificaciones Estándar de Radio (RSS, por sus siglas en inglés) •...
