Summary of Contents for Interlink EC Series

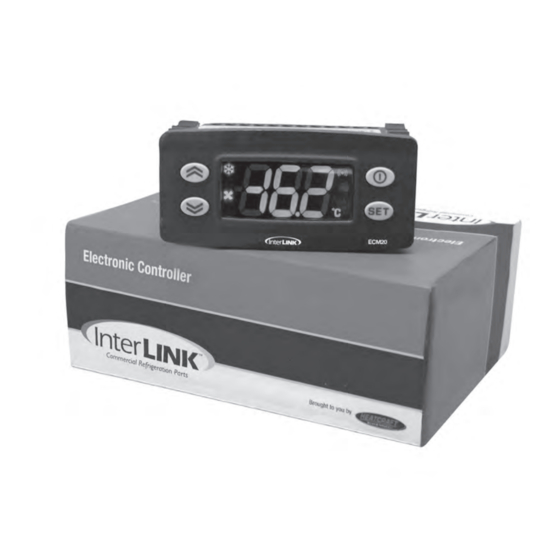

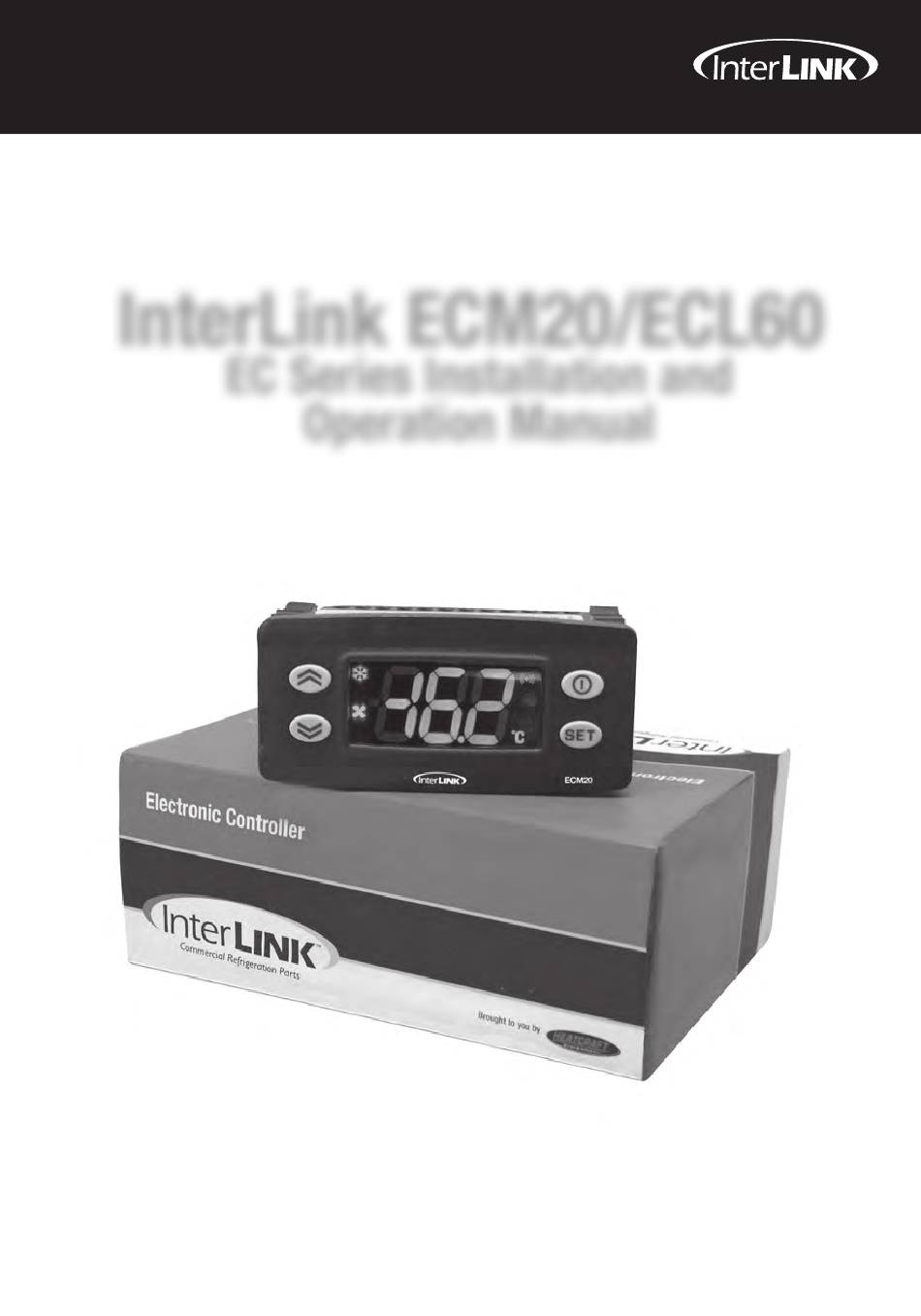

- Page 1 Commercial Refrigeration Parts InterLink ECM20/ECL60 EC Series Installation and Operation Manual...
-
Page 2: Table Of Contents
ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts Contents User Interface Keys and Led Accessing and Using Menus Basic Commands Menu Basic Commands Edit Lock Programming Menu Copy Card Password EnABLIng DEfrOSt Manually Diagnostics Alarms MAx AnD MIn tEMPErAtUrE Mechanical Assembly Elecctrical Wiring Conditions of use Liability and residual risk... -
Page 3: User Interface
ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts Electronic controllers for refrigerating units to activate the LOC function: - enter the ‘Basic Commands’ menu by pressing - press the keys within 2 seconds If the LOC function is active and you try to enter the ‘Parameters’ menu, the word LOC appears. If this happens, the parameters are still displayed but cannot be edited. -
Page 4: Accessing And Using Menus
ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts Accessing and Using the Menus Resources are organised into menus which are accessed by briefly tapping the key (‘Basic Commands’ menu) or by keeping the key pressed for more than 5 seconds (‘Programming’ menu). Either do not press any keys for 15 seconds (time-out) or press the key once,to confirm the last value displayed and return to the previous screen. -
Page 5: Programming Menu
ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts Programming Menu To access the ‘Programming’ menu hold down the key for more than 5 seconds. If specified, the ‘PA1’ access PASSWORD will be requested (see ‘PASSWORD’ paragraph). Press the key to modify the values. The display will show the first folder in the menu (e.g.: the ‘CP’... -
Page 6: Password
ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts Passwords The password ‘PA1’ allows access to the programming parameters. In the standard configuration the password is disabled (value = 0). To enable it (value ≠ 0) and assign the required value, enter the ‘Programming’ menu, in the folder with the ‘diS’ label. If the password is already enabled it will be required to access the ‘Programming’... -
Page 7: Alarms
ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts Alarms ALARMS Label Fault Cause Eff ects Remedy • Display label E1 • measured values are outside • Alarm icon permanently on • check probe type NTC/PTC (H00) Probe 1 faulty operating range •... -
Page 8: Mechanical Assembly
ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts Mechanical Assembly MECHANICAL ASSEMBLY The instrument is designed for panel mounting. Make a hole of 29x71 mm, insert the instrument and fix it using the brackets provided. Do not mount the instrument in humid and/or dirty places; it is suitable for use in ordinary polluted places. Ventilate the place in proximity to the The instrument is designed for panel mounting. -
Page 9: Disclaimer
This manual and its contents remain the sole property of Interlink CONTROLS SRL, and shall not be reproduced or distributed without authorization. Although great care has been exercised in the preparation of this document, Interlink CONTROLS SRL, its employees or its vendors, cannot accept any liability whatsoever connected with its use. -
Page 10: Parameters Table
ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts table of Parameters TABLE OF PARAMETERS PAR. DESCRIPTION Temperature SEtpoint. COMPRESSOR REGULATOR (folder with “CP” label) diFferential. Relay compressor tripping differential. The compressor stops on reaching the Setpoint value (as indicated by the adjustment probe), and restarts at temperature value equal to the Setpoint plus the value of the differential. - Page 11 ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts ALARMS (folder with “AL” label) Allow you to select if the parameters HAL and LAL will have absolute (Att=0) or relative (Att=1) value. Alarm Fan differential. Alarm differential. Higher ALarm. Maximum temperature alarm. Temperature value (in relative value) which if exceeded in an upward direction triggers the activation of the alarm signal.
- Page 12 ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts Parameters-Default Setting Parameters - Default Setting ECM20 ECL60 PAR. ID961 ID971 ID974 U.M. RANGE DEFAULT RANGE DEFAULT RANGE DEFAULT -50,0 ... 99,0 -50,0 ... 99,0 -50,0 ... 99,0 °C/°F +0,1 ... +30,0 +0,1 ...
- Page 13 ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts Connections CONNECTIONS/ CONNESSIONI/ CONEXIONES/ ANSCHLUSS-PLAN/ CONNEXIONS/ ПОДКЛЮЧЕНИЕ CONNECTIONS/ CONNESSIONI/ CONEXIONES/ ANSCHLUSS-PLAN/ CONNEXIONS/ ПОДКЛЮЧЕНИЕ ID961 ID971 ECM20 ID961 ID971 ID961 ID971 PLUS PLUS ID961 ID971 PLUS PLUS Supply Supply 230Va 230Va Supply Supply 3W max 3W max 230Va...
- Page 14 ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts technical Data TECHNICAL DATA (DATI TECNICI) Mechanical Caracteristics (Caratteristiche Meccaniche) Front protection (Protezione frontale): IP65. Housing (Contenitore): PC+ABS UL94 V-0 resin plastic casing, polycarbonate glass, thermoplastic resin keys Dimensions (Dimensioni): front 74x32 mm, depth 59 mm. (excluding terminals) Mounting (Montaggio): panel mounting with 71x29 mm (+0.2/-0.1 mm) drilling template.
- Page 15 ECM20/ECL60 Installation and Operation Manual Commercial Refrigeration Parts notes 0800 653 330 | 15 For friendly service and advice in New Zealand visit your local Heatcraft branch or call...
- Page 16 The InterLink ECM20/ECL60 device is not sold for personal, domestic or household use and the standard Heatcraft Warranty Policy and Terms and Conditions of Sale apply to this device. InterLink ECM20/ECL60 is totally reliant on the GSM network to provide alarm notification and data reporting, these services may not be free from fault or interruption. Heatcraft accepts no liability for the use or misuse of its products under any circumstances, including provision of GSM network, GPS services, or device failure, for whatever reason.
