IDS-2102A User's Manual

1 RS-232/422/485 port to 2 10/100TX Ethernet Device

Server

May 2018

Version: 1.10

Table of Contents

Need help?

Do you have a question about the IDS-2102A and is the answer not in the manual?

Questions and answers

Summary of Contents for Lantech IDS-2102A

Page 1 IDS-2102A User’s Manual 1 RS-232/422/485 port to 2 10/100TX Ethernet Device Server May 2018 Version: 1.10...
Page 2: Table Of Contents
IDS-2102A User’s Manual Table of Content Getting Started ....................3 About IDS-2102A Series ..................3 Hardware Specifications ..................3 Hardware Overview ..................5 Front Panel ......................5 2.1.1 Ports and Connectors ..................5 2.1.2 LED ........................6 Top Panel ......................6 Rear Panel ......................
Page 3 IDS-2102A User’s Manual System ......................32 Port Serial Setting ..................36 Management ....................43 Save/Reboot ....................47 Configuration by SSH Console ................48 4.3.1 Connect to DS ....................48 Lantech Communications Global, Inc.
Page 4: Getting Started

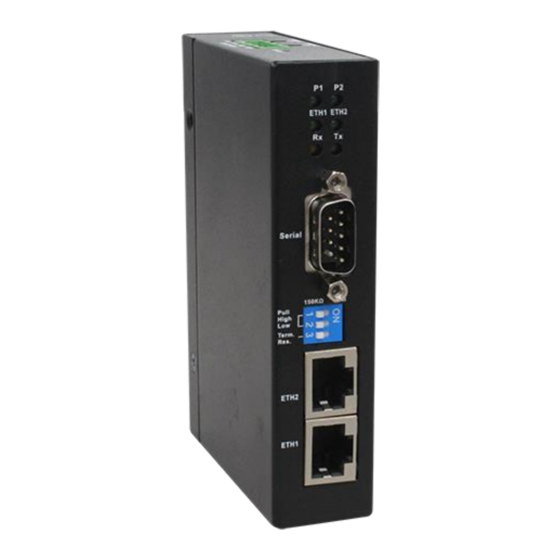

Started 1.1 About IDS-2102A Series The IDS-2102A is an industrial device server with one RS-232/422/485 port and two LAN ports designed for converting signals between serial and Ethernet networks. It provides standard features of device servers such as TCP/IP interfaces and versatile operation modes including Virtual Com, Serial Tunnel, TCP Server, TCP Client, UDP.
Page 5 IDS-2102A User’s Manual  Casing: IP-30  Dimensions: 26 (W) x 75 (D) x 110 (H) mm Lantech Communications Global, Inc.
Page 6: Hardware Overview
IDS-2102A User’s Manual ardware Overview 2.1 Front Panel 2.1.1 Ports and Connectors The device provides the following ports on the top panel. The Ethernet port on the device use RJ-45 connectors Port Description 2 x 10/100Base-T(X) port (one is PoE-enabled)
Page 7: Led
IDS-2102A User’s Manual 2.1.2 LED Color Status Description Power Green Power is on and function normally Ethernet port link up Green Receiving data Green Transmitting data 2.2 Top Panel Below are the top panel components of the device: 1. Terminal blocks: PWR1, PWR2, 2.
Page 8 IDS-2102A User’s Manual Lantech Communications Global, Inc.
Page 9: Hardware Installation
IDS-2102A User’s Manual ardware Installation 3.1 DIN-rail Installation The device comes with a DIN-rail kit to allow you to fasten the device to a DIN-rail in any environments. DIN-rail Kit Measurement (unit = mm) Installing the device on the DIN-rail is easy. First, screw the Din-rail kit onto the back of the device, right in the middle of the back panel.
Page 10: Wall Mounting
IDS-2102A User’s Manual 3.2 Wall Mounting Besides Din-rail, the device can be fixed to the wall via wall mount kits, which can be found in the package. Wall-Mount Kit Measurement (unit = mm) Follow the steps below to install the device to a rack.
Page 11: Wiring
IDS-2102A User’s Manual Step 2: With front brackets orientated in front of the rack, mount the device in the rack with four rack-mounting screws. 3.3 Wiring WARNING Do not disconnect modules or wires unless power has been switched off or the area is known to be non-hazardous. The devices may only be connected to the supply voltage shown on the type plate.
Page 12: Redundant Power Inputs
IDS-2102A User’s Manual 3.3.2 Redundant Power Inputs The device has two sets of DC power inputs on a 4-pin terminal block located on top of the device. Follow the steps below to wire the power input on the terminal block.
Page 13: Db9 Console Port Wiring
IDS-2102A User’s Manual device to a PC. The table below shows the 10/100Base-T(X) MDI and MDI-X port pin outs. 10/100 Base-T(X) MDI/MDI-X Pin Assignments: Pin Number MDI port MDI-X port TD+(transmit) RD+(receive) TD-(transmit) RD-(receive) RD+(receive) TD+(transmit) Not used Not used...
Page 14: Management
IDS-2102A User’s Manual anagement 4.1 DS-Tool The Windows utility DS-Tool is a powerful Windows utility for DS series. It supports device discovery, device configuration, group setup, group firmware update, and monitoring functions. The tool enables you to easily install and configure devices on the network.
Page 15: Using Ds-Tool
IDS-2102A User’s Manual Step 2: When installation completes successfully, click OK. Step 3: You can launch the tool right immediately by checking Launch DS-Tool Now or launch it later by checking Launch DS-Tool Later. 4.1.2 Using DS-Tool Explore device servers DS-Tool will broadcast to the network and search all available DS devices in the network automatically.
Page 16: Configure Device Servers
IDS-2102A User’s Manual 4.1.3 Configure Device Servers General This page enables you to perform general configuration for the device, includes the device name, SNTP server, and auto IP report. Lantech Communications Global, Inc.
Page 17 IDS-2102A User’s Manual Label Description You can input the device name or related information in this field. By clicking Locate On, you can locate the serial server’s Device Name/Location position. If you want to set the time via a SNTP time server, check the...
Page 18 IDS-2102A User’s Manual Label Description You can input the host IP addresses and network masks to prevent Access IP Table unauthorized access. You can set the password to prevent unauthorized access from your Password server. Factory default is no password.
Page 19 IDS-2102A User’s Manual Label Description Using Static IP Manually assign an IP address to the device. Check this box to have the IP address automatically assigned by Using DHCP/BOOTP a DHCP server in your network. All devices on the network must have the same subnet mask to Netmask communicate on the network.
Page 20 IDS-2102A User’s Manual event occurs. SNMP traps are data packages sent from the SNMP client to the server without being explicitly requested. You need to set up trap servers that will receive these messages if the box is checked. Check the box to allow the system to send e-mails when an event occurs.
Page 21 IDS-2102A User’s Manual ･Software Reset (Warm Start): Rebooting the device from Reboot Device function from Save/Load menu will trigger the event. ･Login Failed: Using wrong password in console will trigger the event ･IP Changed: Changing network setting will trigger the event ･Password Changed: Changing the password will trigger the...
Page 22 IDS-2102A User’s Manual Goto Web Management button to access the Web. Check the box to enable management by Telnet. Click Telnet Management Enable Goto Telnet Management button to execute Telnet command. SNMP Management Enable Check the box to enable management by SNMP.
Page 23: Configure Serial Port
IDS-2102A User’s Manual Click this button will save all applied settings into the flash of the Apply and Save appliance All parameters changes to factory’s default except network Load Default settings. If you want to load all factory default, you need to press Reset button on the device (Hardware restore).
Page 24 IDS-2102A User’s Manual Label Description Port alias enables the device server to easily identify the Port Alias serial devices connected to it. Enter an identifying name to be identified by the connected device. Baud rate is the rate at which data is transferred over a serial link.
Page 25 IDS-2102A User’s Manual mark bits. Even: the number of mark bits in the data is counted, and the parity bit is asserted or unasserted to obtain an even number of mark bits. Mark: the parity bit is always set to the mark signal condition...
Page 26: Service Mode
IDS-2102A User’s Manual interfaces include RS-232, RS-422, RS-485(2-wires), and RS-485(4-wires), Throughput: guarantees highest transmission speed. Performance Latency: guarantees shortest response time. Serial to Ethernet / Ethernet to Serial For advanced data packing options, you can specify delimiters for Serial to Ethernet and / or Ethernet to Serial communications.
Page 27 IDS-2102A User’s Manual Label Description Data Port Set the port number for data transmission. When a serial port stops data transmission for a defined period of time (Idle Timeout), the connection will be closed and the port will be freed and try to connect with other hosts.
Page 28 IDS-2102A User’s Manual TCP Server Mode In TCP Server mode, the serial port on the device server is assigned a unique port number. The host computer initiates contact with the device server, establishes the connection, and receives data from the serial device. Five simultaneous connections are supported in this mode, enabling multiple hosts to collect data from the same serial device at the same time.
Page 29 IDS-2102A User’s Manual function is disabled which is the factory default value. The number of maximum connections can be support Max Connection simultaneously is 5; default values is 1. Destination Host Input the IP address of the host. TCP Client Mode In TCP Client mode, the device can establish a TCP connection with the server by the method you have settled (Startup or any character).
Page 30 IDS-2102A User’s Manual The serial device will send a TCP alive-check package in each defined time interval (Alive Check) to remote host to check the Alive Check TCP connection. If the TCP connection is not alive, the connection will be closed and the port will be freed. 0 means the function is disabled which is the factory default value.
Page 31: Notification
IDS-2102A User’s Manual Sending Port IP port for sending outgoing messages Notification Port status can be notified to administrator by means of Email, SNMP trap, or System Log. You can specify the events that should be noticed and the notification methods in this page.
Page 32: Web Management
IDS-2102A User’s Manual incoming of a call. A notification will be sent if the box is checked. In TCP Server Mode, when the device accepts an incoming TCP connection, this event will be triggered. In TCP Client Mode, when Port connected the device has connected to the remote host, this event will be triggered.
Page 33: Settings
IDS-2102A User’s Manual Note: you can use the following default values: IP Address: 192.168.10.1 Subnet Mask: 255.255.255.0 Default Gateway: 192.168.10.254 User Name: admin Password: admin After logging in, you will see the information of the device as below. On the left hand side of the management interface shows links to various settings. Clicking on the links will bring you to individual configuration pages.
Page 34 IDS-2102A User’s Manual Label Description Name Enter the model name of the device SNTP Enable or disable SNTP function Time Zone Choose the time zone according to the location of the device Local Time Set up the local time Time Server...
Page 35 IDS-2102A User’s Manual Winter MET - Middle European MEWT - Middle European Winter SWT - Swedish Winter EET - Eastern European, USSR Zone 1 +2 hours 2 pm BT - Baghdad, USSR Zone 2 +3 hours 3 pm ZP4 - USSR Zone 3...
Page 36 IDS-2102A User’s Manual Label Description Choose to use a static or DHCP-assigned IP. If you choose DHCP, the following fields will gray out. Static: Input an IP address for the device. DHCP/BOOTP: allows the IP address of the device to be IP Configuration automatically assigned by a configuration server.
Page 37: Port Serial Setting
IDS-2102A User’s Manual Auto Report Interval Specify a time interval for which reports will be delivered. User Authentication This page allows you to set up login account and password. You can also change your password in this page. Label Description...
Page 38 IDS-2102A User’s Manual Label Description Port Alias Enter the COM port number that modem is connected to Interface Choose an interface for your serial device. Available interfaces include RS-232, RS-422, RS-485(2-wires), RS-485(4-wires), Baud Rate Choose a baud rate in the range between 110 bps and 460800 bps.
Page 39 IDS-2102A User’s Manual None: parity checking is not performed and the parity bit is not transmitted. Odd: the number of mark bits in the data is counted, and the parity bit is asserted or unasserted to obtain an odd number of mark bits.
Page 40 IDS-2102A User’s Manual Label Description The TCP port the device uses to listen to connections, and that Local TCP Port other devices must use to contact the device. To avoid conflicts with well known TCP ports, the default is set to 4000.
Page 41 IDS-2102A User’s Manual Label Description Data Encryption Click on the radio button to enable or disable data encryption When serial port stops data transmission for a defined period of time, the connection will be closed and the port will be freed and Idle Timeout try to connect with other hosts.
Page 42 IDS-2102A User’s Manual Label Description Data Encryption Click on the radio button to enable or disable data encryption TCP Server Port Enter the TCP server port number When serial port stops data transmission for a defined period of time, the connection will be closed and the port will be freed Idle Timeout and try to connect with other hosts.
Page 43 IDS-2102A User’s Manual Label Description Data Encryption Click on the radio button to enable or disable data encryption Destination Host Set the IP address of host and the port number of data port. . When serial port stops data transmission for a defined period of...
Page 44: Management
IDS-2102A User’s Manual uni-cast or multi-cast data from the serial device server to host computers, and the serial device can also receive data from one or multiple host. Label Description Allows the user to set a new TCP port number to listen on rather...
Page 45 IDS-2102A User’s Manual Label Description Leaving the box unchecked means any host can access the Enable IP Filtering device server. Activate the IP Check the box to activate the IP address Only the host with the specified IP address can access the...
Page 46 IDS-2102A User’s Manual System Event Conf. Specify the events that will be reported to the administrator. The notifications of the events can be done via e-mail, SNMP trap, or system log. Lantech Communications Global, Inc.
Page 47 IDS-2102A User’s Manual Label Description This refers to starting the system from power off (in contrast Hardware Reset (Cold with warm start). When performing a cold start, DS will Start) automatically issue an auto warning message via e-mail, logs, or SNMP trap after booting.
Page 48: Save/Reboot
IDS-2102A User’s Manual be sent. DSR Changed When a DSR (Data Set Ready) signal changes, indicating data communication equipment is powered off, a notification will be sent. RI Changed When a RI (Ring Indicator) signal changes, indicating there is an incoming call, a notification will be sent.
Page 49: Configuration By Ssh Console
IDS-2102A User’s Manual Label Description Press Reset for five seconds (Hardware restore) and it will load Factory Default default configurations to the system except the network settings.. Restore Restore previous settings using previously exported Configuration configurations. Backup Export the current configuration to a file.
