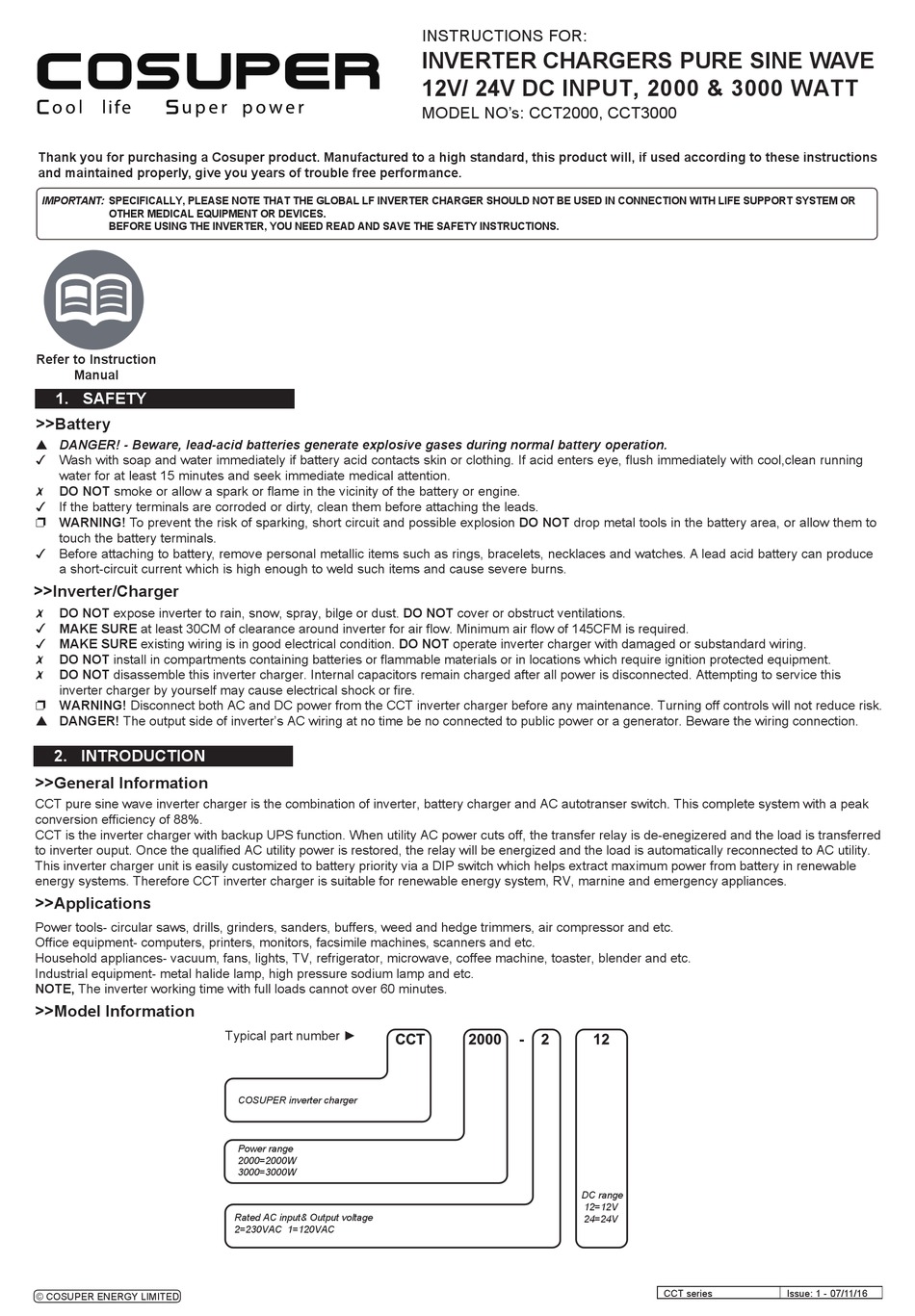

Cosuper CCT2000 Instructions Manual

Inverter chargers pure sine wave 12v/ 24v dc input, 2000 & 3000 watt

Advertisement

Quick Links

Thank you for purchasing a Cosuper product. Manufactured to a high standard, this product will, if used according to these instructions
and maintained properly, give you years of trouble free performance.
IMPORTANT: SPECIFICALLY, PLEASE NOTE THAT THE GLOBAL LF INVERTER CHARGER SHOULD NOT BE USED IN CONNECTION WITH LIFE SUPPORT SYSTEM OR
OTHER MEDICAL EQUIPMENT OR DEVICES.
BEFORE USING THE INVERTER, YOU NEED READ AND SAVE THE SAFETY INSTRUCTIONS.
Refer to Instruction
Manual
1. SAFETY
>>Battery
DANGER! - Beware, lead-acid batteries generate explosive gases during normal battery operation.
 Wash with soap and water immediately if battery acid contacts skin or clothing. If acid enters eye, flush immediately with cool,clean running
water for at least 15 minutes and seek immediate medical attention.
 DO NOT smoke or allow a spark or flame in the vicinity of the battery or engine.
 If the battery terminals are corroded or dirty, clean them before attaching the leads.
WARNING! To prevent the risk of sparking, short circuit and possible explosion DO NOT drop metal tools in the battery area, or allow them to
touch the battery terminals.
 Before attaching to battery, remove personal metallic items such as rings, bracelets, necklaces and watches. A lead acid battery can produce
a short-circuit current which is high enough to weld such items and cause severe burns.
>>Inverter/Charger
DO NOT expose inverter to rain, snow, spray, bilge or dust. DO NOT cover or obstruct ventilations.
MAKE SURE at least 30CM of clearance around inverter for air flow. Minimum air flow of 145CFM is required.
MAKE SURE existing wiring is in good electrical condition. DO NOT operate inverter charger with damaged or substandard wiring.
DO NOT install in compartments containing batteries or flammable materials or in locations which require ignition protected equipment.
DO NOT disassemble this inverter charger. Internal capacitors remain charged after all power is disconnected. Attempting to service this
inverter charger by yourself may cause electrical shock or fire.
WARNING! Disconnect both AC and DC power from the CCT inverter charger before any maintenance. Turning off controls will not reduce risk.
DANGER! The output side of inverter's AC wiring at no time be no connected to public power or a generator. Beware the wiring connection.
2. INTRODUCTION
>>General Information
CCT pure sine wave inverter charger is the combination of inverter, battery charger and AC autotranser switch. This complete system with a peak
conversion efficiency of 88%.
CCT is the inverter charger with backup UPS function. When utility AC power cuts off, the transfer relay is de-enegizered and the load is transferred
to inverter ouput. Once the qualified AC utility power is restored, the relay will be energized and the load is automatically reconnected to AC utility.
This inverter charger unit is easily customized to battery priority via a DIP switch which helps extract maximum power from battery in renewable
energy systems. Therefore CCT inverter charger is suitable for renewable energy system, RV, marnine and emergency appliances.
3. SPECIFICATION
>>Applications
Power tools- circular saws, drills, grinders, sanders, buffers, weed and hedge trimmers, air compressor and etc.
Office equipment- computers, printers, monitors, facsimile machines, scanners and etc.
Household appliances- vacuum, fans, lights, TV, refrigerator, microwave, coffee machine, toaster, blender and etc.
Industrial equipment- metal halide lamp, high pressure sodium lamp and etc.
NOTE, The inverter working time with full loads cannot over 60 minutes.
>>Model Information
© COSUPER ENERGY LIMITED
Typical part number ►
COSUPER inverter charger
Power range
2000=2000W
3000=3000W
Rated AC input& Output voltage
2=230VAC 1=120VAC
INSTRUCTIONS FOR:
INVERTER CHARGERS PURE SINE WAVE
12V/ 24V DC INPUT, 2000 & 3000 WATT
MODEL NO's: CCT2000, CCT3000
DC range
12=12V
24=24V
CCT series
Issue: 1 - 07/11/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCT2000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cosuper CCT2000

  • Page 1 12V/ 24V DC INPUT, 2000 & 3000 WATT MODEL NO’s: CCT2000, CCT3000 Thank you for purchasing a Cosuper product. Manufactured to a high standard, this product will, if used according to these instructions and maintained properly, give you years of trouble free performance.
  • Page 2: Electrical Performance

    This high voltage charge cycle is designed to tbreak down the sulphated crust that is preventing the plates taking a charge and allow the plates to clean up and to accept charge once again. CCT series Issue: 3 - 07/11/16 © COSUPER ENERGY LIMITED...
  • Page 3 Heat sink temp. ≥105℃, ‘Over Temp’ red LED lit, beeps 0.5s every 1s Fan operation CCT2000 and CCT3000, each model has one multiple controlled DC fan which starts working arrcoding to following logic. In SAVER mode, AC fan will work from time to time in response to the pulse sent by inverter.
  • Page 4: Installation

    Determining the DC Power Requirement Powering multiple appliances from the high-power CCT2000/ CCT3000 inverter requires a 12 volt bank of batteries (several batteries). To calculate the approximate power in amps a 12 volt battery bank has to supply you need. To know the current, or amps required for powering the continuous AC load, a shortcut method is to divide the continuous AC load wattage by 12.
  • Page 5 DANGER OF BATTERY EXPLOSION – INSTALL A FUSE Battery banks can deliver very high levels of current that can vaporize metal, start fires and cause explosions. COSUPER recommends installing one ANL type fuse and fuse holder close to the positive battery bank terminal. This fuse protects the batteries from accidental DC cable shorts, which can cause batteries to explode.
  • Page 6: Mounting Instructions

    High AC input voltage from the generator Load generator down with a heavy load; a generator Turn generator output voltage down Remove the loads Applying specific loads such as electrical *Noise from transformer/case heater CCT series Issue: 6 - 07/11/16 © COSUPER ENERGY LIMITED...
  • Page 7 A. Yes. CCT’s pure sine wave output is suitable for medical equipment and sensitive electrical appliances. They allow you to watch television without static, operate computers and gaming consoles and run fluorescent lights. CCT series Issue: 7 - 07/11/17 © COSUPER ENERGY LIMITED...
  • Page 8: Specification

    FCC part15 Class A, CE( EN55022:2006+ A1: 2007 ) Operating / Storage temp -20- 50 ℃/ -30- 70 ℃ Woking humidity -20- 90% RH Weight(Kg/Ib) 17/ 37 20/ 44 455*250*185/ Dimension(mm/in) 18*10*7 CCT series Issue: 8 - 07/11/17 © COSUPER ENERGY LIMITED...
  • Page 9 Install Netility (Windows V4.53), ClientMate(Windows V5.62), SNMPView V5.73 Make the correct connection of TCP/ IP server Run netility, set the following parameter: IP address: 192.168.1.9 Subnet Mask: 255.255.0.0 Gateway: 192.168.1.1 CCT series Issue: 9 - 07/11/17 © COSUPER ENERGY LIMITED...
  • Page 10 6. TCP/ IP MONITOR Go to 192.168.1.9 in your browser CCT series Issue: 10 - 07/11/17 © COSUPER ENERGY LIMITED...
  • Page 11: Warranty

    What does this warranty cover? This Limited Warranty is provided by COSUPER and covers defects in workmanship and materials in your CCT2000 and CCT3000. This warranty period lasts for 18 months from the date of purchase at the point of sale to you, the original end user customer.
  • Page 12 TRADING: COSUPER(SUZHOU) ENERGY TECHNOLOGY CO.,LTD COSUPER ENERGY LIMITED MANUFACTURER: SUZHOU DEVELPOWER ENERGY EQUIPMENT CO.,LTD ADD: NO. 99 GANGTIAN ROAD, SUZHOU INDUSTRIAL PARK, 215121, CHINA TEL: +86 6863 8910 FAX:+86 6863 8916 E-MAIL: INFO@COSUPER.COM WEB: WWW.COSUPER.COM © COSUPER ENERGY LIMITED...
